Cable Wiring Diagrams
This section has information on ADCP cabling. Custom configurations may not be shown here.

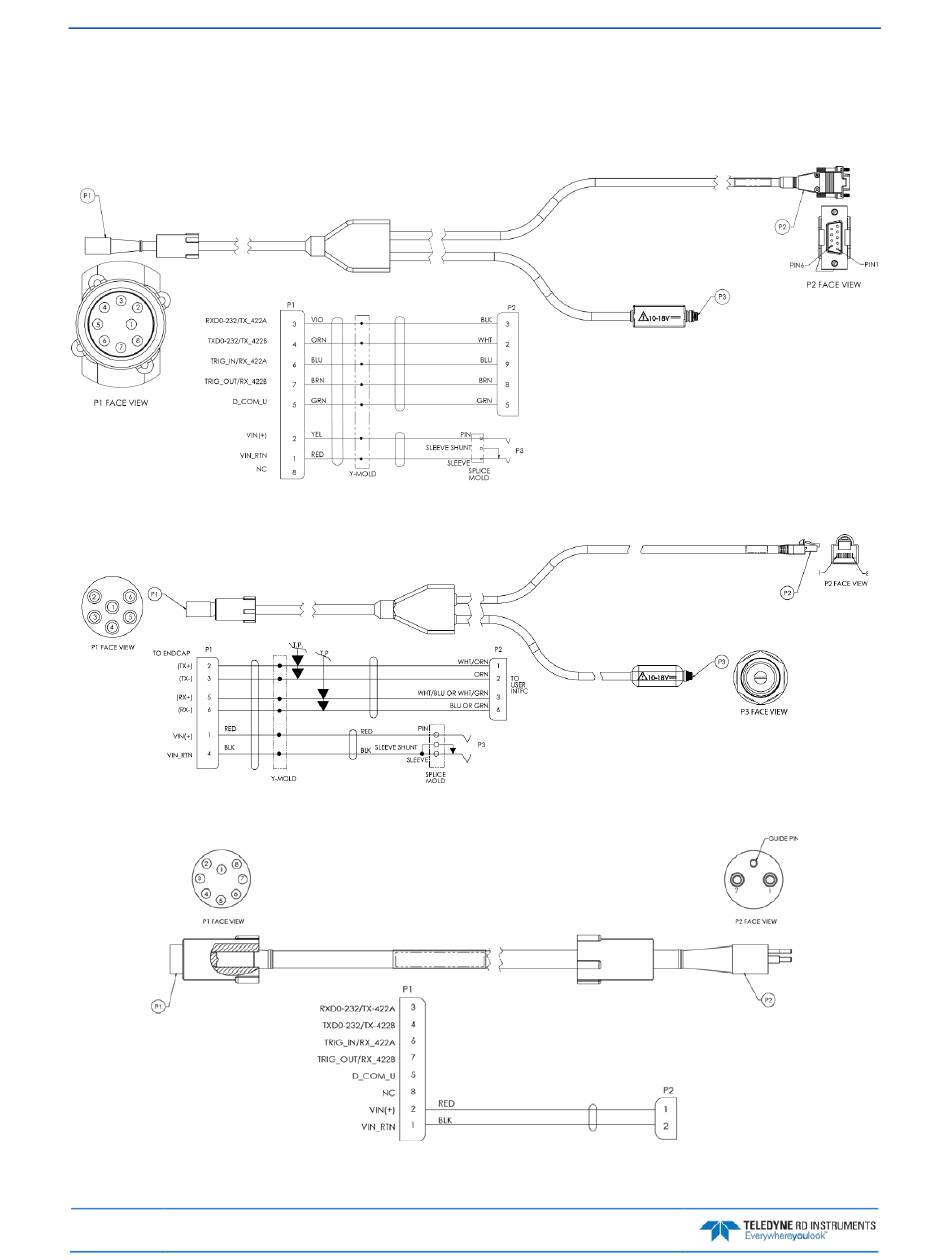

Figure 32.
73D-3112 – Underwater Y-Mold Cable Serial Cable with 8-pin Connector
Figure 33.
73D-3113 – Underwater Y-Mold Cable Ethernet Cable
Figure 34.
73D-3101 – External Battery Case Cable with 8-pin Connector
