ReadyV Log Files

ReadyV creates several log files. Click the corresponding button to save a copy of the log file. The mainte-
nance log files can be opened with any text editor.
Log file name Description
Use the Save maintenance log button to create a text file (*.txt) with the date and time maintenance items
were completed.
The Save diagnostic log is intended for the TRDI engineers to debug issues that may be happening on the
instrument. The log file will be saved in a *.tar format and can be e-mailed to TRDI engineers to aid in
troubleshooting the instrument.
Use the Clear fault log button to clear the fault log of all previous entries.

Using the Review Resources Panel

The Resources panel displays the power and data recorder requirements for the deployment. Click on the
Step 5: Review resources
Duration
– Enter the expected duration of the deployment from the time of the first measurement ping
(either immediately or delayed). This duration does not instruct the Sentinel V ADCP to stop data collec-
tion; it is for estimating the battery usage and storage required. Click the Update button and review the
resources panel.
– Select Battery or Unlimited external as the power source. If Battery is selected, use
Power source
the drop-down list to select the battery type from the list and enter a number in the External battery
Page 70
EAR-Controlled Technology Subject to Restrictions Contained on the Cover Page.
panel to open the Review resources panel as shown below.

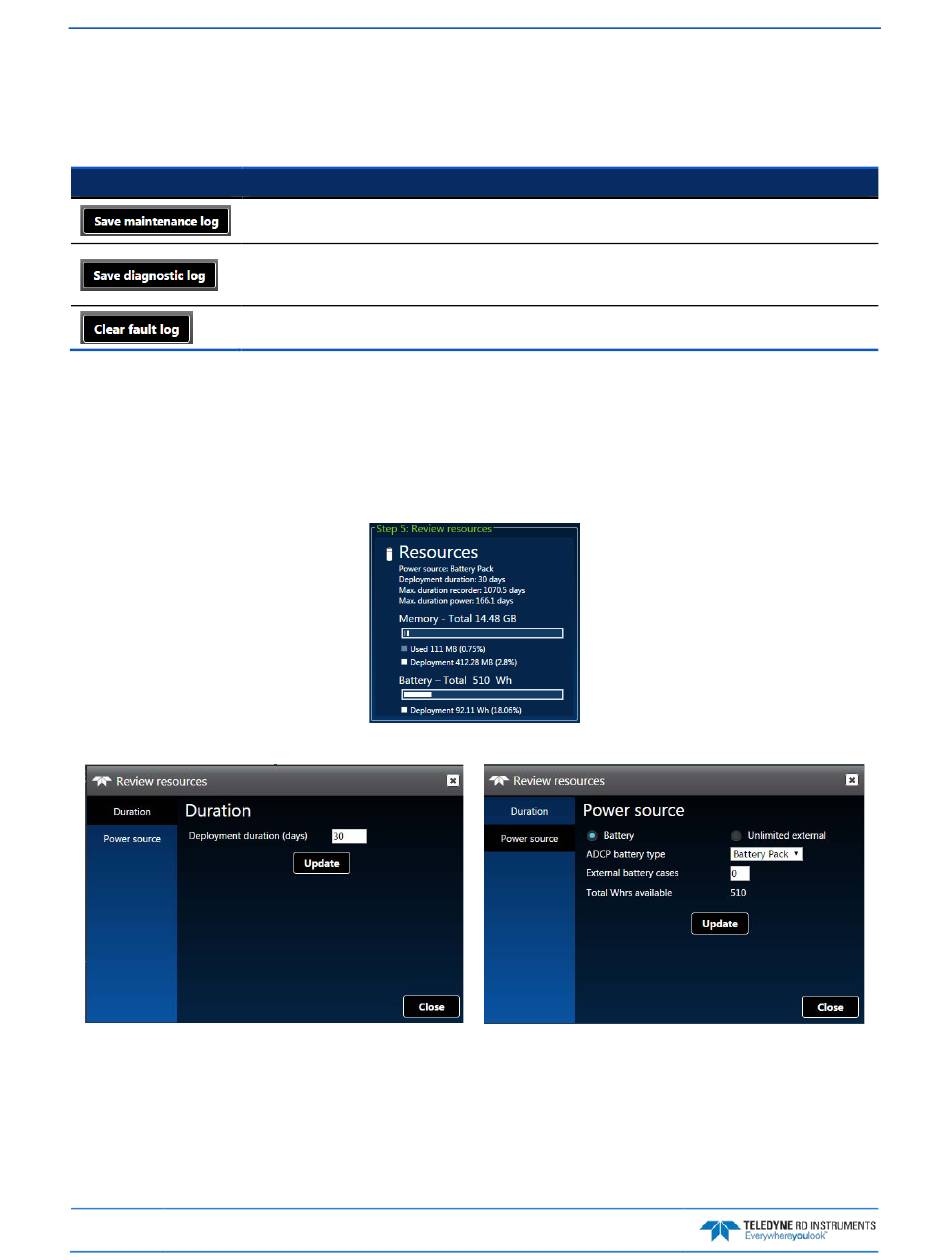

Figure 21. Review Resources Panel
