INSTALLATION MANUAL
Parts List
1
Driver / left side bar
1
Passenger / right side bar
2
Mounting plate, front
2
Mounting plate, rear
2
Half-tooth hex bolt, M12 x 150mm
6
Hex bolt, M12 x 50mm
12
Flat washer,
12mm x 35mm x 2.5mm
4
Flat washer,
15mm x 50mm x 12mm
12
Lock washer, M12
4
Hex nut, M12
Level of Difficulty
Easy

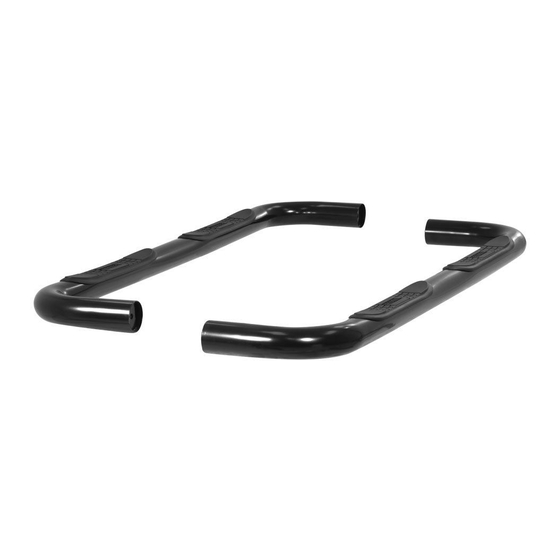

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For gloss black finishes, mild soap may be used to clean the product.
PAGE 1 • 202003-INS-RA • 800.798.0813 • NEED ASSISTANCE?
202003
Scan
for helpful
install tips
Rear
Front
• ARIESAUTOMOTIVE.COM
Advertisement
Table of Contents
Related Manuals for Aries 202003
Summary of Contents for Aries 202003
- Page 1 Do not use any type of polish or wax that may contain abrasives that could damage the finish. For gloss black finishes, mild soap may be used to clean the product. • ARIESAUTOMOTIVE.COM PAGE 1 • 202003-INS-RA • 800.798.0813 • NEED ASSISTANCE?
- Page 2 Congratulations on the installation of your new rear mounting plate up with existing slotted hole in frame ARIES 3" round side bars. With the side bars installed, located in center of rear body mount. periodic inspections should be performed to ensure all mounting hardware remains tight.
