INSTALLATION MANUAL

Parts List

1 Driver / left side bar
1 Passenger / right side bar
2 Mounting bracket, front
2 Mounting bracket, rear
2 Support bracket, front
8 Hex bolt, M8 x 25mm
8 Flat washer, M8 - 24mm x 2mm
8 Lock washer, M8
4 T-bolt, M10 x 50mm
2 Hex bolt, M10 x 35mm
2 Carriage bolt, M10 x 40mm
10 Flat washer, M10 - 27mm x 3mm
8 Lock washer, M10
2 Rectangular washer, M10
8 Hex nut, M10 - 1.5
6 Plastic bolt retainer, M10

Tools Required

Torque wrench Socket, 13mm
Extension Socket, 16mm
Wrench, 16mm Level

Torque Specifications

M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.
Level of Difficulty
Easy

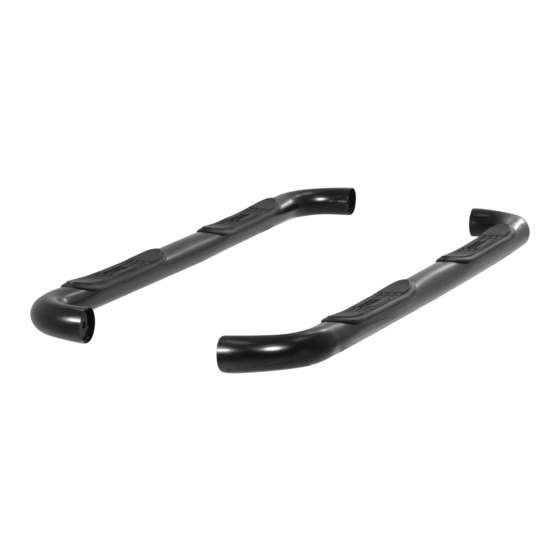

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For gloss black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 202020-INS-RC • 877.287.8634 • NEED ASSISTANCE?
202020
Scan
for helpful
install tips
Rear
Front
• ARIESAUTOMOTIVE.COM
