Aries 2051182 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy

Parts List

1 Driver / left running board
1 Passenger / right running board

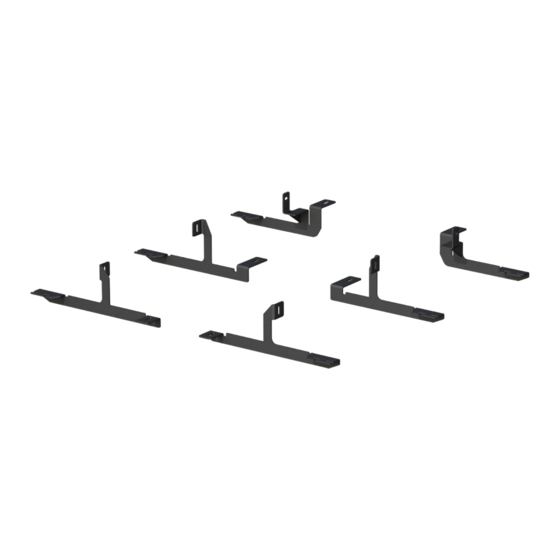

1 Driver / left mounting bracket, front
1 Driver / left mounting bracket, middle
1 Driver / left mounting bracket, rear
1 Passenger / right
mounting bracket, front
1 Passenger / right
mounting bracket, middle
1 Passenger / right
mounting bracket, rear
8 Hex head cap screw, M8
8 Pull-through nut, M8
8 Flat washer, M8
8 Lock washer, M8
2 Bolt plate, M10
2 Plastic bolt retainer, M10
4 Flat washer, M10
2 Lock washer, M10
2 Hex nut, M10 x 1.5
2 Carriage bolt, 1/2"-13 UNC, 1-3/4"
2 Flat washer, 1/2"
2 Lock washer, 1/2"
2 UNC Hex nut, 1/2"-13
2 CM-SP74 Spacer

Tools Required

Ratchet Wrench set
Torque wrench Level
Socket set Utility knife
Socket extension --

Product Registration and Warranty

CURT Group stands behind our products
with industry-leading warranties. Provide
feedback and help us to improve our
products by registering your purchase at:
warranty.curtgroup.com/surveys
ARIESAUTOMOTIVE.COM
Product Photo
AeroTread
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.

Maintenance

To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.

Torque Specifications

M6 bolt
M8 bolt
M10 bolt
M12 bolt
--
Use above torque setting unless otherwise noted
• NEED ASSISTANCE? • 877.287.8634
Front
Running Boards (not included)
™
3 ft-lbs.
7 ft-lbs.
16 ft-lbs.
28 ft-lbs.
--
• 2051182-INS-RA • PAGE 1
2051182
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Rear
