- Page 1 Operator Manual Kangaroo Connect Enteral Feeding Pump...
- Page 2 Thank you for purchasing the Kangaroo™ Connect enteral feeding pump system. With proper care, this system will provide you with years of precision service. Table of Contents Section 1 Pump Overview .................3 Section 2 Safety and Warnings .................6 Section 3 User Interface ..................7...
-
Page 3: Press Once To Power On
The Kangaroo Connect enteral feeding pump is intended for hospital and acute care settings, as well as for long term and home care use. It is intended to be used in both stationary and ambulatory conditions. - Page 4 Wireless Features Wireless Safety The wireless feature of the Kangaroo Connect pump is initially disabled unless activated by a specific type of feeding set. Through the use of a wireless enabled Kangaroo Connect pump and a communications hub, clinicians will be provided...
- Page 5 Pump data is encrypted at the pump before transmission to the WCH or WiFi module. At the WCH or WiFi module, the data is decrypted and then re-encrypted via AES before transmission to the Kangaroo Connect Portal. Table of Contents...
- Page 6 In some cases, electric shock can be fatal. 6. Use only Kangaroo connect feeding sets with this device. This pump is 17. Caution: Ensure buzzer hole is unobstructed during designed to be incompatible with other feeding sets. Danger: Use of other...
-
Page 7: The Pump
Section 4 - Symbols for additional safety information. be guaranteed. 26. This device is designed and tested to minimize the 38. The Kangaroo Connect WCH and WiFi/Ethernet Module are not intended to effects of uncontrolled electromagnetic interference be ambulatory. and other types of interference from external sources. -
Page 8: The Pump
LCD color screen’s silence the alarm. backlighting. The brightness setting 2. Pressing this button reactivates a can be adjusted using the + or previously acknowledged alarm. - buttons. 3. Wireless Signal Strength Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 8... - Page 9 24 hours 122°F 50°C Non-ionizing Temperature limitations Cellular Signal Strength electromagnetic radiation 32°F 0°C 122°F 50°C Avoid temperature extremes NRTL Mark -13°F -25°C CE Mark Keep away from sunlight 0123 Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 9...
-
Page 10: The Pump
AC power adapter. The pump can provide remote communications if one of the wireless accessories (either the WCH or WiFi module) is installed along with the pump, and a Kangaroo Connect ENtelliSet Feeding Set is being used. The pump and WCH or WiFi... -
Page 11: The Pump
The WCH is designed to work with the Kangaroo Connect pole clamp and Kangaroo Connect power adapter that are packaged with the pump. The WCH may also be powered using the Kangaroo Connect car charger. If it is desired to have the WCH powered or attached independent from the pump, contact Customer Support to order additional accessories. - Page 12 The WiFi/Ethernet module shall be packaged with its own AC power adapter, CAT5 cable and Gateway quick start guide. Follow the directions provided in the quick start guide to connect and configure the WiFi module for use. Note: The Kangaroo Connect WCH is not intended to be ambulatory. Indicator Light Light...
-
Page 13: The Pump
Load a feeding set on the pump to continue. to continue. Step 5: To load the cassette portion of the feeding set onto the pump, follow the animated instructions on the screen. Cassette Loading Sequence Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 13... -
Page 14: The Pump
Press Adjust Rate to enter the on either button to accelerate the begin feeding. Once started, you feeding rate. numbers. Press OK when finished. must press the Pause button to change the feed rate. Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 14... -
Page 15: Section 4 Symbols
To disable the Lock Screen so the buttons can be re-activated, press and hold the The screen should then appear as Unlock Screen button for 5 seconds. seen above. The buttons will now be re-enabled. Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 15... -
Page 16: The Pump
The pump does not require periodic calibration. It is recommended to conduct a performance test every 2 years, or as recommended by facility protocol. The certification procedure requires access to the Biomed Menu and should be performed by appropriate personnel. Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 16... - Page 17 Covidien Factory Service. Wipe down the pump with a paper towel moistened with the cleaning solution, To arrange for Covidien Factory Service in the US, call removing all visible soil. Use a brush to remove soil from hard to reach crevices.
-
Page 18: Alarm System
LEDs all properly indicate a Feed Bag Empty condition Caution: To allow proper operation of audible alarms, avoid blocking or obstructing the series of buzzer holes located in the back of the pump. Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 18... -

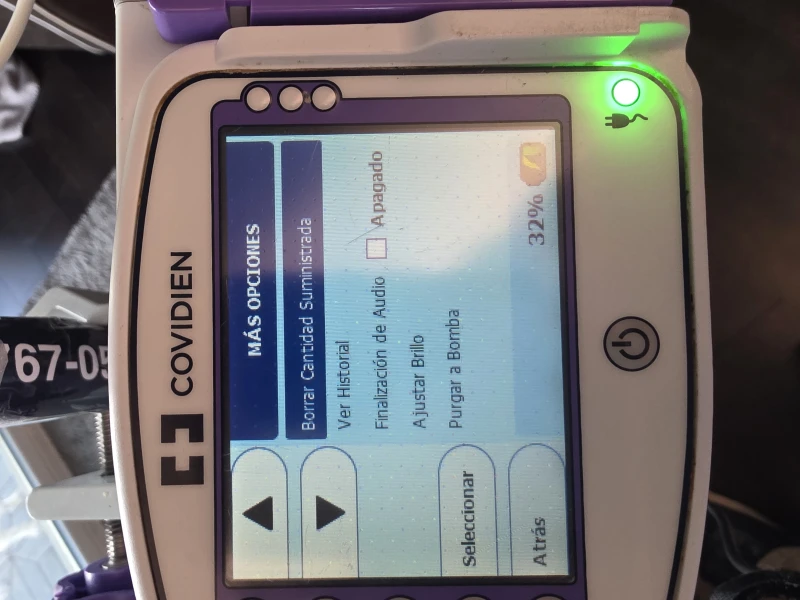

Page 19: More Options
This often is needed if the pump was temporarily interrupted and the user wants to complete the feed that they started with. If needed, press Restart Bolus or Restart Dose if you are beginning a new, full feeding regimen. Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 19... -
Page 20: Section 8 Cleaning
50 mL/hr. If cleaning of the rotor and rotor shaft does not resolve this error, press Power Off to stop operation of the pump and put a different pump into service. Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 20... - Page 21 Continue to restart the feeding. If the error still cannot be resolved, press Power Off to stop operation of the pump and put a different pump into service. Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 21...
-
Page 22: Specifications
Accuracy testing is run at a room temperature of 22°C ± 2°C (72°F ± 3°F), using a new Kangaroo Connect feeding set for no longer than the recommended hours of usage. Confirmation of accuracy is conducted per the IEC 60601-2-24 standard for Infusion Devices, as applicable for enteral feeding. -
Page 23: Pump Inactive
Caution: Use only Kangaroo Connect power adapter when powering the WCH or the pump with power from an A/C outlet. Patient Tube Blocked The specifications for the Kangaroo Connect power adapter are as follows: Cassette Dislodged • Input: 100-240 V~, 50-60 Hz, 1.0A (1.0 A – 0.5 A) Cassette Error •... -
Page 24: Section 11 Customer Service
WCH or WiFi module with the pump. Pack the instrument carefully and ship the insured parcel to your local service center: United States Phone: 1-800-448-0190 Canada Phone: 1-877-664-8926 Outside of U.S. and Canada Phone: +44-1869-328065 Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 24... -
Page 25: Wireless Charging Hub Button
Remove the old parts and discard according to local disposal regulations. Purchase a Covidien Kangaroo cassette latch clip kit. Take the new clip and place over the two brass inserts in the pump’s clip pocket. Use the new screws from the retention plate kit to screw the new clip in place. -
Page 26: Section 13 Service Part Numbers
Section 13 — Service Part Numbers To place an order for parts, or if technical assistance is required, please call Customer Service. The Kangaroo Connect pump contains a limited number of parts that can be repaired. Visit our web site at: www.covidien.com... -
Page 27: Section 14 Warranty
WCH and WiFi module will be free of defects in materials and workmanship, under normal use, for three (3) years from the date of shipment from Covidien. This Limited Warranty as applied to pump batteries and power cords is limited to one (1) year from the date of shipment from Covidien for all pumps. -
Page 28: Section 15 Electromagnetic Conformity Declaration
Section 15 — Electromagnetic Conformity Declaration The Kangaroo Connect pump, WCH and WiFi module has been built and tested according to UL 60601-1 (2nd Edition), ES60601-1(3rd Edition), CAN/CSA C22.2 No. 60601-1-08, and EN60601-1-2 Standards. The pump, WCH and WiFi module are intended for use in the electromagnetic environment specified below. The user of the pump should assure that it is used in such an environment. - Page 29 The Kangaroo Connect pump, WCH and WiFi module are intended for use in the electromagnetic environment specified below. The user of the Kangaroo Connect pump, WCH and WiFi module should assure that it is used in such an environment. Immunity Test...
- Page 30 TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Kangaroo Connect enteral feeding pump is used exceeds the applicable RF compliance level above, the Kangaroo Connect pump, WCH and WiFi module should be observed to verify normal operation.
- Page 31 Kangaroo Connect pump, WCH and WiFi module The Kangaroo Connect pump, WCH and WiFi module is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Kangaroo Connect pump, WCH and WiFi module can help prevent...
- Page 32 The pair of projections sticking out from the pump in a “U-shaped” configuration. These projections sit under the cassette and monitor the tubing on either side of the rotor when loaded. Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 32...
- Page 33 The percent variation of flow rate accuracy over an observation period may be shown with a trumpet graph. Following IEC 60601-2-24, trumpet graphs of the mean flow rate are provided. Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 33...
-
Page 34: Table Of Contents
Appendix A - Accuracy Graphs 23rd Hour Curve on Accuracy Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 34... - Page 35 Appendix A - Accuracy Graphs Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 35...
- Page 36 Ambient Temperature Effect on Accuracy of Water and Low Density Formulas (≤ 1.07 g/mL) Operating Temperature (°C) Ambient Temperature Effect on Accuracy of Water and High Density Formulas (> 1.07 g/mL) Operating Temperature (°C) Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 36...
- Page 37 Single Fault Condition Effect on Accuracy In the event of a single fault short circuit in the pump electronics, a maximum bolus of 3.33 mL of extra fluid delivery may occur. Table of Contents Kangaroo™ Connect Enteral Feeding Pump | 37...
- Page 38 Sensor Input: Magnetic Sensor The pump will alarm for Cassette Dislodged when it a low voltage The Kangaroo connect pump has alarms that are broken into three level is received from the magnetic sensor. different priorities: High Priority (Red Blinking Indicator Light), •...
-
Page 39: Pump Rotor 1
Appendix C - Fluid/Occlusion Detection Overview The Kangaroo Connect Enteral Feeding Pump uses dual ultrasonic sensors for fluid detection. One sensor is positioned on the upstream side of the rotor and the other sensor is positioned on the downstream side of the rotor. - Page 40 Identification of a substance that is not contained Manual No. HP110521 or present within the product or packaging. COVIDIEN, COVIDIEN with logo, and Covidien logo are U.S. and internationally registered trademarks of Covidien AG. Follow instructions for use. ™*Trademark of its respective owner.
