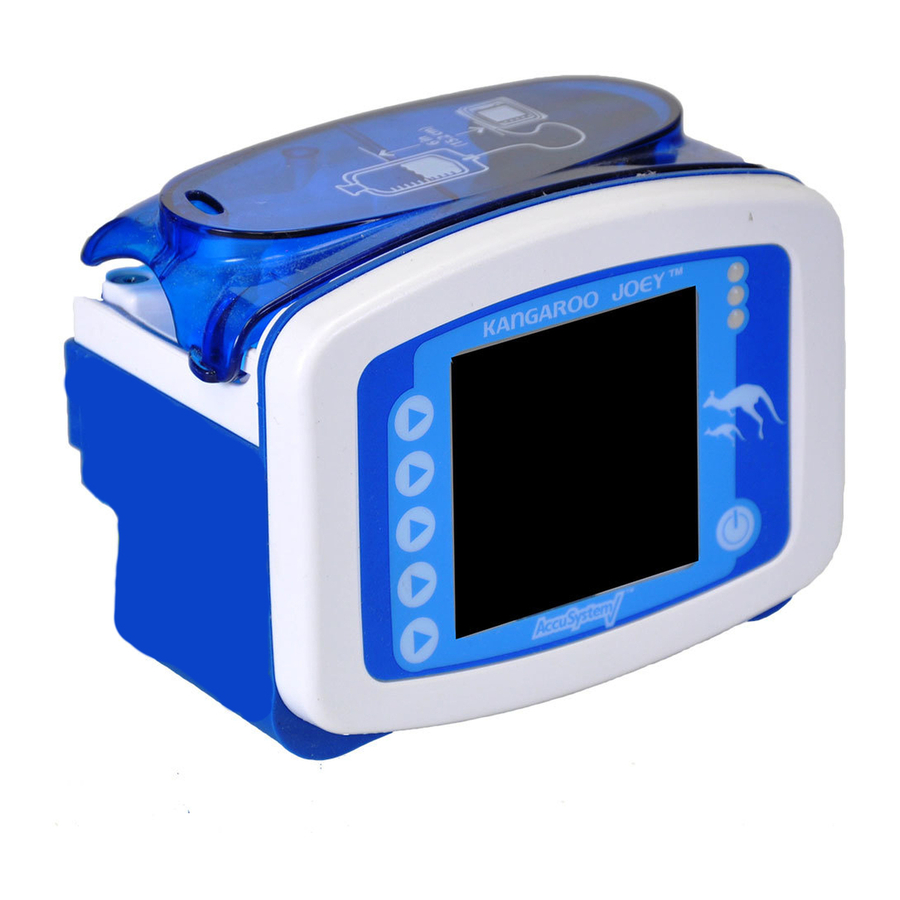

- Page 1 Operating Manual Kangaroo Joey Enteral Feed and Flush Pump with Pole Clamp, Programmable...
-
Page 2: Table Of Contents
Thank you for purchasing the Kangaroo™ Joey Enteral Feed and Flush Pump with Pole Clamp. With proper care, this device will provide you with years of precision service. Table of Contents Page Section I — General Information ................1 Section II —... - Page 3 ............... . 24 Kangaroo™ Joey Enteral Feed and Flush Pump with Pole Clamp...
- Page 4 ........... 35 This product contains software solely owned by Covidien. Covidien grants the user a non-exclusive, limited license to use the software according to the operating instructions.
-
Page 5: Section I — General Information
Section I – General Information The Kangaroo Joey enteral feed and flush pump with pole clamp is a simple-to-use, precision enteral feeding pump. It is easily programmed to provide patients with either continuous or intermittent feeding, and can provide automatic flushing capability when used with Kangaroo™... - Page 6 A/C Adapter Port Pole Clamp Attachment Point Battery Door (Serial I/O Port is BEHIND Battery Door) Back Figure 1A. Kangaroo Joey enteral feeding pump features, front and rear views. Kangaroo™ Joey Enteral Feed and Flush Pump with Pole Clamp Table of Contents...
-
Page 7: Section Ii — Safety And Warnings
Kangaroo Joey feeding pump. Use only the supplied power adapter to charge your Kangaroo Joey feeding pump from an AC power source. Use only Kangaroo Joey enteral feed and flush pump with pole clamp A/C power adapter (with built-in A/C adapter) with pump. - Page 8 17. Used feeding sets should be disposed of in accordance with current hospital procedure or local disposal guidelines. 18. The Kangaroo Joey enteral feed and flush pump with pole clamp has been programmed to optimize accuracy by taking into account the viscosity of formula. Formula that has been diluted and has a low viscosity will tend to deliver like water and thus deliver to the high side of the accuracy specification.
- Page 9 39. Use only commercially available pre-packed or commercially prepared feeding solutions prescribed by a licensed health care provider, dietitian or nutritionist. Do not use homemade blenderized or liquidised foods or other non-prescribed, non-commercially available feeding solutions. Kangaroo™ Joey Enteral Feed and Flush Pump with Pole Clamp Table of Contents...
-
Page 10: Section Iii — Icon Identification
Indicates that EZ Pump Mode feature is activated. Volume to be Delivered Indicator Indicates that a VTBD has been programmed. Keep Tube Open Indicates that Keep Tube Open feature is in operation. Kangaroo™ Joey Enteral Feed and Flush Pump with Pole Clamp Table of Contents... -
Page 11: Attaching The A/C Power Adapter
A new battery pack will provide approximately 18 hours of service before needing to be recharged. Attaching Pole Clamp The Kangaroo Joey enteral feed and flush pump with pole clamp can be attached to a vertical pole using the pole clamp which is included with the pump. -
Page 12: Quick Start
A/C Power Operation Plug the Kangaroo Joey enteral feed and flush pump with pole clamp into an A/C power outlet for normal operation. When the pump is not plugged in, or if A/C power is interrupted, a built-in rechargeable battery will run the pump. -
Page 13: Battery Power Operation
Service, Section XI, to replace the battery pack if battery life degrades. Note: The Kangaroo Joey enteral feed and flush pump with pole clamp will not operate unless an approved Kangaroo Joey enteral feed and flush pump with pole clamp battery pack is installed in the pump. -
Page 14: Loading Pump Sets
Loading Pump Sets The Kangaroo Joey enteral feed and flush pump with pole clamp will indicate LOAD A SET in the screen’s status line if a pump set is not installed. A blinking icon of a pump set will also appear in the upper left corner of the screen. -
Page 15: Prime Pump
Prime Pump The Kangaroo Joey enteral feed and flush pump with pole clamp may be primed automatically with a single button push, including the flushing line if a feed & flush set is loaded. The pump can also be primed in a more interactive method using the hold-to- prime feature. -
Page 16: Feed & Flush Pump Sets
EZ Pump Mode Option The EZ PUMP MODE option is a limited, CONTINUOUS MODE only setting of Kangaroo Joey enteral feed and flush pump with pole clamp. It feeds non-stop (no VTBD option) at a rate 0-400mL/hr as defined by the user until manually stopped. It has no BOLUS, FLUSHING, RUN MODE SCREEN LOCK, or AUTORESUME capability and displays no HISTORY information. -
Page 17: Selecting Ez Pump Mode
Selecting Continuous or Intermittent Feed Mode The Kangaroo Joey enteral feed and flush pump with pole clamp can be programmed to feed continuously or intermittently. The continuous feeding mode will deliver the enteral nutrition at a steady rate, either until the programmed volume has been delivered or until the supply has been exhausted. -
Page 18: Continuous Mode Feeding
The pump will automatically limit flushing settings which exceed pump capabilities to deliver. Caution: The Kangaroo Joey enteral feed and flush pump with pole clamp flushes at a rate of 1960 mL/hr (32.7 mL/minute). Use care when programming the flush volume so that it matches the patient’s need. -
Page 19: Intermittent Mode Feeding
BOLUS MAX in the BOLUS RATE menu, Figure 13B, to program the BOLUS MAX mode. The feeding rate for BOLUS MAX is 999 mL/hr. Figure 13E. Setting the time interval between starts of bolus. Kangaroo™ Joey Enteral Feed and Flush Pump with Pole Clamp Table of Contents... -
Page 20: Intermittent Mode Flushing
Time Interval. The Kangaroo Joey enteral feed and flush pump with pole clamp will only run when a pump set is properly loaded and the necessary feeding parameters have been programmed. For a feed & flush set, the flushing parameters do not have to be set for the pump to begin operating. -
Page 21: Keep Tube Open - Kto
Lock Screen Feature The Kangaroo Joey enteral feed and flush pump with pole clamp can be set to RUN and then Figure 15B. KTO. be locked out from unintended use. While the LOCK SETTINGS feature prevents changes only to the input parameters, the LOCK SCREEN feature will lock out any button presses, including RUN or HOLD, except power off. -
Page 22: Hold
Resume In __ Minutes (Not Available in EZ Pump Mode) Press “RESUME IN __ MIN” once to immediately place the Kangaroo Joey enteral feed and flush pump with pole clamp into a 30-minute resume running mode. Pressing the RESUME IN __ MIN button again will cyle the “resume in” time back to zero. No other input is needed to start the countdown, as the time immediately counts down after the 30-minute value is reached. -
Page 23: Flush Now
See subsection “Selecting Continuous or Intermittent Feed Mode” for more information. DONE in the MORE OPTIONS menu to exit the menu. Press Kangaroo™ Joey Enteral Feed and Flush Pump with Pole Clamp Table of Contents... -
Page 24: Biotech Menu
To get the BioTech screen, press the power button to start the pump, and press and hold the top button while the startup sequence (kangaroo icon “hops” across the screen) executes. You must be pressing the top button at the end of the sequence in order to access the BioTech menu. -
Page 25: System Performance Tests
Note: The amount of water collected in 30 minutes will be half of the value programmed for the hourly flow rate, within ± 7%, or 0.5 mL, whichever is larger. Since feeding accuracy of the Kangaroo Joey enteral feed and flush pump with pole clamp is based upon formula and not water, a 4% accuracy shift should be applied when testing the Kangaroo Joey enteral feed and flush pump with pole clamp using water. -
Page 26: Section Vii — Cleaning
A/C power adapter or leakage into the pump interior during cleaning. General Cleaning Directions Cleaning of Kangaroo Joey enteral feed and flush pump with pole clamps must be performed as follows: Caution: Disconnect pump from AC power source before cleaning. After cleaning, do not connect to AC power source until pump and A/C power adapter are thoroughly dry. - Page 27 This pump must be periodically tested to assure proper functioning and safety. The recommended service interval is every two years. Testing may be done at the user’s Biomedical Engineering Department, an outside service, or by Covidien Factory Service. To arrange for Covidien Factory Service in the US, call 1-800-962-9888.
-
Page 28: Section Viii — Battery Replacement
To assure the safe and reliable operation of this pumping system, do not attempt to operate without an approved battery pack installed in the pump. Note: The Kangaroo Joey enteral feed and flush pump with pole clamp will not operate unless an approved Kangaroo Joey enteral feed and flush pump with pole clamp battery pack is installed in the pump. -
Page 29: System Error
Section IX — Error/Warning/Informational Screens and Troubleshooting For operational errors, the Kangaroo Joey enteral feed and flush pump with pole clamp display will show the error indicator icon, with specific information regarding the error condition, and will sound the alarm. -
Page 30: Hold Error
Figure 29. Flow Error screen. POWER to stop operation of the pump and put a If the error still cannot be resolved, press different pump into service. Kangaroo™ Joey Enteral Feed and Flush Pump with Pole Clamp Table of Contents... -
Page 31: Pump Set Dislodged Error
A red light status indicates a critical pump error. The screen will show one of the following error messages: SYSTEM ERROR, PUMP SET DISLODGED, or ROTOR ERROR. Kangaroo™ Joey Enteral Feed and Flush Pump with Pole Clamp Table of Contents... -
Page 32: Specifications
7% or 0.5 mL/hr, whichever is larger, with top of the fluid column at 15.24 cm (6”) ± 0.76 cm (0.3”) above the top of the closed pump door, at a room temperature of 22°C ± 2°C (72°F ± 3°F), using a new Kangaroo Joey feeding set for no longer than the recommended 24 hours of maximum usage. - Page 33 Soft-Touch Coating: Latex-Free Thermoplastic Urethane Housing: Polyester/Polycarbonate blend Power Use AC adapter for wall outlet usage. Pump operates on 5V DC, 2.4 A. Use only Kangaroo Joey enteral feed and flush pump A/C power adapter. Nominal Voltage: 3.7V DC Max Current: 2000 µA Battery New, fully charged Lithium Ion Battery Pack delivers ≥...
-
Page 34: Symbols On Pump And Accessories
White tightened. If applicable, assure the transition Authorized representative in the Stepped cap is securely tightened. Keep away from sunlight Connector European Community Enteral Feed Catheter Kangaroo™ Joey Enteral Feed and Flush Pump with Pole Clamp Table of Contents... -
Page 35: Section Xi — Customer Service
Certain replacement items, as listed in Section XII – Service Part Numbers, are available from the service centers listed below. All service personnel must be properly trained and qualified with operation of the Kangaroo Joey enteral feed and flush pump with pole clamp. Improper service may impair operation of the pump. -
Page 36: Top Door Enclosing Pump Set Loading Area
The following maintenance items/parts can be replaced by the customer on the Kangaroo Joey enteral feed and flush pump with pole clamp. See Section XIII for Service Part Numbers and Section XI for contacting Customer Service. -
Page 37: Accessory Items
To place an order for parts, or if technical assistance is required, call customer service. The Kangaroo Joey enteral feed and flush pump with pole clamp contains a limited number of serviceable parts, Figure 36. User maintenance is to be performed only by appropriately qualified technical personnel. -
Page 38: Section Xiv — Warranty
“Pumps”) will be free of defects in materials and workmanship, under normal use, for three (3) years from the date of shipment from Covidien. This Limited Warranty as applied to pump batteries and power cords is limited to one (1) year from the date of shipment from Covidien for all pumps. -
Page 39: Section Xv — Electromagnetic Conformity Declaration
Section XV – Electromagnetic Conformity Declaration The Kangaroo Joey enteral feed and flush pump with pole clamp has been built and tested according to UL60601-1, EN60601-1:2006, CAN/CSA C22.2 No. 60601-1-08, and EN60601-1-2 Standards. The Kangaroo Joey enteral feed and flush pump with pole clamp is intended for use in the electromagnetic environment specified below. - Page 40 The Kangaroo Joey enteral feed and flush pump with pole clamp is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Kangaroo Joey enteral feed and flush pump with pole clamp can help prevent electromagnetic interference by maintaining the minimum distance between portable and...
- Page 41 The Kangaroo Joey enteral feed and flush pump with pole clamp is intended for use in the electromagnetic environment specified below. The customer or the user of the Kangaroo Joey enteral feed and flush pump with pole clamp should assure that it is used in such an environment.
- Page 42 Manual No. HP108885 U.S. Patents: www.covidien.com/patents COVIDIEN, COVIDIEN with logo and Covidien logo are U.S. and internationally registered trademarks of Covidien AG. ™*Spray Nine is a trademark of Spray Nine Corporation ™*pHisoHex is a trademark of The Mentholatum Co. ™*Hibiclens is a trademark of Regent Medical Ltd.
