- Page 1 Adam Equipment LHS/LHSa SERIES Software version 1.2 © Adam Equipment Company 2017...
-
Page 2: Table Of Contents
OPERATION ......................5 SAFETY INSTRUCTIONS ................. 5 BATTERY OPERATION ..................6 BASIC OPERATIONS ..................6 REMOTE CONTROL UNIT ................8 USER PARAMETERS ..................8 CALIBRATION ...................... 9 PARTS LIST ....................... 10 WARRANTY INFORMATION ..................12 © Adam Equipment Company 2017... -

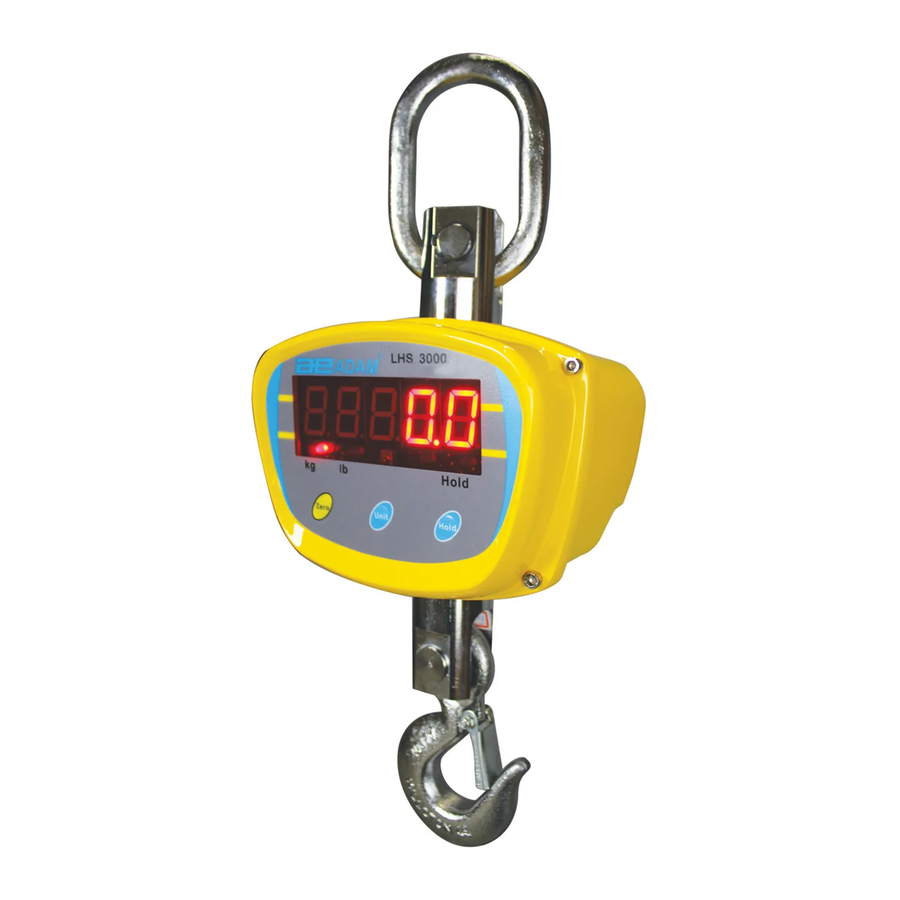

Page 3: Introduction
INTRODUCTION 2.1 FEATURES The LHS/LHSa Series are a range of heavy‐duty lower capacity crane scales The main features include: Easy Operation & Rugged construction 25mm bright red LED display enabling a good viewing angle. 360 degree rotary safety hook and support ring design Overload safety up to 125% of model capacity Selectable weighing units of kg, Lbs and Newtons (Newtons not available for “a” models) Standard and Peak Hold feature Internal rechargeable battery fitted as standard Auto power off after 30 minutes of non use 6Vdc 600ma battery charger Strong Die cast Alluminium housing Infrared remote control © Adam Equipment Company 2017... -
Page 4: Technical Specifications
2.2 TECHNICAL SPECIFICATIONS Model No Capacity Division Model No Capacity Division LHS‐500 500kg 0.1kg LHS‐1000a 1000lb/500kg 0.2lb/0.1kg LHS‐1500 1500kg 0.2kg LHS‐3000a 3000lb/1500kg 0.5lb/0.2kg LHS‐2000 2000kg 0.5kg LHS‐ 4000a 4000lb/2000kg 1lb/0.5kg © Adam Equipment Company 2017... -
Page 5: Safety Notice
NOTICE The limit stated below is the Ultimate Overload Limits of the scales. Adam Equipment Co. Ltd. Its directors, owners and affiliated companies and organisations cannot be held liable for any resulting damage or injury sustained as a result of the machines being used in excess of their stated capacities or ultimate overload limits. Model No. LHS 500/1000a LHS 1500/3000a LHS 2000/4000a Max 500kg/1000lb 1500kg/3000lb 2000kg/4000lb capacity Overload 625kg/1250lb 1875kg/3750lb 2500kg/5000lb capacity NOTICE: Do not use the scales if any parts are bent or loose or show signs of damage or wear. Refer to the user manual. PANEL DESCRIPTION © Adam Equipment Company 2017... -
Page 6: Display Indications With Led
Press the [Hold] key again to cancel the [Hold] function. 2.5 DISPLAY INDICATIONS WITH LED The LED will light up in the weighing unit that is being used to Kg lb N indicate when the weight is stable. Hold Hold Indicator 3.0 OPERATION 3.1 SAFETY INSTRUCTIONS Read this manual carefully before you operate the SHS Crane Scale. Unpack the Crane Scale carefully from the packaging. Attach it to your hoist or equivalent existing equipment securely at the ground level to the support ring in the upright position. Make sure that the equipment to which the scale is attached is in proper condition. The operator should be trained for its safe operation. Carry out regular visual inspection for any damage or wear and tear on parts. The split pins in particular at the hook and eyebolts, as well as the inner wall of the hook © Adam Equipment Company 2017... -
Page 7: Battery Operation
The scale will automatically power down after 30 minutes of non use to further protect the battery. To replace the battery, turn the locking screw on the battery cover 90 degrees clockwise and lift open the cover. Disconnect and remove the old battery and replace with a new one. Contact your dealer for a replacement battery. © Adam Equipment Company 2017... -
Page 8: Basic Operations
BASIC OPERATIONS Power on and off Press the [ON/OFF] button to turn the scale on or off. The display on the scale will show the model capacity then countdown from 9 to 0 before displaying zero weight. Zero the scale Press the [Zero] key so that the display shows zero. Change the weighing Unit Press the [Unit] key to change the weighing unit Standard Hold (setting 1) When the reading may not be perfectly stable or you cannot view a reading easily you can press the [Hold] key to lock it. The reading will be locked and also flash at the point you press the [Hold] button enabling you to view it when you can. The Hold LED will also light up and once you have noted the reading a press of the [Hold] key will return the scale to the normal weighing mode. Peak Hold (setting 0) Peak Hold is the highest weight reading registered by the scale when a weighing takes place. Press the [Hold] key when the display is at zero and the Hold LED will flash which denotes Peak Hold has been activated. When weight/force is applied to the scale the display will also flash and lock the highest recorded weight of that weighing process. This value and the Hold LED will remain flashing on the display until the [Hold] key is pressed again at which point the scale will return to normal weighing mode displaying the current weight on the scale. Press [Hold] again to perform another Peak Hold weighing at any time. © Adam Equipment Company 2017... -
Page 9: Remote Control Unit
PARAMETER SETTING TABLE FUNCTION DESCRIPTION DEFAULT Sets buzzer EE 1 0: Disable 1: Enable Sets the Hold function 1 0: Peak 1: Standard Sets the Stable function 1 0: Disable 1: Enable Sets weighing unit on power up 0: kg 1: Lb’s 0 2: Newtons(Newtons not available for “a” models) Sets save: YES 0 0: Not saved 1: Save new settings © Adam Equipment Company 2017... -
Page 10: Calibration
Load this mass onto the hook and when the scale is stable press the [Zero] key. The display shows ‘HOLD’. After a few seconds, the calibration is complete and the scale returns to normal weighing showing the value of the calibration mass as used. ** To calibrate in Lbs make sure that the scale is Lbs mode before commencing, to calibrate in Kg make sure the scale is in Kg mode before commencing. © Adam Equipment Company 2017... -
Page 11: Parts List
LHS 6VDC @ 600ma POWER/CHARGER UNIT AUSTRALIA 7.00.4.0.0111 LHS 6VDC @ 600ma POWER/CHARGER UNIT SA 7.00.4.0.0087 LHS 6VDC @ 600ma POWER/CHARGER UNIT UK 7.00.4.0.0088 LHS 6VDC @ 600ma POWER/CHARGER UNIT EU 7.00.4.0.0090 LHS REMOTE CONTROL UNIT © Adam Equipment Company 2017... - Page 12 © Adam Equipment Company 2017...
- Page 13 10000 kg / 20000 lb 12500 kg / 25000 lb The limits stated above are the ultimate overload limits of the scales. Adam Equipment Co. Ltd. its directors, owners and affiliated companies and organizations cannot be held liable for any resulting damage or injury sustained as a result of the machines being used in excess of their stated maximum capacity, capabilities and ultimate overload limits.
-
Page 14: Warranty Information
WARRANTY INFORMATION Adam Equipment offers Limited Warranty (Parts and Labour) for the components failed due to defects in materials or workmanship. Warranty starts from the date of delivery. During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or Adam Equipment Company. The company or its authorised Technician reserves the right to repair or replace the components at any of its workshops depending on the severity of the problems. However, any freight involved in sending the faulty units or parts to the service centre should be borne by the purchaser. The warranty will cease to operate if the equipment is not returned in the original packaging and with correct documentation for a claim to be processed. All claims are at the sole discretion of Adam Equipment. ... - Page 15 country or region of operation, including electrical safety, interference and energy efficiency. As we often update adaptor products to meet changing legislation it is not possible to refer to the exact model in this manual. Please contact us if you need specifications or safety information for your particular item. Do not attempt to connect or use an adaptor not supplied by us. © Adam Equipment Company 2017...
- Page 16 © Copyright by Adam Equipment Co. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment. Adam Equipment reserves the right to make changes to the technology, features, specifications and design of the equipment without notice. All information contained within this publication is to the best of our knowledge timely, complete and accurate when issued. However, we are not responsible for misinterpretations which may result from the reading of this material. The latest version of this publication can be found on our Website. www.adamequipment.com © Adam Equipment Company 2017...
