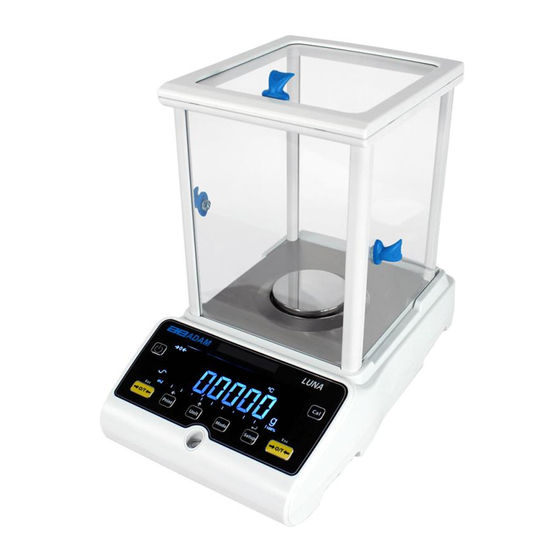

Luna
LAB, LPB, LTB, LBB Series
Operating Manual
For internal ('i') and external ('e') calibration models
© Adam Equipment Company 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Luna LAB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Adam Equipment Luna LAB Series

  • Page 1 Luna LAB, LPB, LTB, LBB Series Operating Manual For internal (‘i’) and external (‘e’) calibration models © Adam Equipment Company 2020...
  • Page 2 © Adam Equipment Company 2020...
  • Page 3: Table Of Contents

      13.6 CALIBRATION SETUP ..................32     13.7 PASSCODES ...................... 32     14.0 ACCESSORIES & SPARE PARTS ..................33  15.0 SAFETY AND MAINTENANCE ....................34  16.0 TROUBLE-SHOOTING ......................35  16.1 TROUBLE-SHOOTING GUIDE................36     © Adam Equipment Company 2020...
  • Page 4 17.0 SERVICE INFORMATION ...................... 38  18.0 BALANCE MENU STRUCTURE ..................... 39  19.0 LANGUAGE TABLE ........................ 42  20.0 WARRANTY INFORMATION ....................43  © Adam Equipment Company 2020...
  • Page 5: Know Your Balance

    KNOW YOUR BALANCE Thank you for selecting the Luna Balance from Adam Equipment. This Instruction Manual will familiarise you with the installation, use, general maintenance etc. of the balance, and will guide you through the various applications. It also covers accessories, trouble-shooting, after sales service information, and other important information.
  • Page 6: Product Overview

     Easy to use, wipe-clean sealed membrane keypad.  Below balance weighing facility (accessory hook required).  Display in a choice of 4 languages – English, German, French & Spanish.  Password protection.  Security locking point. © Adam Equipment Company 2020...
  • Page 7: Product Specifications

    228 x 377 x 333 mm (w x d x h) 9 x 14.8 x 13.1 in e models 5.9 kg / 13 lb 0 oz Weight i models 6.2 kg / 13 lb 10 oz © Adam Equipment Company 2020...
  • Page 8 9 x 14.8 x 8.4 in e models 4.3 kg / 9 lb 8 oz 4.3 kg / 9 lb 8 oz Weight i models 4.7 kg / 10 lb 5.7 oz 4.9 kg / 10 lb 12.8 oz © Adam Equipment Company 2020...
  • Page 9 9 x 14.8 x 8.4 in e models 5.9 kg / 13 lb 0 oz 5.9 kg / 13 lb 0 oz Weight i models 6.4 kg / 14 lb 1.6 oz 6.6 kg / 14 lb 8.8 oz © Adam Equipment Company 2020...
  • Page 10 3.6 kg / 7 lb 14.8 oz 4.6 kg / 10 lb 2.2 4.8 kg / 10 lb 9.3 Weight i models 5.0 kg / 11 lb 0 oz 5.0 kg / 11 lb 0 oz © Adam Equipment Company 2020...
  • Page 11 (w x d x h) Pan Size Square, 185x185 mm Overall Dimensions 228 x 337 x 108 mm (w x d x h) 9 x 14.8 x 4.3 in Net Weight 3.7 kg / 8 lb 2.4 oz © Adam Equipment Company 2020...
  • Page 12: Unpacking The Balance

    Do not place near open windows or air-conditioning vents. Keep the balance clean. Do not stack material on the balances when they are not in use. Avoid sources of static electricity. This can affect measurement accuracy and may damage sensitive electronics. © Adam Equipment Company 2020...
  • Page 13: Setting Up The Balance

    It will turn off if the balance is not stable. Exact zero is shown when the “0“ symbol is visible on the top left of the display area. [display photo changed] © Adam Equipment Company 2020...
  • Page 14: 6.2 Calibration

    When an error is found a displayed message will be shown and the calibration must be done again. If the balance has error messages more than once it is possible the mechanics have been damaged © Adam Equipment Company 2020...
  • Page 15: Display

    When calibration is occurring or about to occur “ti” For a time driven calibration “ºC” When a temperature is shown or a temperature driven calibration is to occur “Net” When a net weight is shown © Adam Equipment Company 2020...
  • Page 16: Keypad

    KEYPAD The keypad has the following keys to operate the balance. [ ] [ ]    © Adam Equipment Company 2020...
  • Page 17: 8.1 Numeric Entry Method

    USB type A socket.  Power input socket. (Required power input is a low-voltage external supply, 18VDC @ 830mA for all models). Accepts concentric barrel plug 11.4mm length X 5.5mm outside diameter X 2.1mm centre diameter. © Adam Equipment Company 2020...
  • Page 18: Operations

    The display show the digits entered as they are set. The active digit will have the “-“ symbol flashing. Make sure to enter the correct passcode to continue. See Section 13.7 for details. © Adam Equipment Company 2020...
  • Page 19: Weighing

    POUNDS Some models 0.00220462 453.59237 CUSTOM Custom Some models As specified As specified It is possible to set the balance to display only grams. Grams will always be one of the units enabled, by default. © Adam Equipment Company 2020...
  • Page 20: Functions

    ” etc. Use the [Up] and [Down] symbol keys to cycle through functions, and press [Setup] to confirm your selection, or press one of the [0/T] keys at any time to return to normal weighing mode. © Adam Equipment Company 2020...
  • Page 21: Parts Counting

    Now press [Setup] to set this weight to be 100%. The display will show  and the sample weight in the last selected unit. After a short pause  will be displayed. © Adam Equipment Company 2020...
  • Page 22: Check Weighing

    Once set, press the [Setup] key to begin check weighing.  Pressing [Mode] and then [Esc] key returns to normal weighing. © Adam Equipment Company 2020...
  • Page 23: Animal (Dynamic) Weighing

    Place the item on the pan. The animal weighing test will begin automatically. After the pre-configured delay and test time have elapsed (see section 10.4.4.3 on Dynamic HOLD Weighing Setup Parameters), the “ ” symbol and the result will be displayed. © Adam Equipment Company 2020...
  • Page 24 To confirm the desired value, press [Setup] or to escape without changing the value, press [Mode].  Mode Auto  or Manual  modes are available. Whichever mode is visible when © Adam Equipment Company 2020...
  • Page 25: 10.4.5 Net / Total

    (see section 8.1). Value must be in the range 0.5 ≤ 2.0. If a value outside this range is selected then it will not be accepted and  or  will be displayed followed by return to the time entry screen again. © Adam Equipment Company 2020...
  • Page 26 Press [Mode] to continue with a new sample or press [0/T] to return to normal weighing. If a printer or other serial device is connected then pressing [Print] will print the density value in g/cc. © Adam Equipment Company 2020...
  • Page 27: Rs-232 Interface

    In continuous output mode, or if single-line output on demand is selected, the serial output format will be a single line in the form . g<CR><LF>”. The format of the result will change depending on the mode in which the balance is operating, e.g.     © Adam Equipment Company 2020...
  • Page 28: Custom Output Format

    Net weight Net: xxx.xxx g Gross weight Gross: xxx.xxx g Tare weight Tare: xxx.xxx g Unit weight Unit wt: xxx.xxx g Count Count: xxxx pcs Reference weight Ref. wt: xxx.xxx g Percent Percent: xx.xxx % © Adam Equipment Company 2020...
  • Page 29: Input Commands Using Remote Keys

    Key character is not ‘T’, ‘S’, ‘P’, ‘M’, ‘C’ or ‘U’ !KT-<CR> !EF<CR> Command format error, <CR> is not the fourth character KT<CR> or !KT - No reply Either ‘!’ or <CR> is missing in the command string © Adam Equipment Company 2020...
  • Page 30: Error Checking

    When the remote display output is used with the Adam Equipment Remote Display unit, the output is a continuous stream of data representing the weight and other information to display the correct data on the remote display. If the remote display data stream format is required for development purposes then please contact the manufacturer for advice.
  • Page 31: Supervisor Menus

    The parameters affecting the serial interface are set in a similar manner to the other parameters. Note: The balance must be power-cycled to apply changes to serial port settings. Press [Setup] when  is displayed to enter the sub-menu © Adam Equipment Company 2020...
  • Page 32: Format Of Custom Forms #1 And #2

    Enter the data to be printed on the first line by pressing [Up] or [Down] to cycle through the options. If the current information is OK then press [Setup] to move to the next line.   will print date on first line of output form. © Adam Equipment Company 2020...
  • Page 33: Setup Parameters

    Selectable values: 1, 2, 5 or 10 (divisions). Recommended value for normal use: 1 ON = Auto-zero function. Selectable values: 1, 2, 5, 10 or 15 (divisions).  OFF = Auto-zero function disabled. Recommended value for normal use: ON, 5  © Adam Equipment Company 2020...
  • Page 34: Calibration Setup

    Press [Setup]. Use the [Up] and [Down] keys to cycle through options until  is displayed. Press [Setup] again to enter this section. Use [Up] and [Down] keys to select Operator  or Supervisor  option.             © Adam Equipment Company 2020...
  • Page 35: Accessories & Spare Parts

    14.6 IN-USE PROTECTIVE COVER For cleanliness and hygiene reasons, and to protect the keypad and display from liquids, chemicals and particulates, and general wear, use of a transparent semi-disposable protective slip-on cover is highly recommended. © Adam Equipment Company 2020...
  • Page 36: Safety And Maintenance

    Do not spill liquids on the balance as it is not water-resistant. Liquids may damage the case and if it gets inside the balance it may cause damage to the electronics. Use of our special transparent in-use protective covers is recommended. © Adam Equipment Company 2020...
  • Page 37: Trouble-Shooting

    The trouble-shooting table in section 16.1 is a guide of common problems and their solutions. Note that many problems may have multiple solutions and there may be problems found that are not listed in the table. For Service Information, contact Adam Equipment or your supplier.
  • Page 38: Trouble-Shooting Guide

    (within a tolerance depending upon the model) Linearity when a mass is placed at positions around the pan. Verify the balance is acceptable throughout the weighing range. The balance must give acceptable readings from low weights up to the capacity. © Adam Equipment Company 2020...
  • Page 39 *RS-232 circuits damaged *Check the cables to the display Display dark, keys beep Display contrast poor *Replace the display which could be damaged Cable unplugged or damaged *To be carried out by authorised technicians only. © Adam Equipment Company 2020...
  • Page 40: Service Information

    Include any recent history of the unit. For example: -Has it been working since it was delivered? -Has it been in contact with water/liquid/particles? -Damaged from a fire? -Electrical Storms in the area? -Dropped on the floor, etc.? © Adam Equipment Company 2020...
  • Page 41: Balance Menu Structure

    18.0 BALANCE MENU STRUCTURE LUNA OPERATING SOFTWARE MENU STRUCTURE © Adam Equipment Company 2020...
  • Page 42 Note: Some menu options are not available, or extra options may be visible depending on if the model is internal or external calibration type, and whether it is an approved model. Conditions of approval in some countries necessitates adding or removing some options from the user interface. © Adam Equipment Company 2020...
  • Page 43 Supervisor Level Access (continued) © Adam Equipment Company 2020...
  • Page 44: Language Table

            Internal Calibration Hours         Temperature Calibration Minutes         Timed Calibration Seconds     Calibration Report © Adam Equipment Company 2020...
  • Page 45: Warranty Information

    This product may include a rechargeable battery that is designed to be removed and replaced by the user. Adam Equipment warrants that it will provide a replacement battery if the battery manifests a defect in materials or workmanship during the initial period of use of the product in which the battery is installed.
  • Page 46 © Adam Equipment Company 2020...
  • Page 47 Adam  Equipment  products  have  been  tested  with,  and  are  always  supplied  with mains power adaptors which meet all legal requirements for the intended  country  or  region  of  operation,  including  electrical  safety,  interference  and  energy  efficiency.  As  we  often  update  adaptor  products  to  meet  changing    legislation it is not possible to refer to the exact model in this manual. Please  contact us if you need specifications or safety information for your particular  item. Do not attempt to connect or use an adaptor not supplied by us.    © Adam Equipment Company 2020...
  • Page 48 © Copyright by Adam Equipment Co. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment. Adam Equipment reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
