Summary of Contents for Adam Equipment LBX 6
- Page 1 Adam Equipment LATITUDE Software version: 2.04 © Adam Equipment Company 2018...
- Page 2 Easy Reference: Model name of the scale: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place: ...
-
Page 3: Table Of Contents
CALIBRATION ....................10 AUTOMATIC EXTERNAL CALIBRATION ........... 10 ERROR MESSAGE ..................11 WARRANTY INFORMATION ..................12 WARNING: Please read carefully following instructions for installation and use before starting your work with a new balance. Failure to use the balance in accordance with the advice in the user manual could mean that the product gives incorrect readings. © Adam Equipment Company 2018 1 ... -
Page 4: Introduction

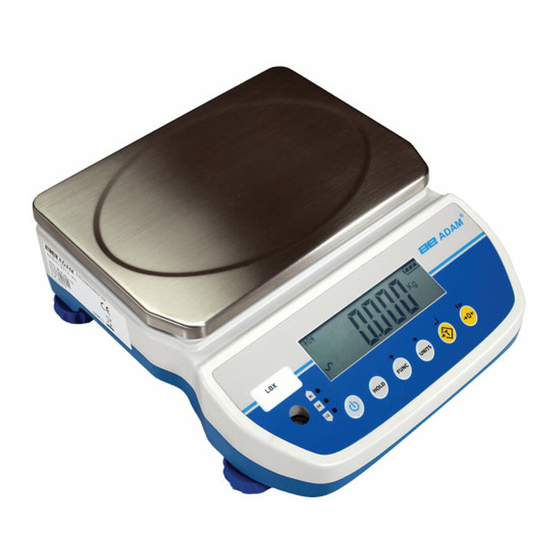

Stainless steel pan with ABS case and pan support • Sealed Membrane keypad • Overload Protection • Spirit level and leveling feet • Auto calibration, zero tracking and tare © Adam Equipment Company 2018 2 ... -
Page 5: Specifications
6 digits 24mm LCD 3.0 SAFETY PRECAUTIONS Caution: Please use only the original DC adapter supplied with the scale. Other cords or adapters may damage the scale. © Adam Equipment Company 2018 3 ... -
Page 6: Set Up
Check the setting of the auto shut off function, see section 6.2. If the auto shut off function is on, the scale will shut off after a period of time if the scale is not used and it has a stable reading. © Adam Equipment Company 2018 4 ... -
Page 7: Weighing
Press the [UNITS/ → ] key to go through the preset sample piece values of 10, 20, 50, 100 or 200 pieces. For example, if you selected SAP-20pcs, hand count out 20 pieces and put them on the scale. © Adam Equipment Company 2018 5 ... -
Page 8: Percentage Weighing
Put the item on the pan, if the weight is below the low limits set, the scale will show “xxxxx.x” with the ‘LO’ LED lit; if it is higher than the high limits set, © Adam Equipment Company 2018 6 ... -
Page 9: Hold Function
“SLP 0” means that the function is disabled. • “SLP X” means that the auto off function is on. The number is the time in minutes before the scale will shut off automatically. © Adam Equipment Company 2018 7 ... -
Page 10: Backlight Setting Mode
• Press the [Tare/↵] key to confirm the setting and move to the next setting. The check weighing function has been entered when "CHK on" or "CHK of" is displayed. © Adam Equipment Company 2018 8 ... -
Page 11: Check Weighing Function
Press the [Tare/↵] key to confirm and move back to the first setting. Press [ZERO] to escape the function menu and enter the normal weighing mode to save the changes you made. © Adam Equipment Company 2018 9 ... -
Page 12: Calibration
After the calibration mass is added, wait for the stable symbol to come on and then press the [Tare/↵] key, the display will show “PASS”, and then return to normal weighing after 3 seconds. © Adam Equipment Company 2018 10 ... -
Page 13: Error Message
A/D counts are too low --AdL Wrong operation BEEP 15 - -OL- - Overload 9d Low battery indication and “BATTLO” Over zero key range -- Err - © Adam Equipment Company 2018 11 ... -
Page 14: Warranty Information
During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or Adam Equipment Company. The company or its authorized Technician reserves the right to repair or replace the components at any of its workshops depending on the severity of the problems. - Page 15 As we often update adaptor products to meet changing legislation it is not possible to refer to the exact model in this manual. Please contact us if you need specifications or safety information for your particular item. Do not attempt to connect or use an adaptor not supplied by us. © Adam Equipment Company 2018 13 ...
- Page 16 430056 Wuhan Phone +27 (0)11 974 9745 P.R.China Fax: +27 (0)11 392 2587 Phone: +61 (0) 8 6461 6236 Phone: + 86 (27) 59420391 e‐mail: Fax +61 (0) 8 9456 4462 Fax + 86 (27) 59420388 e‐mail: e‐mail: info@adamequipment.com.cn sales@adamequipment.co.za sales@adamequipment.com.au © Copyright by Adam Equipment Co. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment. Adam Equipment reserves the right to make changes to the technology, features, specifications and design of the equipment without notice. All information contained within this publication is to the best of our knowledge timely, complete and accurate when issued. However, we are not responsible for misinterpretations which may result from the reading of this material. The latest version of this publication can be found on our Website. www.adamequipment.com © Adam Equipment Company 2018 14 ...
