- Page 1 Adam Equipment GBC/GFC Series P.N. 3056610587, Revision B3, November 2011) Software Rev 2.18 and up © Adam Equipment Company 2011...
- Page 2 Easy Reference: Model name of the indicator/scale: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place: © Adam Equipment Company 2011...
-
Page 3: Table Of Contents
ERROR CODES................27 12.0 SERVICE PARAMETERS............... 28 12.1 USING “0000” TO ENTER THE CALIBRATION PARAMETER ..28 13.0 REPLACEMENT PARTS AND ACCESSORIES......30 14.0 SERVICE INFORMATION............... 31 15.0 WARRANTY INFORMATION............32 P a g e © Adam Equipment Company 2011... - Page 4 P a g e © Adam Equipment Company 2011...
-
Page 5: Introduction

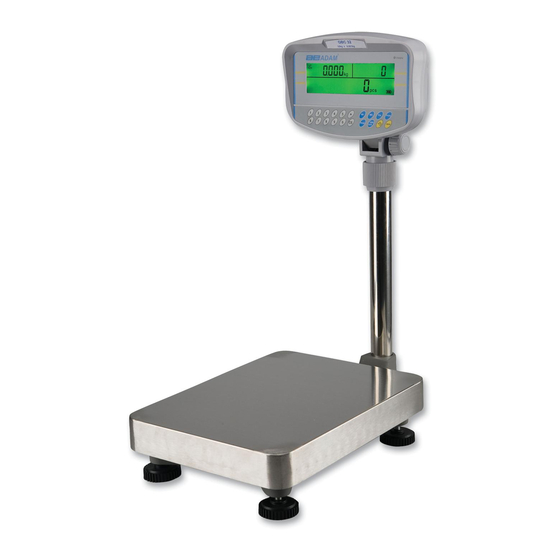

• The GBC/GFC include automatic zero tracking, audible alarm for pre-set counts, automatic tare, pre-set tare, an accumulation facility that allows the count to be stored and recalled as an accumulated total. P a g e © Adam Equipment Company 2011... - Page 6 300mm x 400mm x 50mm / 12” x 15.7” x 2” Overal Dimensions 300mmx 520mm x 660mm / 11.8” x 20.5” x 26” (w x d x h) Net Weight 7.6kg / 16.8 Lb Features Weighing/Counting/Checkweighing with LED lights/Percentage/Hold function/RS232 P a g e © Adam Equipment Company 2011...
- Page 7 400mm x 500mm x 65mm/ 15.7” x 19.7” x 2.6” Overal Dimensions 400mmx 620mm x 860mm / 15.7” x 24.4” x 33.9” (w x d x h) Net Weight 12.5kg / 27.6 Lb Features Weighing/Counting/Checkweighing with LED lights/Percentage/Hold function/RS232 P a g e © Adam Equipment Company 2011...
-
Page 8: Installation
Avoid air movement such as from fans or opening doors. Do not place near open windows or air-conditioning vents. • Keep the scales clean. Do not stack material on the scales when they are not in use. P a g e © Adam Equipment Company 2011... -
Page 9: Setting Up The Scales
The software revision number will be displayed followed by a self-test showing all digits before the zero is displayed along with the unit of weight that was selected last. P a g e © Adam Equipment Company 2011... -
Page 10: Key Descriptions
This is the net weight. Entering a value using the keypad will store that as the tare value. [Zero] Sets the zero point for all subsequent weighing to show zero. P a g e © Adam Equipment Company 2011... -
Page 11: Displays
UNIT WEIGHT COUNT WEIGHT DISPLAY It has 6-digit display to indicate the weight on the scale. Net Weight Display, "Net" Stability indicator, symbol Zero indicator, 0 symbol The weighing unit: kg, lb P a g e © Adam Equipment Company 2011... -
Page 12: Unit Weight Display
• The Lo, OK, Hi symbols will be used when the preset count has been set. • The symbol “Mem” will be seen when the internal memory has a record of previous weighings stored in it. P a g e © Adam Equipment Company 2011... -
Page 13: Operation
The indicator “>Z<” will also be ON because the platform is back to the same condition as it was when the [Zero] key was pressed last. 6.2.1 Preset Tare P a g e © Adam Equipment Company 2011... -
Page 14: Parts Counting
To lock the Unit Weight and avoid re-sampling, press [U. Wt./Units]. • If the scale is not stable, the calculation will not be completed. If the weight is below zero, the “Count” display will show negative count. P a g e © Adam Equipment Company 2011... - Page 15 • During counting if the count is below the setpoint the “Lo” indicator will be on, if it is equal to the set point the “OK” indicator will be on and if it is above the limit the “Hi” indicator will be on. P a g e © Adam Equipment Company 2011...
- Page 16 In this case the values will not be stored when the scale returns to zero. • See the Section 9.0 on RS-232 Interface for details on how to enable Automatic Accumulation. P a g e © Adam Equipment Company 2011...
-
Page 17: User Parameters
• The first parameter is “F1” “CAL”. (See section 8.0 for details) • To enter into Calibration function, press the [Tare] key. • To exit a parameter, press the [Zero] key. • To select the second parameter press the [U. Wt./Units] key. P a g e © Adam Equipment Company 2011... - Page 18 [Tare] key to go to the next weighing unit. The weighing units selected will depend upon the model and the capacity of the scales. See Section 12.2, Service Parameters. • Press the [Zero] key to return to the weighing mode. P a g e © Adam Equipment Company 2011...
-
Page 19: Calibration
If the scale was in pounds before starting the calibration, the weights requested will be in pound values or if the scale was weighing in kilograms then metric weights will be requested. P a g e © Adam Equipment Company 2011... -
Page 20: Rs-232 Interface
The scale can be set to print text in English, French, German or Spanish. See the RS- 232 parameters section for details. All lines end with line feed <lf>, and carriage return <cr>characters. P a g e © Adam Equipment Company 2011... - Page 21 <lf><cr> Data Format- Memory Recall Print: <lf><cr> DATE 12/09/2006 TIME 14:56 <lf><cr> ------------------ TOTAL 1.234 Kg 10 pcs <lf><cr> Includes 1 line feed ------------------ <lf><cr> 2 line feeds, carriage return <lf><cr> P a g e © Adam Equipment Company 2011...
- Page 22 Stck. Piezas Number items counted Anzhl Num. Number weighings added subtotals Total Total Gesamt Total Total weight count printed Date Date Datum Fecha Print date Time Heure Zeit Hora Print time P a g e © Adam Equipment Company 2011...
-
Page 23: Input Commands Format
Recall and Print, Same as if first the [MR] key and then the [Print] key is pressed. Will display the current accumulated memory and print the total results. C<cr><lf> Same as pressing [MR] first and then the [CE] key to erase the current memory. P a g e © Adam Equipment Company 2011... -
Page 24: Rs-232 Setup
Print mAn automatically or printing manually. AC Auto Select the operation of AC mAn accumulating AC oFF automatically, manually or turned off. EnGLiS LAnG EnGLiS Select Language FrEnCH printing. GErMAn SPAniS P a g e © Adam Equipment Company 2011... - Page 25 Print continuously , accumulate accumulate when [M+] is [M+] and [Print] key Cont to PC automatically when pressed, [Print] key no have no function stable , [Print] key function no function P a g e © Adam Equipment Company 2011...
-
Page 26: Real Time Clock Setup
An error code will be shown if the time (Err 1) or the date (Err 2) is not the permissible values. For example, 34th day of a month is an invalid entry. P a g e © Adam Equipment Company 2011... -
Page 27: Auto Sleep Function
• If the battery has not been used properly or it is used for a number of years it may eventually fail to hold a full charge. If the battery life becomes unacceptable then contact your supplier. P a g e © Adam Equipment Company 2011... -
Page 28: Backlight For Lcd
“EL Au” Sets the backlight to be off. “EL OFF” Press the [Tare] key to store the value or press the [Zero] key to escape from this setting and return to weighing. P a g e © Adam Equipment Company 2011... -
Page 29: Error Codes
Damaged Electronics. diSPEr Shows when a number The accumulated totals for weight is too large tot fit the or count exceed 999999. The data display on RS232 is still shown accurately P a g e © Adam Equipment Company 2011... -
Page 30: Service Parameters
The parameters available are: “F1” “CAL” To enter the Calibration “F2” “Pin” To set a new Pin number for access “F3” “Unit” Enable Weighing Units P a g e © Adam Equipment Company 2011... - Page 31 Press the [U.Wt./Units] key to change the value. Press [Tare] to accept the displayed setting and go to the next unit. • Press the [Zero] key to return to the menus. Press the [Zero] key again to return to normal weighing. P a g e © Adam Equipment Company 2011...
-
Page 32: Replacement Parts And Accessories
Equipment. A partial list of such items is as follows- • Main Power cord • Stainless steel Pan • Power supply (GFB/GFC-a) • In use cover • Replacement Battery • Printer P a g e © Adam Equipment Company 2011... -
Page 33: Service Information
Include any recent history of the unit. For example: -Has it been working since it’s delivered -Has it been in contact with water -Damaged from a fire -Electrical Storms in the area -Dropped on the floor, etc. P a g e © Adam Equipment Company 2011... -
Page 34: Warranty Information
15.0 WARRANTY INFORMATION Adam Equipment offers Limited Warranty (Parts and Labour) for the components failed due to defects in materials or workmanship. Warranty starts from the date of delivery. During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or Adam Equipment Company. - Page 35 Shielded interconnect cables must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by Adam Equipment could void the user's authority to operate the equipment. WEEE COMPLIANCE...
- Page 36 For a complete listing of all Adam products visit our website at www.adamequipment.com © Copyright by Adam Equipment Co. Ltd. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment.
