PARTS REFERENCE

5. PARTS REFERENCE

5.1 PLAYFIELD RUBBER PARTS

7
2
1
1
7
6
12

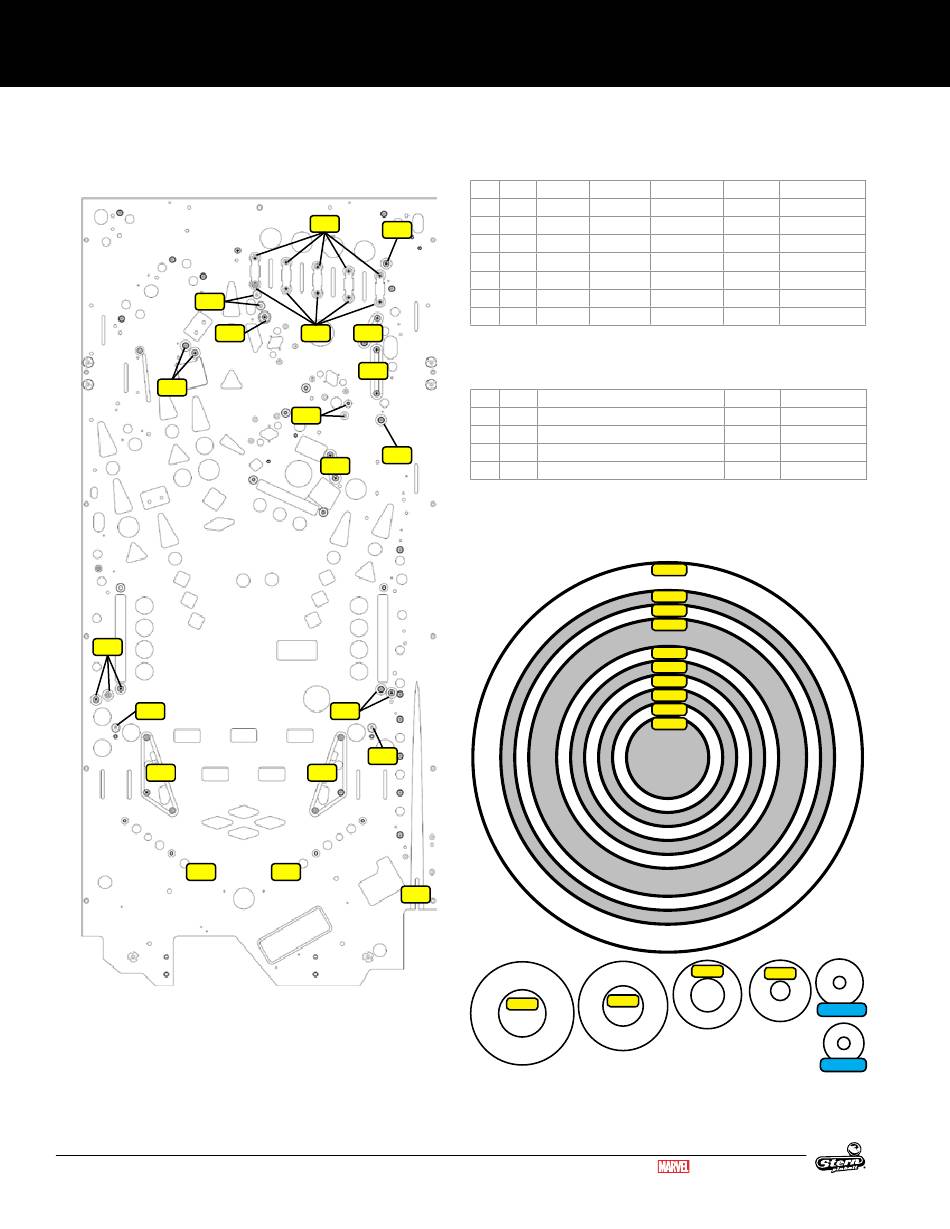

Figure 5.1.1. Rubber o-ring part locations
34
1
1
2 4
5
7
1
3
1
7
6
12
11
DEADPOOL PRO MANUAL 500-55K1-01
RUBBER O-RINGS
ID Qty Size (ID) Size (OD) Durometer
1 14 3/16"
2 6 5/16"
3 1 3/4"
4 1 1"
5 1 1-1/2"
6 2 2-1/2"
7 6 7/16"
Figure 5.1.2. Rubber o-ring part numbers and usage. ID: Inner
Diameter, OD: Outer Diameter, Durometer: Higher number is
firmer, less bounce, and more durable.
ID Qty Description
11 1 Plunger Tip
12 2 Flipper Rubber
13 4 Bumper Pad (Sub assemblies)
14 4 Bumper Pad (Flippers)
Figure 5.1.3. Other rubber part numbers and usage

5.2 RUBBER SIZE CHART

3/8"
7/16"
Figure 5.2.1. Rubber ring inner diameter sizing tool. Hold ring up
to chart and read largest size on inside of ring. Dimensions are
Inner Diameter (ID) unless otherwise noted as Outer Diameter
(OD).
Color Part Number
50 Black 545-5348-01
50 Black 545-5348-02
50 Black 545-5348-04
50 Black 545-5348-05
50 Black 545-5348-07
50 Black 545-5348-09
50 Black 545-5348-17
Color Part Number
Black 545-5276-00
Black 545-5277-00
Black 545-5105-00
Black 545-5428-00
3-1/2"
3"
2-3/4"
2-1/2"
2"
1-3/4"
1-1/2"
1-1/4"
1"
3/4"
5/16"
3/16"
7/16" OD
3/8" OD
