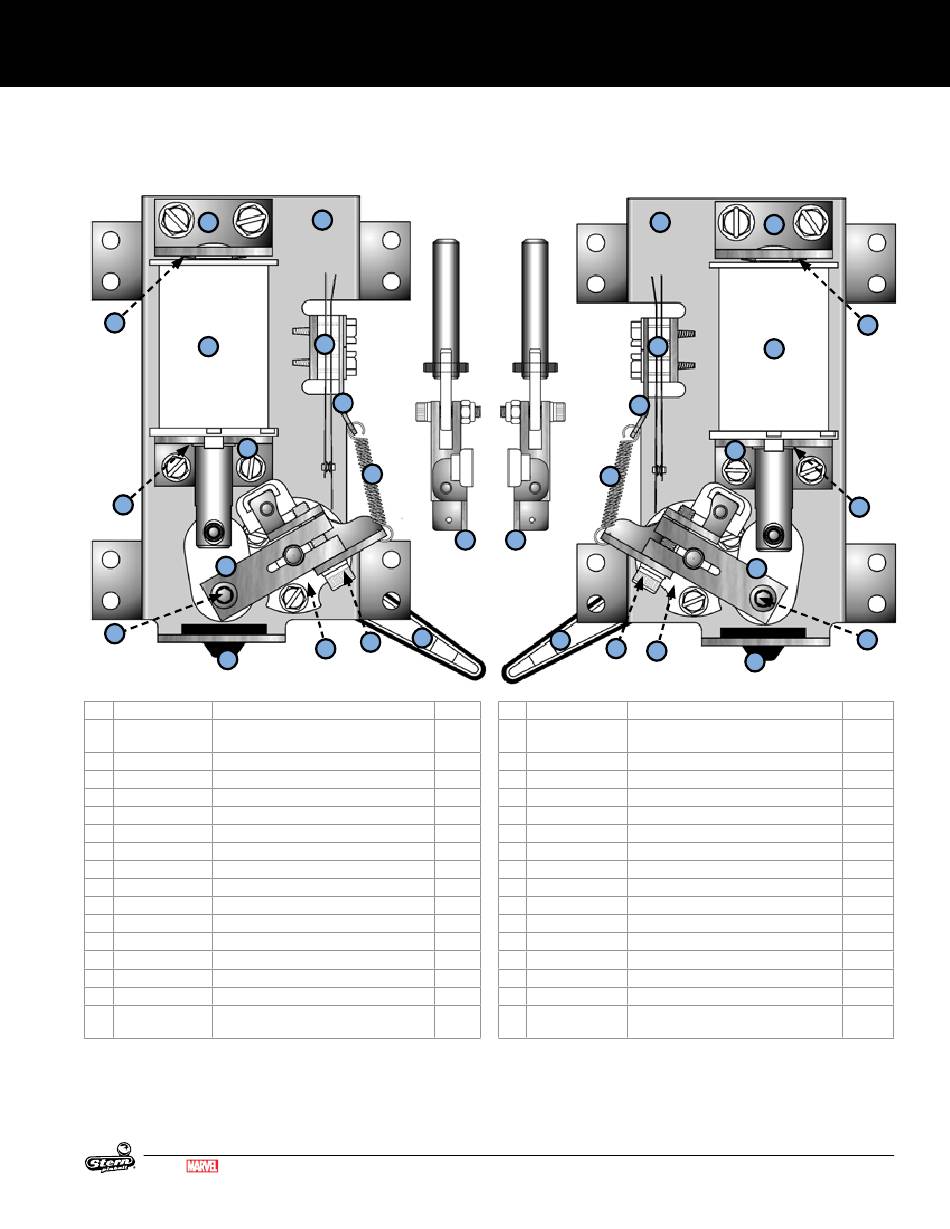

5.13 FLIPPER ASSEMBLY, LEFT

500-6543-11-ND
2
5
4
8
9
13
12
11
ID Part Number Description
1 515-6617-01 FLIPPER BASE PLATE LEFT KIT W/
BRACKET MOUNT HARDWARE
2 515-6308-01 COIL STOP BRACKET
3 180-5149-00 SWITCH - END OF STROKE N/C
4 090-5020-20-ND COIL
5 269-5002-00 SPRING WASHER
6 535-7354-00 SWITCH RETURN SPRING BRACKET
7 265-5035-00 SPRING FLIPPER RETURN
8 535-7356-00 COIL SUPPORT BRACKET
9 545-5388-00 COIL SLEEVE, FLIPPER
10 545-5070-00 FLIPPER BAT BUSHING
11 545-5428-00 FLIPPER BUMPER PAD
12 237-6144-00 SET SCREW #10-32 x 3/4" SOCKET
13 515-7203-01 PLUNGER/CRANK ASSEMBLY, LEFT
14 515-5133-08-06 FLIPPER BAT AND SHAFT*
500-6307-10 FLIPPER REBUILD KIT, LEFT
* Refer to game rubber chart for flipper
rubber color and part number.
MARVEL.COM
© MARVEL

5.14 FLIPPER ASSEMBLY, RIGHT

500-6543-02-ND
1
3
6
7
13
14
12
10
Qty
1
1
1
1
1
1
1
1
1
1
1
2
1
1
DEADPOOL PRO MANUAL 500-55K1-01
1
3
6
7
13
13
14
12
10
ID Part Number Description
1 515-6617-00 FLIPPER BASE PLATE RIGHT KIT W/
BRACKET MOUNTING HARDWARE
2 515-6308-01 COIL STOP BRACKET
3 180-5149-00 SWITCH - END OF STROKE N/C
4 090-5032-ND COIL
5 269-5002-00 SPRING WASHER
6 535-7354-00 SWITCH RETURN SPRING BRACKET
7 265-5035-00 SPRING FLIPPER RETURN
8 535-7356-00 COIL SUPPORT BRACKET
9 545-5388-00 COIL SLEEVE, FLIPPER
10 545-5070-00 FLIPPER BAT BUSHING
11 545-5428-00 FLIPPER BUMPER PAD
12 237-6144-00 SET SCREW #10-32 x 3/4" SOCKET
13 515-7203-00 PLUNGER/CRANK ASSEMBLY
14 515-5133-08-06 FLIPPER BAT AND SHAFT*
500-6307-00 FLIPPER REBUILD KIT, RIGHT
* Refer to game rubber chart for flipper
rubber color and part number.
PARTS REFERENCE
2
5
4
8
9
13
12
11
Qty
1
1
1
1
1
1
1
1
1
1
1
2
1
1
