5.3 PLAYFIELD ASSEMBLIES, TOP

9
12
7
16
10
7
14
2
4

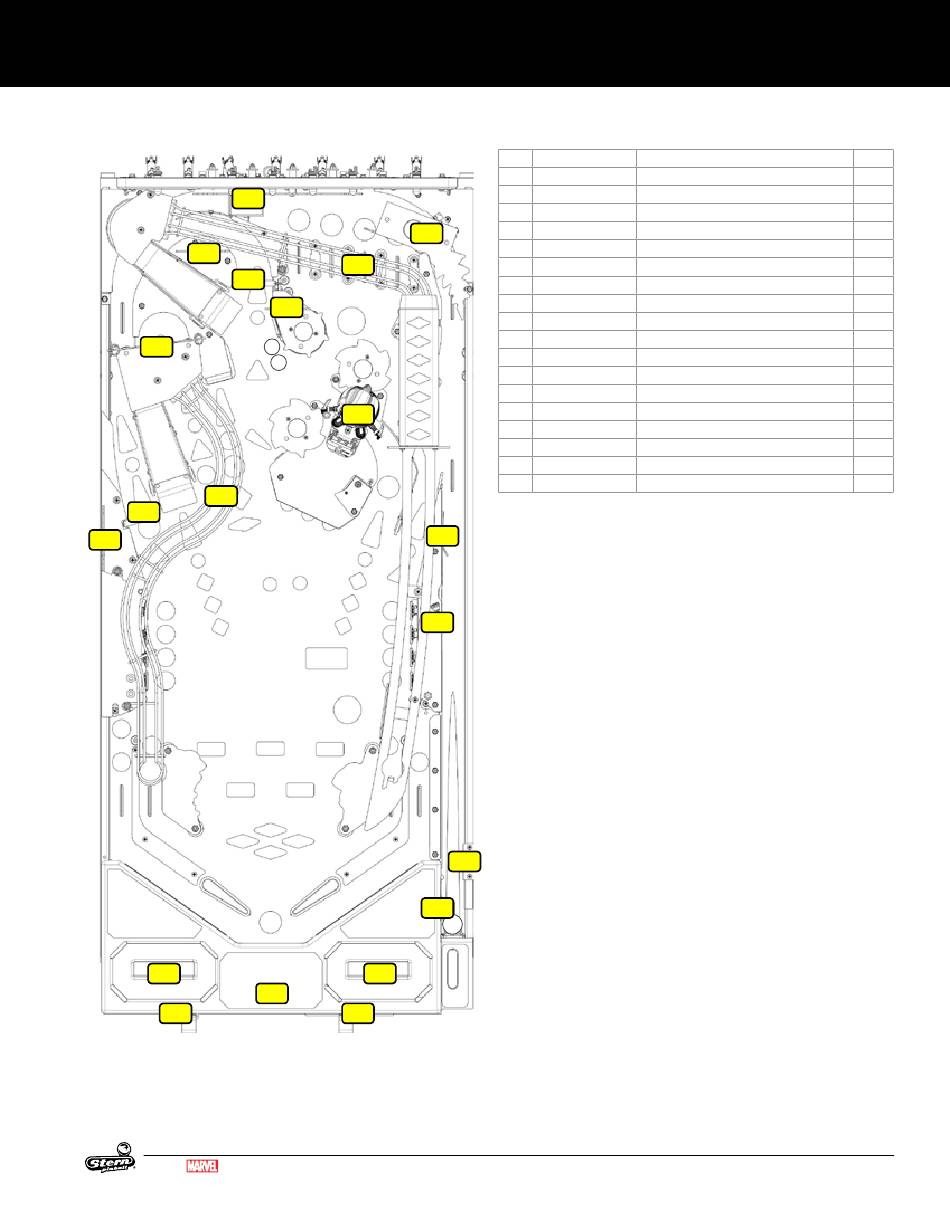

Figure 5.3.1. Major playfield assemblies, Top locations.
MARVEL.COM
© MARVEL
8
11
13
17
15
18
5
3
1
4
DEADPOOL PRO MANUAL 500-55K1-01
ID Part Number Description
1 545-5995-02 Bottom Arch Assembly
2 755-51K1-12-Y Instruction Card
3 755-5400-02-Y Coin Card (USA)
4 535-8385-00 Welded Hanger Bracket
5 260-5000-00 Pinballs
6 500-6815-00 Bubble Level Assembly
7 511-7877-00 Spinner Bracket
8 511-1940-01 Taco Truck Electric Gate
9 511-5096-00-GE Electric Gate
10 515-1922-00 Left Wire Ramp
11 515-1923-00 Right Wire Ramp
12 830-8378-76 Colossus Plastic
13 830-8378-75 Wolverine Plastic
14 830-8378-73 Dazzler
15 830-8378-77 Domino
16 511-7801-47 Deadpool Hammock
17 511-1954-00 Lil Deadpool Bash Toy
18 515-1895-01 Spotlight
6
PARTS REFERENCE
Qty
1
1
1
2
6
1
2
1
1
1
1
1
1
1
1
1
1
1
35
