Trough Serial Opto Receiver Extension 8A; Trough Serial Opto Transmitter; Lower Led Board 8B - Stern Pinball Deadpool PRO Operation Manual

ELECTRONIC PINOUTS AND SCHEMATICS

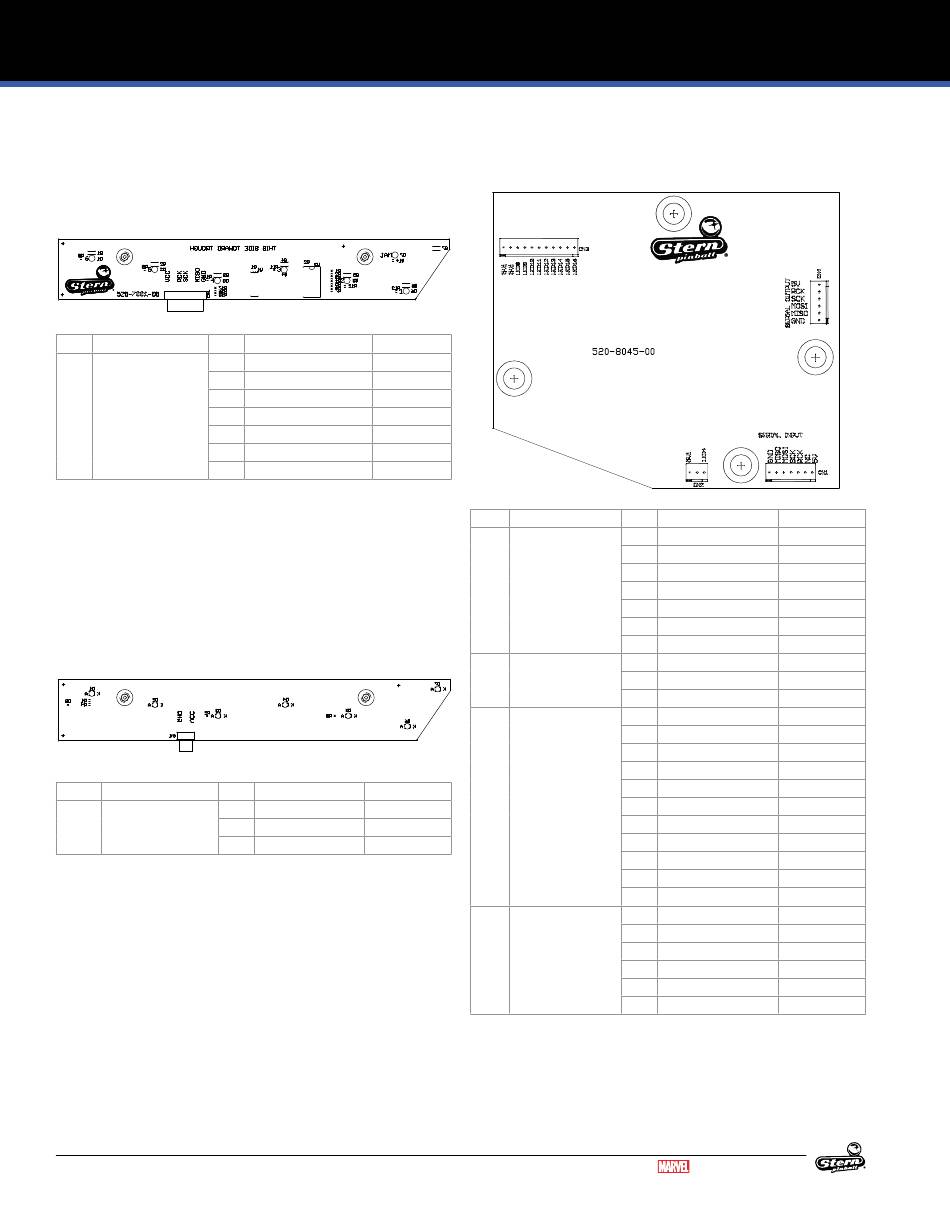

4.5 TROUGH SERIAL OPTO
RECEIVER EXTENSION 8A
520-7001-00
ID Type Pin
CN1 .100" 7-Pin Header 1
2
3
4
5
6
7
4.6 TROUGH SERIAL OPTO
TRANSMITTER
520-5344-00
ID Type Pin
CN1 .100" 3-Pin Header 1
2
3
28
Description Wire Color
Ground BLK
MISO Output Data VIO-BLK
MOSI Input Data -
SCK Serial Clock VIO-RED
RCK Register Clock VIO-ORG
N/C -
+5 VDC IN RED
Description Wire Color
Ground BLK
N/C -
+5 VDC IN RED
DEADPOOL PRO MANUAL 500-55K1-01

4.7 LOWER LED BOARD 8B

520-8045-00
ID Type Pin
CN1 .100" 7-Pin Header 1
2
3
4
5
6
7
CN2 .100" 3-Pin Header 1
2
3
CN3 .100" 11-Pin Header 1
2
3
4
5
6
7
8
9
10
11
CN4 .100" 6-Pin Header 1
2
3
4
5
6
Description Wire Color
Ground BLK
MISO Output Data VIO-BLK
MOSI Input Data VIO-BRN
SCK Serial Clock VIO-RED
RCK Register Clock VIO-ORG
n/c -
+5 VDC IN RED
+5 VDC RED
n/c -
LP-4 Light Return ORG
+5 VDC RED
+5 VDC RED
LP-8 Light Return ORG-GRN
LP-9 Light Return ORG-BLK
LP-10 Light Return ORG-BRN
LP-11 Light Return GRN-BLU
LP-12 Light Return GRN-VIO
LP-13 Light Return GRN-GRY
LP-14 Light Return GRN-WHT
LP-15 Light Return ORG-RED
LP-16 Light Return ORG-YEL
Ground BLK
MISO Output Data VIO-BLK
MOSI Input Data VIO-BRN
SCK Serial Clock VIO-RED
RCK Register Clock VIO-ORG
V+ RED
