C O N F I G U R A T I O N
G U I D E

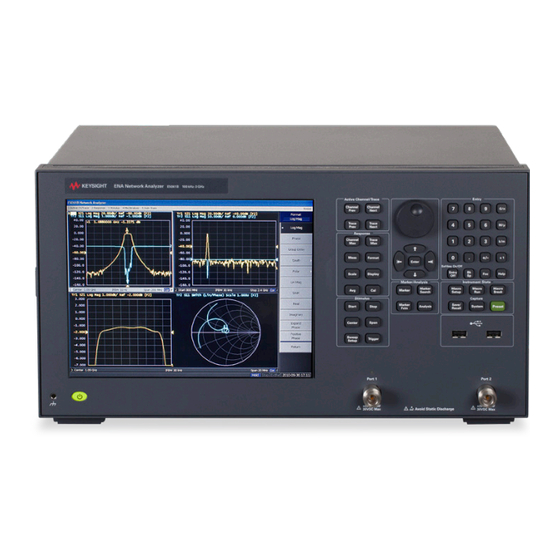

Keysight E5061B
ENA Vector Network Analyzer

Advertisement

Table of Contents
loading

Related Manuals for Keysight E5061B

Summary of Contents for Keysight E5061B

  • Page 1 C O N F I G U R A T I O N G U I D E Keysight E5061B ENA Vector Network Analyzer...

  • Page 2: Ordering Guide

    1. Keyboard and mouse are not furnished as standard. Refer to “Step 6. accessory option” for the selection of these items. 2. The E5061B-3L3/3L4/3L5 includes the 50 ohm S-parameter test set (5 Hz to 500 M/1.5 G/3 GHz), and the gain-phase test port (5 Hz to 30 MHz) 3.
  • Page 3 2. Option 020 is the only storage option for the E5061B. Must choose this option when ordering the E5061B. 3. Refer to “Software upgrade” section for retrofit information on the above option. 4. This option is not applicable for the E5061B 75 ohm test set options 1x7/2x7 and Transmission/Reflection test set options 1x5. Page 3...

  • Page 4: Test Accessories

    Test accessories Test accessories such as test port cable are necessary for a complete measurement system using the E5061B. Order test accessories in accordance with the desired measurement system. Calibration kits Calibration is an accuracy enhancement procedure that effectively reduces the system errors that cause uncertainty in network measurement.
  • Page 5 N9399C 3.5 mm (m) and 3.5 mm (f) connectors, 700 kHz to 26.5 GHz 11667L For transmission measurement with the gain-phase test port of the E5061B-3L3/3L4/3L5. Required for milliohm impedance measurements in the low frequency range. Page 5 Find us at www.keysight.com...
  • Page 6 - Slip-on tip adapter - 10:1 and 100:1 divider 41800A-001 Adds a cable to connect the probe with an external power supply. This option is not necessary for the E5061B- 3L3/3L4/3L5 since it is equipped with the probe power. 41800A-UK6...
  • Page 7 Input: BNC(f), Output: Banana jacks. J2111A Current Injector For output impedance measurements of DC-DC converters with high-voltage outputs up to 40 Vdc. The recommended frequency range with the E5061B is 5 Hz to 1 MHz. Picotest DC to 200 MHz...
  • Page 8 Non-Keysight test accessories (for 50 Ω system, continued) Picotest J2120A Line Injector Picotest J2111A Current Injector Picotest J2120A Line Injector (Banana-to-test clip leads connected to its banana jacks) Picotest J2113A Semi-Floating Differential Amplifier Picotest J2160A Probe Adapter North Hills Signal Processing 0017CC...
  • Page 9 2. Mixed connector options are also available. Visit our website for more details about the ECal: www.keysight.com/find/ecal 3. The E5061B must have firmware revision B.04.86 or above for the operation with the N755xA series ECal module. Page 9 Find us at www.keysight.com...
  • Page 10 2. Mixed connector options are also available. Visit our website for more details about the ECal: www.keysight.com/find/ecal 3. The E5061B must have firmware revision B.04.86 or above for the operation with the N755xA series ECal module. Page 10 Find us at www.keysight.com...
  • Page 11 - 7 mm combined Open/Short 1. This ECal module cannot be used in the low frequency range below 300 kHz. 2. Mixed connector options are also available. Visit our website for more details about the ECal: www.keysight.com/find/ecal Page 11 Find us at www.keysight.com...
  • Page 12 Type-N (m) to Type-N (m) RF ECal module 85096C-00A Adds; - Type-N (f) to Type-N (f) adapter - Type-N (m) to Type-N (m) adapter 1. This ECal module cannot be used in the low frequency range below 300 kHz. Page 12 Find us at www.keysight.com...
  • Page 13 Type-F (m) to Type-F (m) RF ECal module 85099C-00A Adds; - Type-F (f) to Type-F (f) adapter - Type-F (m) to Type-F (m) adapter 1. This ECal module cannot be used in the low frequency range below 300 kHz. Page 13 Find us at www.keysight.com...
  • Page 14 Testmobile Scope Cart For more detailed information about how to select impedance test accessories for the E5061B-3L3/3L4/3L5+005, refer to 5990-7033EN For more detailed information about applicable DUT size of these test fixtures, refer to Accessories Selection Guide for Impedance Measurement (5965-4792E).

  • Page 15: Hardware Upgrades

    E5061B Upgrade Kits Upgrade kits are available to add E5061B software or hardware features after initial purchase. To upgrade your existing E5061B, order the corresponding item number. For further information, visit: www.keysight.com/find/ena_support Frequency upgrades Upgrade kit option no. Description From...

  • Page 16: Web Resources

    For more information on Keysight Technologies’ products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus Page 16 Find us at www.keysight.com This information is subject to change without notice. © Keysight Technologies, 2018, Published in USA , August 1, 2018, 5990-4391EN...
