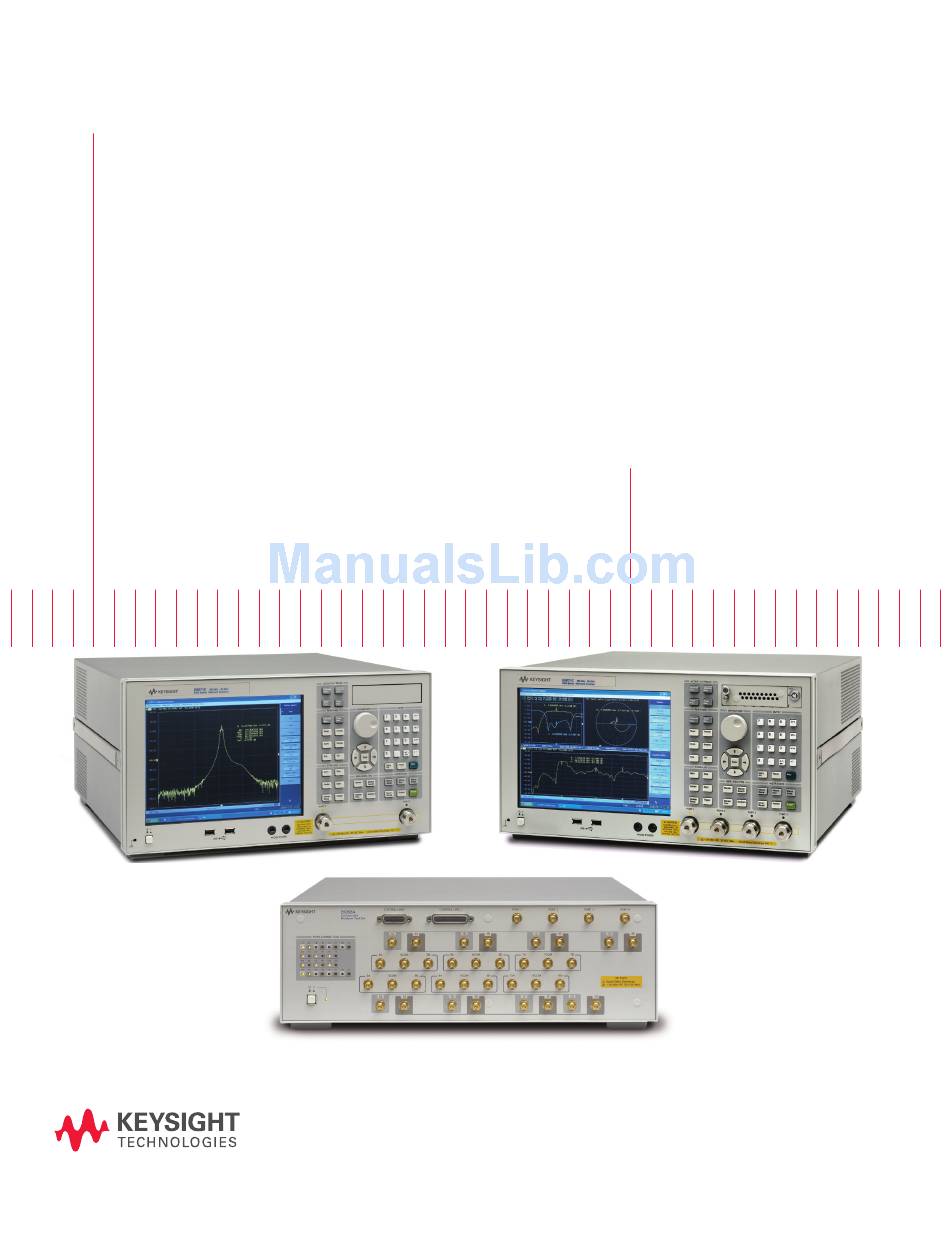

- Page 1 Keysight Technologies E5071C Network Analyzer – 9 kHz to 4.5/6.5/8.5 GHz – 100 kHz to 4.5/6.5/8.5 GHz (with bias tees) – 300 kHz to 14/20 GHz (with bias tees) E5092A Configurable Multiport Test Set Configuration Guide...
-
Page 2: Additional Product Information
(SMC), power calibrations, or receiver calibra- tions after power calibrations. 2. E5071C-TDR is a superset of E5071C-010. To add option TDR, you do not need to have option 010 already installed; however, you can have both option 010 and TDR installed in one instrument 3. - Page 3 03 | Keysight | E5071C Network Analyzer - Configuration Guide Receiver assignment R1 A R2 B R3 C R4 D R1 A R2 B Port 1 Port 2 Port 3 Port 4 Port 1 Port 2 2-port test set option...
- Page 4 1. Options are ordered using the combined model/option number, e.g. E5071C-240. 2. Order the 82357B USB/GPIB interface at the same time if you want to control power meters with the E5071C. This will allow you to conduct scalar mixer calibrations (SMC), power calibrations, or receiver calibrations after power calibrations.
- Page 5 4A 4B 4C 4D 1A 1B 1C 1D 6A 6B 7A 7B 8A 8B 9A 9B 10A 10B SW10 5COM 6COM 7COM 8COM 9COM 10COM 1. Semi-rigid cables are designed for connection to the E5071C and are not available for the E5070B, E5071B.
- Page 6 06 | Keysight | E5071C Network Analyzer - Configuration Guide E5092A Configurable Multiport Test Set Options To add options to a product, order the corresponding option number. Option 1 Description Additional information Test set Option 020 20 GHz switching test set Up to 22-port or 10-port full crossbar measurement.
-
Page 7: Additional Software Options
07 | Keysight | E5071C Network Analyzer - Configuration Guide ENA Network Analyzer (E5071C) Option 1E5 High stability time base Option 1E5 provides the following stability: Additional software options CW accuracy: ±1 ppm (specification) Source stability: ±0.05 ppm (5 °C to 40 °C typical), Option TDR Enhanced time domain analysis ±... -
Page 8: Measurement Accessories
08 | Keysight | E5071C Network Analyzer - Configuration Guide Measurement Accessories Waveguide measurements For waveguide measurements, Keysight offers mechanical cali- A complete list of RF and microwave test accessories bration kits that include: is available on our Web site: www.keysight.com/find/accessories –... - Page 9 85054-60038 Type-N (m) to Type-N (m) adapter 85054-60046 Type-N (m) fixed load 85054-60047 Type-N (f) fixed load 1. Performance from 9 kHz to 300 kHz is valid only for the E5071C ENA network analyzer with firmware version A.09.10 or higher.
- Page 10 1. Special rugged female connector specifically for connecting to the net- work analyzer test port, but does not mate with a standard male connector. 2. Recommended to connect H device to E5071C option xD5/xK5 which has NMD-3.5 mm (m) connectors. 3. Consider purchasing Keysight 20mm TORQUE WRENCH 8710-1764...
-
Page 11: For Devices With 3.5 Mm Or Sma Connectors
85052-60013 3.5 mm (f) to 3.5 mm (m) adapter 85052-60014 3.5 mm (m) to 3.5 mm (m) adapter 1. Performance from 9 kHz to 300 kHz is valid only for the E5071C ENA network analyzer with firmware version A.09.10 or higher. - Page 12 2. 1250-1744 3.5 mm (f) to 50 Ω Type-N (m) adapters are recommended to connect to the E5071C Option x4x, x6x, and x8x test ports, which have Type-N (f) connectors. 3. NMD-3.5 mm (f) to 3.5 mm (f), or 3.5 mm (f) to 3.5 mm (f) adapters are recommended to connect to the E5071C Option xD5, xK5, which have NMD-3.5 mm (m) connectors.
-
Page 13: For Devices With Waveguide
13 | Keysight | E5071C Network Analyzer - Configuration Guide For devices with 75 Ω Type-N connectors For devices with waveguide Mechanical calibration kits Mechanical calibration kits – 85036B DC to 3 GHz, includes: X Band 00909-60019 75 Ω Type-N (m) broadband load –... -
Page 14: General Accessories
14 | Keysight | E5071C Network Analyzer - Configuration Guide Additional Accessories Power meters and sensors Power limiters Recommended for source output power calibration. – E4416A 1 single-channel EPM-P series power meter – N9355B power limiter, 10 dBm limiting threshold, –... -
Page 15: Upgrade Kits
15 | Keysight | E5071C Network Analyzer - Configuration Guide Upgrade kits Measurement Wizard Assistant software for ENA/E5091A Literature number 5989-4855EN Comprehensive Multiport Solution for the ENA Upgrade kits for the E5071C Network Analyzer Protecting your hardware investment Literature number 5989-8737EN... - Page 16 LAN eXtensions for Instruments puts the power of Ethernet and the Asia Pacific Australia 1 800 629 485 Web inside your test systems. Keysight is a founding member of the LXI China 800 810 0189 consortium. Hong Kong 800 938 693 www.pxisa.org...
