Daikin CHPEA Series Installation Instructions Manual

Two way horizontal cased coil

Hide thumbs

Table Of Contents

Quick Links

Download this manual

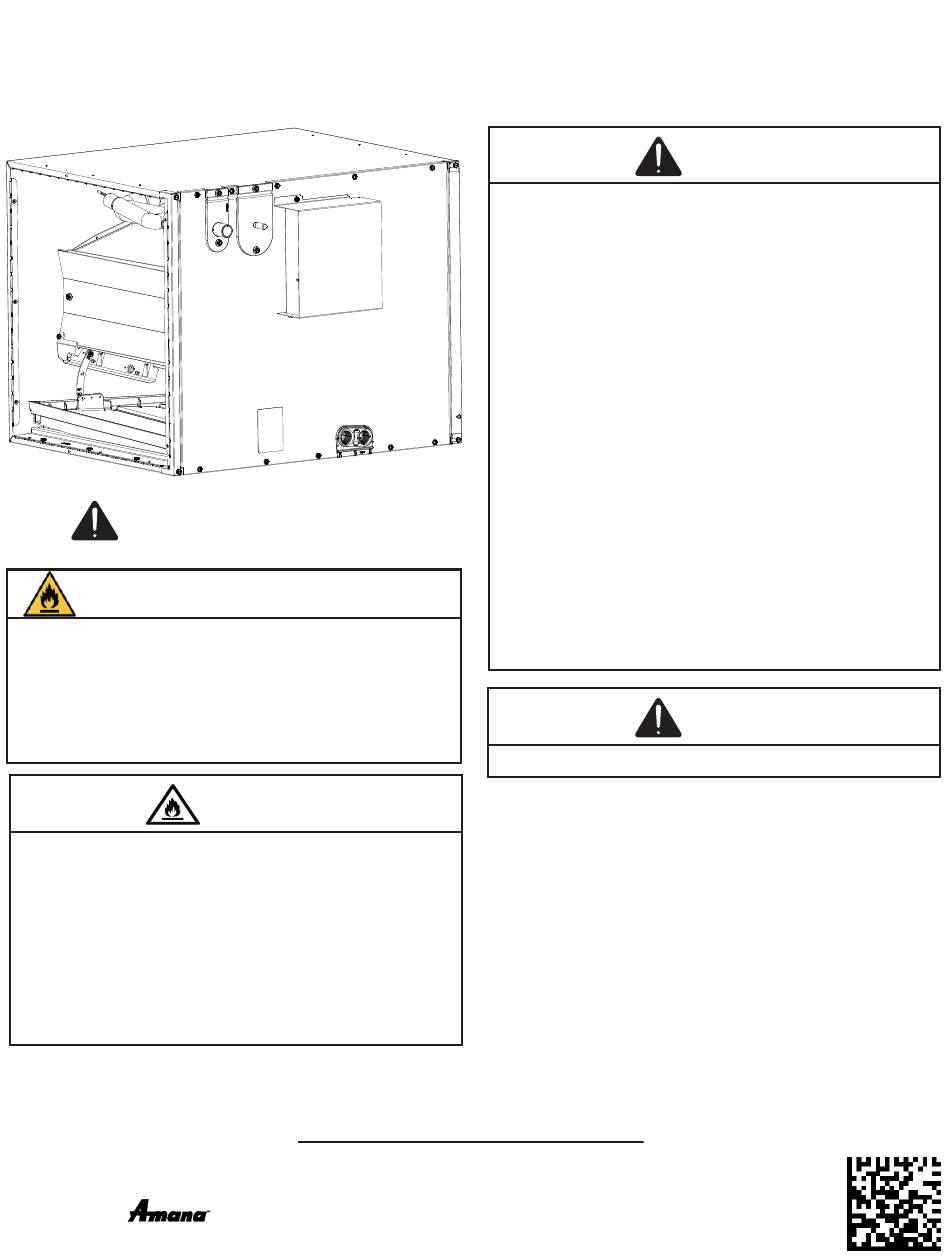

CHPEA Series Two Way

Horizontal Cased Coil

Installation Instructions

RECOGNIZE THIS SYMBOL

Figure 2

AS A SAFETY PRECAUTION.

Actual Coil Figure

WARNING: FLAMMABLE MATERIALS

DO NOT USE MEANS TO ACCELERATE THE DEFROSTING

PROCESS OR TO CLEAN, OTHER THAN THOSE RECOMMENDED

BY THE MANUFACTURER. THE APPLIANCE SHALL BE STORED

IN A ROOM WITHOUT CONTINUOUSLY OPERATING IGNITION

SOURCES (FOR EXAMPLE: OPEN FLAMES, AN OPERATING

GAS APPLIANCE OR AN OPERATING ELECTRIC HEATER. DO

NOT PIERCE OR BURN. BE AWARE THAT REFRIGERANTS MAY

NOT CONTAIN AN ODOR.

If any hot work is to be conducted on the refrigerating

equipment or any associated parts, appropriate fire

extinguishing equipment shall be available on hand. Have

a dry powder or CO

fire extinguisher adjacent to the

charging area.

Ensure that the area is in the open or that it is

adequately ventilated before breaking into the system

or conducting any hot work. A degree of ventilation

shall continue during the period that the work is carried

out. The ventilation should safely disperse any released

refrigerant and preferably expel it externally into the

atmosphere.

IO-459A

08/2024

WARNING

19001 Kermier Rd., Waller, TX 77484

www.daikincomfort.com • www.goodmanmfg.com •www.amana-hac.com

is a registered trademark of Maytag Corporation or its related companies and is used under license.

Only personnel that have been trained to install, adjust,

service, maintenance or repair (hereinafter, "service")

the equipment specified in this manual should service the

equipment.

This equipment is not intended for use by persons

(including children) with reduced physical, sensory or

mental capacities, or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety.

Children should be supervised to ensure that they do not

play with the equipment.

The manufacturer will not be responsible for any injury

or property damage arising from improper supervision,

service or service procedures. If you service this unit, you

assume responsibility for any injury or property damage

which may result. In addition, in jurisdictions that require

one or more licenses to service the equipment specified in

this manual, only licensed personnel should service the

equipment. Improper supervision, installation, adjustment,

servicing, maintenance or repair of the equipment specified

in this manual, or attempting to install, adjust, service

or repair the equipment specified in this manual without

proper supervision or training may result in product

damage, property damage, personal injury or death.

Do not bypass safety devices.

WARNING

Table of Contents

Troubleshooting

Need help?

Do you have a question about the CHPEA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Daikin CHPEA Series

Page 1 19001 Kermier Rd., Waller, TX 77484 © 2024 Daikin Comfort Technologies Manufacturing, L.P. www.daikincomfort.com • www.goodmanmfg.com •www.amana-hac.com is a registered trademark of Maytag Corporation or its related companies and is used under license.
Page 2: Table Of Contents
Table of Contents GROUND. A DEDICATED GROUND FROM THE MAIN POWER SUPPLY OR AN EARTH GROUND MUST BE Important Safety Instructions ............2 PROVIDED. Shipping Inspection ................4 2.1 Parts ..................... 4 2.2 Handling ..................4 3 Codes & Regulations ................. 4 4 Replacement Parts................
Page 3 CO can cause serious illness including permanent brain damage or death. Advertencia especial para la instalación de calentadores ó manejadoras de aire en áreas cerradas como estacionamientos ó cuartos de servicio. Las emisiones de monóxido de carbono pueden circular a través del aparato cuando se opera en cualquier modo.
Page 4: Shipping Inspection
IO-453(*) IO-459 (*) PRE-INSTALLATION CONSIDERATIONS 5.1 Preparation NOTE: CHPEA coils to be matched with Daikin family communicating furnaces only. Refer to section 5.2 for Metal Fittings Kit Components system matches. Keep this document with the unit. Carefully read all instructions for the installation prior to installing product.
Page 5: Clearances
NOTE: Furnace application requires that the installer Isometric view of sensor bracket assy (back view) MUST review and strictly follow ALL furnace installation Scenario 1: Amana brand / Goodman / Daikin Furnace clearance guidelines. Failure to do so may result in PCB with R32 sensor compatibility.
Page 6: Access
Cased Coil Mitigation Chart Minimum Air Minimum Air Minimum Maximum Maximum Minimum Conditioned Conditioned Mitigation Total System Total System Mitigation Room Area Room Area Airflow Model Refrigerant Refrigerant Airflow Charge Charge (oz) (kg) (CFM) /hr) 1.5T Match-up 3.74 11.12 366.87 2.0T Match-up 3.74 11.12...
Page 7: Coil To Furnace Connection
WARNING The only auxiliary devices approved by the appliance manufacturer or declared suitable with the refrigerant shall be installed in connecting ductwork. If an existing device is not approved by the appliance manufacturer for use with the refrigerant, The device must be removed or disconnected.
Page 8 unit to a furnace one size smaller. If the plenum PLENUM and furnace openings are the same size, the filler DUCT BOARD SHEET COIL plates must be removed. See Figure 4. METAL OR OTHER FILLER MATERIAL DETAIL TOP FLANGE VIEW FURNACE BLOCK OFF PLATE...
Page 9: Drain Pan Extension
7 DRAIN PAN EXTENSTION CAUTION If drain pan extension is not locked correctly, airflow path will be blocked and flooding may occur. 7.1 Drain Pan Extension for Horizontal Left A drain pan extension is shipped with coil in the accessory kit box (Figure 7A). This extension is to be Figure 7C Before and After Drain Pan Extension has been Installed used only for horizontal left application used only for...
Page 10: Tubing Size/Length
The minimum test pressure for the low side of the system shall be the low side design pressure and the minimum test WARNING pressure for the high side of the system shall be the high side design pressure. If the high side of the system cannot WORK SHALL BE UNDERTAKEN UNDER A CONTROLLED be isolated from the low side of the system, the entire system PROCEDURE TO MINIMIZE RISK OF FLAMMABLE GAS...
Page 11: Connect Piping
connectors located on the outside of the control available. Ensure that when brazing, any labels or wiring is panel. See Figure10. sufficiently protected from damage. • Remove the control panel. The control panel is • Remove Front panel while cautiously guiding detached from the front panel by removing the five component wiring back through panel wireway mounting screws located on the four corners of the...
Page 12: Re-Assemble The Coil And Controls
For system evacuation follow the below procedure: CAUTION 1. Connect the vacuum pump with 250 micron capability to the service valves. When brazing the refrigerant piping, perform nitrogen replacement first or perform the brazing while feeding 2. Evacuate the system to 500 microns or less using nitrogen into the refrigerant piping.
Page 13: Sealing Along The Panel Gap
11 DRAIN PIPING WORK appropriate purging gas. The system shall be leak-tested on completion of charging but prior In all cooling applications where condensate overflow may to commissioning. A follow up leak test shall be cause damage, a MANDATORY secondary drain pan must carried out prior to leaving the site.
Page 14: Electrical Wiring Work
airstream during blower operation. NOTE: This cased coil DOES NOT have auxiliary alarm switch feature. • In a blow-through application, the drain trap prevents conditioned air from escaping. It is permissible in this IMPORTANT NOTE: The coil is fabricated with oils that may application to use a shallow trap design, sometimes dissolve styrofoam and certain types of plastics.
Page 15: Sensor And Accessory Wiring
sure to use insulated terminals. Check that wiring will not be subject to wear, corrosion, • Do not turn on the power supply (circuit breaker or a excessive pressure, vibration, sharp edges or any other GFCI) until all other work is done. adverse environmental effects.
Page 16: Wire Sizing
Measure the primary side power supply to the gas furnace or modular blower. Selection of correct supply voltage for transformer depends on measured primary side power supply to gas furnace or modular blower. The supply voltage must be measured and be in agreement with the equipment’s unit nameplate power requirements and within the range shown.
Page 17: Installation Bracket - "B
wires. NOTE: Based on furnace selection, use the following table to determine appropriate PCB transformer bracket. Bracket Type Cabinet Model Name Bracket Bracket Width Bracket Upflow 80% Upflow 97% Upflow 96% Upflow 80% & 96% ULN Downflow 80% Furnace Downflow 97% 17.5"...
Page 18 FIELD SUPPLIED SELF DRILLING SCREWS 1.00 1.00 CASED COIL PCB TRANSFORMER USE THIS STOCK SCREW HOLE Figure 23 Figure 24 FOR 80% ULN / 96% ULN DOWNFLOW 21” CABINET FIELD SUPPLIED SELF-DRILLING SCREWS 1.25 1.75 CASED COIL PCB TRANSFORMER Figure 24 80% ULN / 96% ULN &...
Page 19: Wiring Transformer And Pcb
USE THIS STOCK SCREW WARNING When doing the wiring, make sure that wiring is neat and does not touch sharp edge of sheet metal and does not cause the control panel to stick up, and then close the cover firmly. When attaching the control cover, make sure you do not pinch any wires.
Page 20: Wire Harness Instructions
8. View Figure 28 for reference of Wire Harness NOTE: Only use approved communicating thermostats. Setup. Approved communicating thermostats are Daikin ONE+ smart thermostat and Amana brand smart thermostat. NOTE: A plug connector is provided with the control to make thermostat wire connections. Wire nuts are recommended to ensure one wire is used for each terminal.
Page 21: Two-Wire Outdoor And Four-Wire Indoor Wiring
MISCELLANEOUS START-UP required wires are: data lines, 1 and 2; “R” (24 VAC hot) and “C” (24 VAC common). CHECKLIST • Prior to start-up, ensure that all electrical wires are Communicating Thermostat properly sized and all connections are properly tightened. •...
Page 22: Electrostatic Discharge (Esd) Precautions
4. Discharge your body’s electrostatic charge to ground • Red communications LED - Indicates the status of before removing a new control from its container. the network. The Communications Troubleshooting Follow steps 1 through 3 if installing the control Chart on the following page indicates the LED status on a unit.
Page 23 off air conditioners for several minutes on hot days. If you wait several minutes, the unit may begin operation on its own. • Check the electrical panel for tripped circuit breakers or failed fuses. Reset the circuit breakers or replace fuses as necessary.
Page 24: Communications Troubleshooting Chart
COMMUNICATIONS TROUBLESHOOTING CHART Indication Possible Causes Corrective Action(s) Notes & Cautions Status None None None None     Communi ca ti ons Communi ca ti ons Depres s Lea rn Button Depres s once qui ckl y for ...
Page 25: Troubleshooting
TROUBLESHOOTING Error PCB LED ClimateTalk DESCRIPTION POSSIBLE CAUSES CORRECTIVE ACTIONS CODE DISPLAY MESSAGE • Assure 24 volt power to blower and control board. Check fuse F2U • Manual disconnect switch OFF No display • No 24 volt power to PCB on control board INTERNAL •...
Page 26: Segment Led Codes
7 SEGMENT LED CODES 7 SEGMENT DESCRIPTION OF CONDITION ERROR MESSAGE LED DISPLAY Normal Operation EMERGENCY MODE DATA NOT ON NETWORK Data Not Yet On Network INVALID MEMORY CARD DATA Invalid Memory Card data EEV DISCONNECTION DETECTED EEV OPEN CKT LIQUID SIDE THERMISTOR ABNORMALITY LIQ TEMP FLT GAS SIDE THERMISTOR ABNORMALITY...
Page 27: Setting The Mode Display
SETTING THE MODE DISPLAY MODE DISPLAY INTRODUCTION A 2-digit display is provided on the printed circuit board (PCB) as a backup tool to the thermostat for accessing error codes and erasing error code history of the indoor unit. Follow the information provided in this section to learn how to use the mode display DISPLAY The display consists of 2 digits.
Page 28 SETTING THE MODE DISPLAY <SCREEN ZERO> First Error Code Idle Release Fault Recall in less than 2 sec mins. Pres ault Recall for Error Code Second Error Code Hold Fault Recall for more than 2 sec Solid Display Press Fault Recall for Error Code Release Fault Recall between 2...
Page 29: Wiring Diagram
WIRING DIAGRAM HIGH VOLTAGE! ISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT ULTIPLE POWER SOURCES MAY BE PRESENT AILURE TO DO SO MAY CAUSE PROPERTY DAMAGE PERSONAL INJURY OR DEATH ACC-IN ACC-OUT WIRING TB10 115/208/230VAC (SEE NOTE 7) DATA SHARE 60 Hz PRESSURE SEG2...
Page 30 CASED COIL CASED COIL HOMEOWNER’S ROUTINE MAINTENANCE RECOMMENDATIONS We strongly recommend a bi-annual maintenance checkup be performed before the heating and cooling seasons begin by a qualified servicer. REPLACE OR CLEAN FILTER cleaning method is to use one of the products listed in TP- 109* to clean the coils.
Page 31: Start-Up Checklist
START-UP CHECKLIST Air Handler / Coil Model Number Serial Number ELECTRICAL Line Voltage (Measure L1 and L2 Voltage) L1 - L2 Secondary Voltage (Measure Transformer Output Voltage) R - C Blower Amps Heat Strip 1 - Amps Heat Strip 2 - Amps BLOWER EXTERNAL STATIC PRESSURE Return Air Sta�c Pressure IN.
Page 32: Customer Feedback
That’s why we know. . .There’s No Better Quality. 19001 Kermier Rd., Waller, TX 77484 © 2024 Daikin Comfort Technologies Manufacturing, L.P. www.daikincomfort.com • www.goodmanmfg.com •www.amana-hac.com is a registered trademark of Maytag Corporation or its related companies and is used under license.

This manual is also suitable for:

Chpea2422b3 Chpea3026b3 Chpea3026c3 Chpea3626b3 Chpea3626c3 Chpea4830c3 ... Show all
