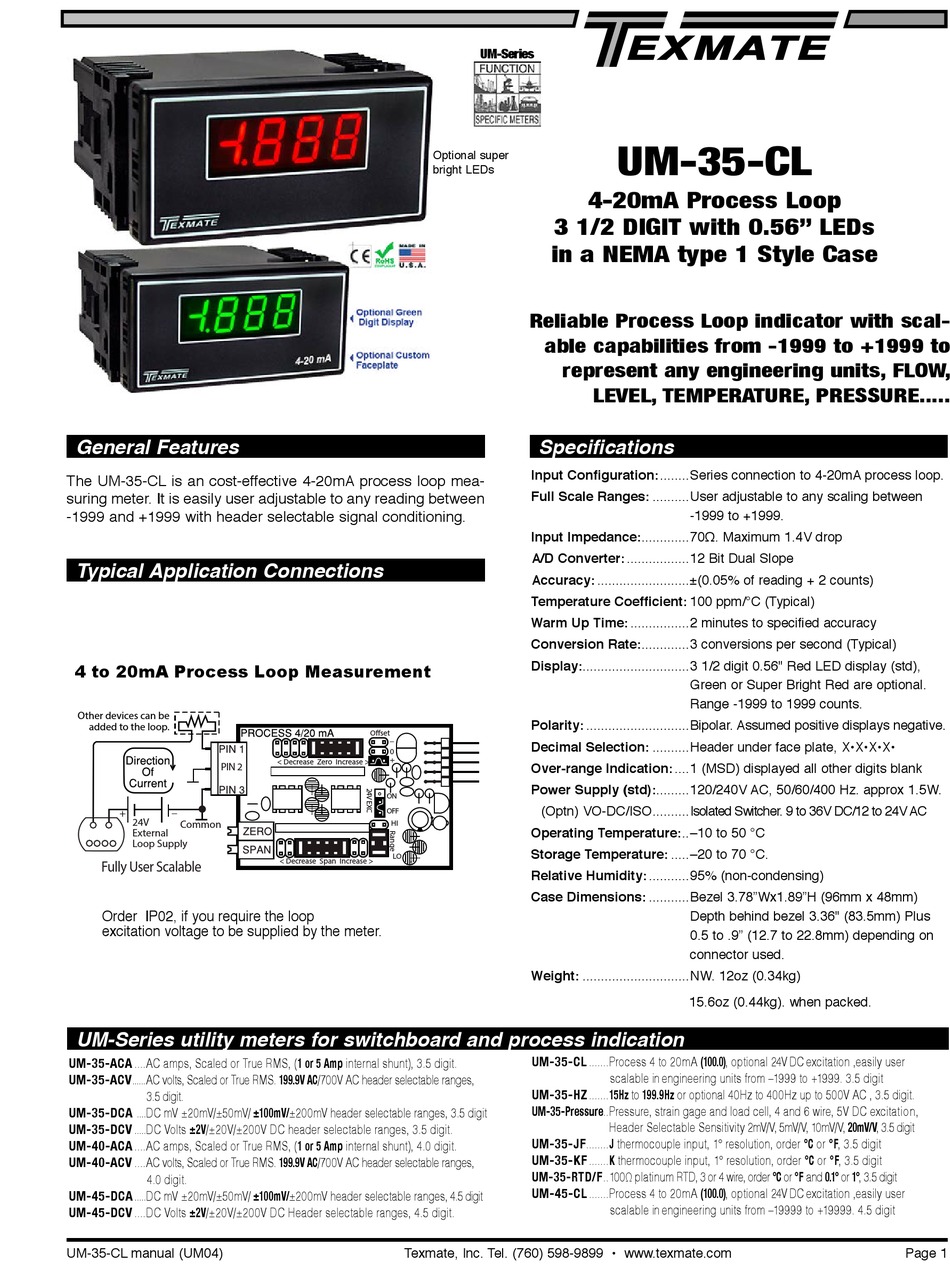

Texmate UM series User Manual

General Features

The UM-35-CL is an cost-effective 4-20mA process loop mea-
suring meter. It is easily user adjustable to any reading between
-1999 and +1999 with header selectable signal conditioning�
Typical Application Connections
4 to 20mA Process Loop Measurement
Other devices can be
added to the loop.
PIN 2
_
+
24V
Common
External
Loop Supply
Fully User Scalable
Order IP02, if you require the loop
excitation voltage to be supplied by the meter.
UM-Series utility meters for switchboard and process indication
UM-35-ACA ....AC amps, Scaled or True RMS, (1 or 5 Amp internal shunt), 3.5 digit.
UM-35-ACV ......AC volts, Scaled or True RMS. 199.9V AC/700V AC header selectable ranges,
3.5 digit.
UM-35-DCA ....DC mV ±20mV/±50mV/ ±100mV/±200mV header selectable ranges, 3.5 digit
UM-35-DCV .....DC Volts ±2V/±20V/±200V DC header selectable ranges, 3.5 digit.
UM-40-ACA ....AC amps, Scaled or True RMS, (1 or 5 Amp internal shunt), 4.0 digit.
UM-40-ACV ....AC volts, Scaled or True RMS. 199.9V AC/700V AC header selectable ranges,
4.0 digit.
UM-45-DCA .....DC mV ±20mV/±50mV/ ±100mV/±200mV header selectable ranges, 4.5 digit
UM-45-DCV ....DC Volts ±2V/±20V/±200V DC Header selectable ranges, 4.5 digit.
UM-35-CL manual (UM04)
Optional super
bright LEDs
O set
< Decrease Zero Increase >
ON
OFF
HI
LO
< Decrease Span Increase >
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com
UM-Series
UM-35-CL
4-20mA Process Loop

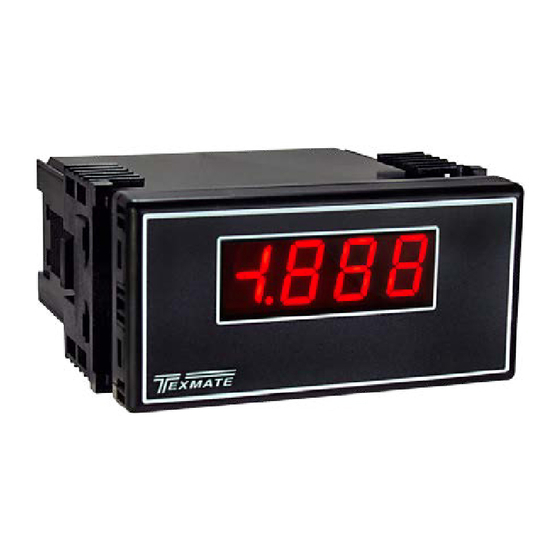

3 1/2 DIGIT with 0.56" LEDs
in a NEMA type 1 Style Case
Reliable Process Loop indicator with scal-
able capabilities from -1999 to +1999 to
represent any engineering units, FLOW,
LEVEL, TEMPERATURE, PRESSURE.....

Specifications

Input Configuration: ��������Series connection to 4-20mA process loop�
Full Scale Ranges: ����������User adjustable to any scaling between
Input Impedance: �������������70Ω. Maximum 1.4V drop
A/D Converter: �����������������12 Bit Dual Slope
Accuracy: �������������������������±(0�05% of reading + 2 counts)
Temperature Coefficient: 100 ppm/°C (Typical)
Warm Up Time: ����������������2 minutes to specified accuracy
Conversion Rate: �������������3 conversions per second (Typical)
Display:�����������������������������3 1/2 digit 0�56" Red LED display (std),
Polarity: ����������������������������Bipolar� Assumed positive displays negative�
Decimal Selection: ����������Header under face plate, X•X•X•X•
Over-range Indication: ����1 (MSD) displayed all other digits blank
Power Supply (std): ���������120/240V AC, 50/60/400 Hz. approx 1.5W.
(Optn) VO-DC/ISO ����������Isolated Switcher. 9 to 36V DC/12 to 24V AC
Operating Temperature: ��–10 to 50 °C
Storage Temperature: �����–20 to 70 °C�
Relative Humidity: �����������95% (non-condensing)
Case Dimensions: �����������Bezel 3.78"Wx1.89"H (96mm x 48mm)
Weight: �����������������������������NW. 12oz (0.34kg)
UM-35-CL .......Process 4 to 20mA (100.0), optional 24V DC excitation ,easily user
scalable in engineering units from –1999 to +1999. 3.5 digit
UM-35-HZ .......15Hz to 199.9Hz or optional 40Hz to 400Hz up to 500V AC , 3.5 digit.
UM-35-Pressure..Pressure, strain gage and load cell, 4 and 6 wire, 5V DC excitation,
Header Selectable Sensitivity 2mV/V, 5mV/V, 10mV/V, 20mV/V, 3.5 digit
UM-35-JF ........J thermocouple input, 1° resolution, order °C or °F, 3.5 digit
UM-35-KF .......K thermocouple input, 1° resolution, order °C or °F, 3.5 digit
UM-35-RTD/F ..100Ω platinum RTD, 3 or 4 wire, order °C or °F and 0.1° or 1°, 3.5 digit
UM-45-CL .......Process 4 to 20mA (100.0), optional 24V DC excitation ,easily user
scalable in engineering units from –19999 to +19999. 4.5 digit
-1999 to +1999�
Green or Super Bright Red are optional�
Range -1999 to 1999 counts�
Depth behind bezel 3.36" (83.5mm) Plus
0.5 to .9" (12.7 to 22.8mm) depending on
connector used�
15.6oz (0.44kg). when packed.
