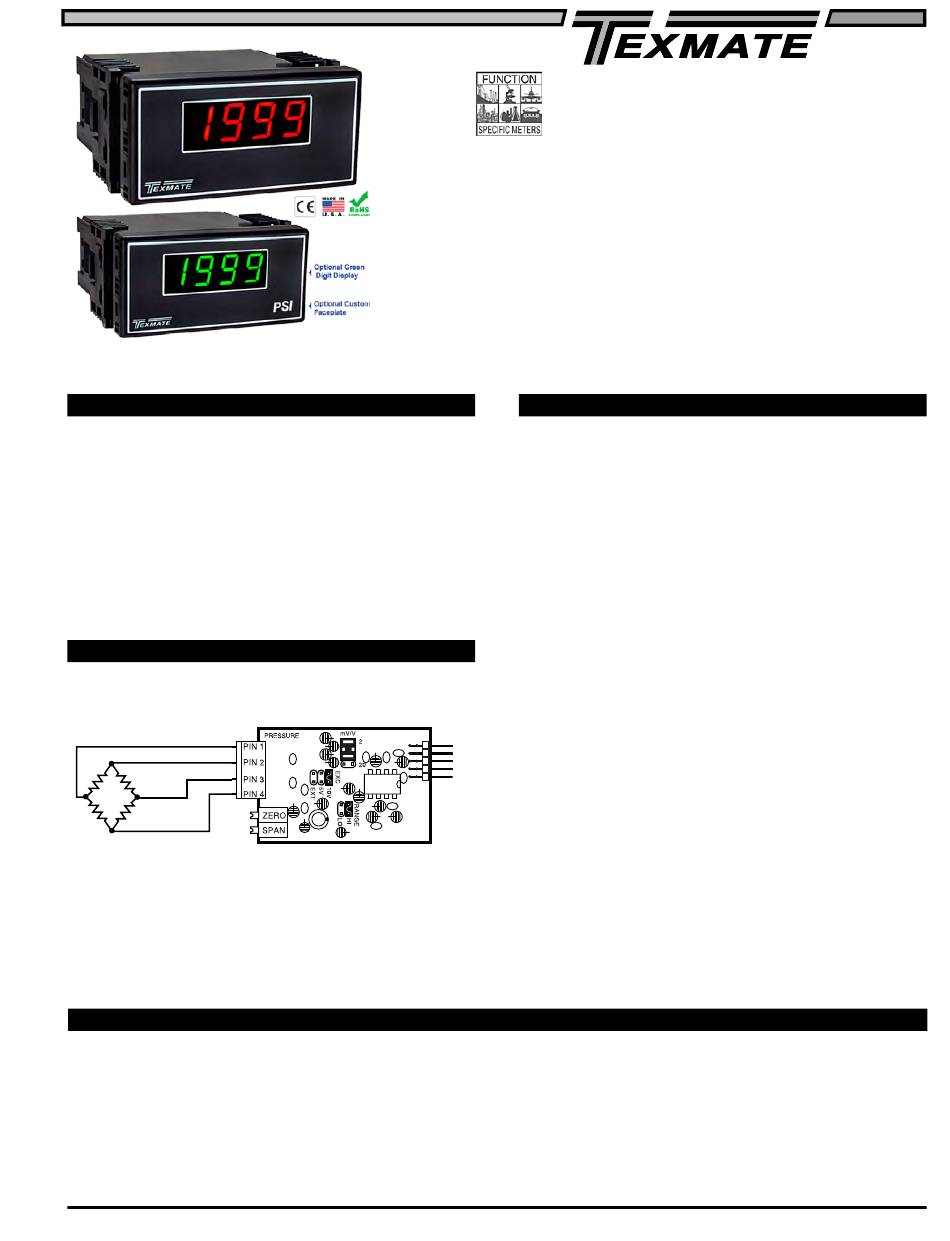

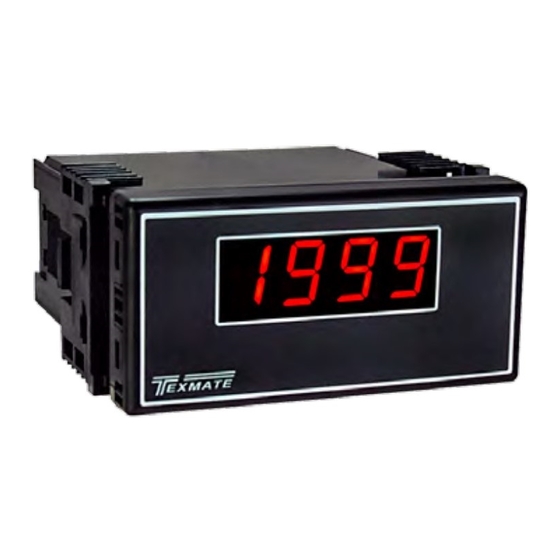

Texmate UM-35-SG Manual

General Features

The UM-35-SG has two header selectable trans duc er output
ranges of 2mV/V and 20mV/V� Both ranges can provide a full
scale display of 2000 counts from the precision ratiometrically
compensated 5V or 10V DC excitation provided by the meter�
The meter accepts 4 Wire, and like all UM-Series meters, is
easily scaled to display in en gi neer ing units such as psi, bar,
kbar, kpa, feet, lbs, and tons�

Typical Application Connections

IS05 : Pressure/Load Cell 2/20mV/V, 5/10V Exc 4-wire
Input Hi
+Exc
Input Lo
_ Exc
PRESSURE TRANSDUCER
Low Range Adjustment : 0-1000 counts
Hi Range Adjustment : 1001-1999 counts
UM-Series utility meters for switchboard and process indication
UM-35-ACA ....AC amps, Scaled or True RMS, (1 or 5 Amp internal shunt), 3.5 digit.
UM-35-ACV ......AC volts, Scaled or True RMS. 199.9V AC/700V AC header selectable ranges,
3.5 digit.
UM-35-DCA ....DC mV ±20mV/±50mV/ ±100mV/±200mV header selectable ranges, 3.5 digit
UM-35-DCV .....DC Volts ±2V/±20V/±200V DC header selectable ranges, 3.5 digit.
UM-40-ACA ....AC amps, Scaled or True RMS, (1 or 5 Amp internal shunt), 4.0 digit.
UM-40-ACV ....AC volts, Scaled or True RMS. 199.9V AC/700V AC header selectable ranges,
4.0 digit.
UM-45-DCA .....DC mV ±20mV/±50mV/ ±100mV/±200mV header selectable ranges, 4.5 digit
UM-45-DCV ....DC Volts ±2V/±20V/±200V DC Header selectable ranges, 4.5 digit.
UM-35-SG manual (UM09)
UM-Series
Optional super
bright LEDs
Pressure or Load Cell Meter
3 1/2 DIGIT with 0.56" LEDs
in a NEMA type 1 Style Case
An cost-effective meter to measure 4 wire pressure
transducers, strain gauges and load cells. .

Specifications

Input Configuration: ��������Differential
Full Scale Ranges: ����������Accepts inputs from 2mV/V or 20mV/V
Excitation �������������������������5V or 10V DC� Ratiometrically
A/D Converter: �����������������12 Bit Dual Slope
Accuracy: �������������������������±(0�05% of reading + 2 counts)
Temperature Coefficient: 100 ppm/°C (Typical)
Warm Up Time: ����������������2 minutes to specified accuracy
Conversion Rate: �������������3 conversions per second (Typical)
Display:�����������������������������3 1/2 digit 0�56" Red LED display (std),
Decimal Selection: ����������Header under face plate, X•X•X•X•
Over-range Indication: ����1 (MSD) displayed all other digits blank
Power Supply (std): ���������120/240V AC, 50/60/400 Hz� approx 1�5W�
(Optn) VO-DC/ISO ����������Isolated Switcher� 9 to 36V DC/12 to 24V AC
Operating Temperature: ��–10 to 50 °C
Storage Temperature: �����–20 to 70 °C�
Relative Humidity: �����������95% (non-condensing)
Case Dimensions: �����������Bezel 3�78"Wx1�89"H (96mm x 48mm)
Weight: �����������������������������NW� 12oz (0�34kg)
UM-35-CL .......Process 4 to 20mA (100.0), easily user scalable in engineering units from
UM-35-HZ .......15Hz to 199.9Hz or optional 40Hz to 400Hz up to 500V AC , 3.5 digit.
UM-35-Pressure..Pressure, strain gage and load cell, 4 and 6 wire, 5V DC excitation,
UM-35-JF ........J thermocouple input, 1° resolution, order °C or °F, 3.5 digit
UM-35-KF .......K thermocouple input, 1° resolution, order °C or °F, 3.5 digit
UM-35-RTD/F ..100Ω platinum RTD, 3 or 4 wire, order °C or °F and 0.1° or 1°, 3.5 digit
UM-45-CL .......Process 4 to 20mA (100.0), easily user scalable in engineering units from
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com
UM-35-SG
trans duc ers
compensated to operate with all transducer
output ranges�
Green or Super Bright Red are optional�
Range 0 to 1999 counts�
Depth behind bezel 3�36" (83�5mm) Plus
0�5 to �9" (12�7 to 22�8mm) depending on
connector used�
15�6oz (0�44kg)� when packed�
–1999 to +1999. 3.5 digit
Header Selectable Sensitivity 2mV/V, 5mV/V, 10mV/V, 20mV/V, 3.5 digit
–19999 to +19999. 4.5 digit
Page 1
