Texmate BX-B31 Quick Start Manual

General Features

• 31 segment AC/DC powered modular compact bargraph.
• 1/16 DIN (96 x 24mm ) case easily mounts in thin or thick
panels (up to 2").
• Red (std), green (optional) or amber (optional) colors.
• Vertical or horizontal formats.
• External transmitters or signal conditioners can be eliminated
by directly connecting the sensor to more than 33 I-Series
Plug-in Input Signal Conditioning Modules that include:
- AC Current
- AC Voltage
- DC Current
- DC Voltage
- Load Cell
- Pressure
• Pre-calibrated I-Series Input Signal Conditioning modules, that
have span or zero potentiometers, can be interchanged between
any I-Series compatible meter, without recalibration, because all
of the analog scaling and reference circuitry is self-contained with-
in the module.
• 24 V DC excitation is available to power external transmitters
and 5 or 10 V DC excitation is available for strain-gages, load
cells and resistance bridge type sensors.
• High voltage power supply (PS1) 85 - 265VAC / 95 - 370VDC
Low voltage power supply (PS2) 15 - 48VAC / 10 - 72VDC
• Optional single or dual setpoints with easy adjustment
from the front.
• Dual 5A Form "A" relays or one 5A Form "A" and one 10A
Form "C" relays.
• Easy configuration of relays as high or low setpoints.
• Proportional brightness mode for increased effective opti-
cal resolution.
Case Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Component Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Functional Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
I-Series Input Signal Conditioning Modules . . . . . . . . . . . .4-5
BX-B31 Data Sheet (BX3)
LYNX FAMILY
A versatile, modular bargraph with optional single or dual setpoints.
- Process
- Prototype
- Resistance
- Strain-gage
-Temperature
- 4 to 20 mA
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com

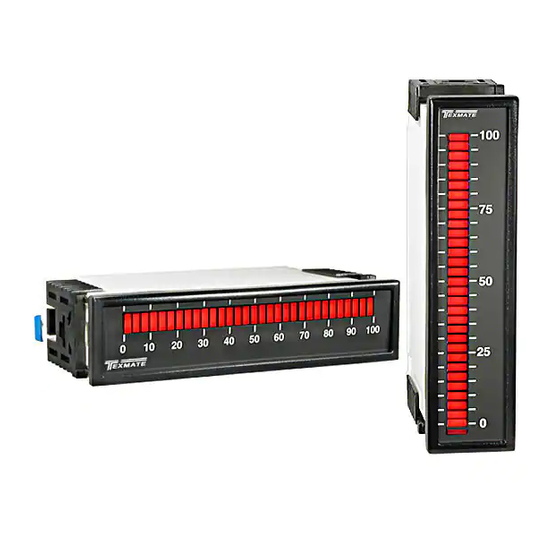

BX-B31
Lynx Bargraph Meter
31 LED Segments
in a 1/16 DIN Case

Input Module Compatibility

LYNX FAMILY: More than 33 different Plug-in
I-Series Input Signal Conditioners are approved for
Texmate's Lynx Family of meters. As shown on
pages 4 to 5.
See www.texmate.com for an up to date listing.

Specifications

Input Specs: ..............Depends on input signal conditioner
A/D Converter: ..........31 step flash converter
Accuracy: ..................±(0.05% of reading + 3 counts)
Temp. Coeff.: ............100 ppm/°C (Typical)
Warm up time: ..........2 minutes
Display:......................Thirty-one 0.2" x 0.06" (5.08 x 1.52mm)
Positive Overrange:..All segments flash.
Negative Overrange:..Zero segment flashes
Power Supply: ..........AC/DC Auto sensing wide range supply
PS1 (std) ................85-265 VAC / 95-370 VDC @ 2.5W
PS2 ........................15-48 VAC / 10-72 VDC @ 2.5W
Operating Temp.: ......0 to 60° C
Storage Temp: ..........-20° C to +70° C
Relative Humidity: ....95% (non condensing)
Case Dimensions: ....1/16 DIN, Bezel: 96x24mm(3.78"x0.95")
Weight: ......................198 gms (7 oz)
Index
Input Module Calibration Procedures . . . . . . . . . . . . . . . .6-7
Input Module Compatibility . . . . . . . . . . . . . . . . . . . . . . . . .1
Input Module Component Glossary . . . . . . . . . . . . . . . . . . .6
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
LED segments. Red display (std), green
(opt) or amber (opt)
Depth behind bezel 122.2 mm (4.83")
Plus 12.7mm (0.5") for Right-angled
connector.
255 gms (9 oz) when packed
LYNX
Page 1
