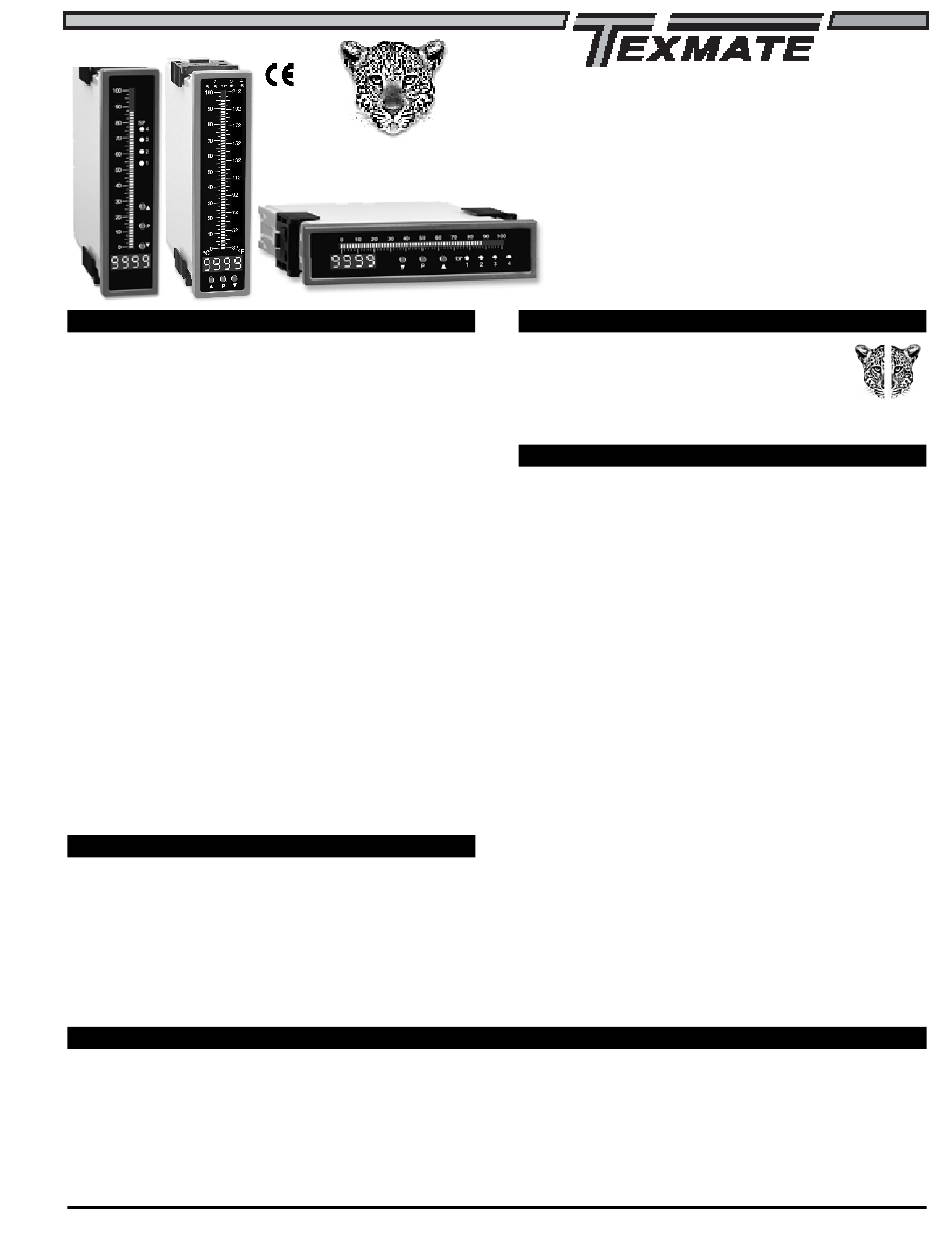

Texmate FL-B101D40H Manual

General Features

• Thermocouple (J, K, R and T types) or RTD (Pt-100. 385
and 392 curves. 3 wire/4wire). Digitally Linearized.
• Optional isolated 16 bit analog output. User or factory scal-
able to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across any
desired digital span from ± one count to the full scale range
of - 1999 to 9999 (12000 counts).
• A Programmable Tricolor (Red-Green-Orange) or mono
color (red or green), 101 segment high brightness bargraph.
Vertical or optional horizontal format.
• Red 4-digit LED display with a range of -1999 to 9999
(12000 counts). Optional green digital display.
• Front panel LED annunciators provide indication of setpoint status.
• Two 10 Amp Form C, and two 5 Amp Form A relays available
• Auto-sensing AC/DC power supply. For voltages between
85-265 V AC / 95-370 V DC (PS1) or 18-48 V AC / 10-72 V
DC (PS2).
• 24 V DC excitation is available to power external 4/20mA
transmitters and 5 or 10 V DC excitation is available for
resistance bridge type sensors.
• Provision to connect an external programming lockout switch.
• Provision for external DIM switch to reduce the brightest
display setting by 50%.
• Optional NEMA-4 front cover.
• Automatic intelligent averaging, smooths noisy signals while
providing a fast display response to real level changes.

Software Features

• The bargraph can display, full
scale, any desired portion of
the digital reading.
• Bargraph center zero function.
• Four programmable setpoints.
• Setpoint 1 has delay-on-
make and delay-on-break
plus a special "pump on
pump off" mode that creates
a Hysteresis Band between
Bargraph Center Point Display Mode Selection. . 6
Bargraph Color Programming Mode . . . . . . . . 9
Case Dimensions . . . . . . . . . . . . . . . . . . . . . . 13
Component Layout . . . . . . . . . . . . . . . . . . . . . 11
Connector Pinouts . . . . . . . . . . . . . . . . . . . . . 10
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Controls and Indicators . . . . . . . . . . . . . . . . . . 2
Custom Faceplates and Scales . . . . . . . . . . . 15
Decimal Point and Brightness Selection . . . . . 5
May-29-2009 FL-B101D40H DS (FL8)
LEOPARD FAMILY
SP1 and SP2.
• Relay activation can be
selected to occur above (hi)
or below (Lo) each setpoint.
• Digital display blanking.
• Decimal point setting.
• Four-level brightness control
of the bargraph and digital
display.
Digital Span Selection for Display . . . . . . . . . . 5
Digital Span Selection for Analog Range Output . 6
Functional Diagram . . . . . . . . . . . . . . . . . . . . 10
General Features . . . . . . . . . . . . . . . . . . . . . . . 1
Lockable NEMA Splash Proof Case. . . . . . . . 13
I-Series Input Signal Conditioning Modules . . 12
Input Module Calibration Procedures. . . . . . . 12
Ordering Information . . . . . . . . . . . . . . . . . . . 16
Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . 10
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com
FL-B101D40H

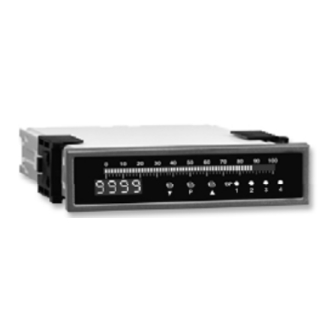

Leopard Bargraph Temperature Meter
101 Segment, 4 Digit 0.32" LEDs
in a 9/64 DIN CASE
programmable set points for J, K, R, and
T type thermocouples and RTD inputs.
Input Module Compatibility
There are 3 different Plug-in Modular Input Signal
Conditioners for this specialized temperature only
member of the Leopard Family. IT10 is for J, K, T
and R thermocouples. IT11 is for 3 wire/4 wire Pt-
100 RTD inputs. IT15 is for 3 wire/4 wire Pt-1000
RTD inputs.

Specifications

Input Specs: ..............Depends on Input signal conditioner
A/D Converter:...........14 bit single slope
Accuracy: ...................±(0.05% of reading + 2 counts)
Temp. Coeff.: .............100 ppm/°C (Typical)
Warm up time: ...........2 minutes
Conversion Rate: ......10 conversions per second (Typical)
Digital Display: ..........4 digit 0.31" LED red (std), green (optn)
Bargraph Display: .....101 segment 4" red vertical (std),
Polarity: ......................Assumed positive. Displays - negative
Decimal Selection: ....Front panel button selectable, X•X•X•X•
Positive Overrange: ..Bargraph and top segments of digital
Negative Overrange: .First segment of bargraph and bottom
Relay Output: ............Two 5 Amp Form A relays and Two
Analog Output: ..........Isolated 16 bit user scalable mA or V
OIC (mA out) ...........4-20 mA @ 0 to 500Ω max loop resistance
OIV (volts out) .......... 0-10 V DC @ 500 Ω or higher resistance
Power Supply: ...........AC/DC Auto sensing wide range supply
PS1 (std) ................85-265 VAC / 95-370 VDC @ 2.5W max 4.2W
PS2 .........................18-48 VAC / 10-72 VDC @ 2.5W max 4.2W
Operating Temp.: .......0 to 60°C
Storage Temp: ...........-20°C to 70°C
Relative Humidity: ....95% (non condensing)
Case Dimensions: .....9/64 DIN (Bezel 36Wx144Hmm)
Weight: .......................9.5 oz., 12 oz when packed
Index
Smart Tricolor or mono-color
digital bargraph with four fully
Range -1999 to 9999 counts.
green or tricolor (optn), horizontal (optn)
display flash.
segments of digital display flash.
10 Amp Form C relays.
Depth behind bezel (5.83") 148mm
Plus (0.7") 18mm for connectors
Programming Conventions . . . . . . . . . . . . . . . . 2
Setpoint Setting & Relay Configuration Mode . . 8-9
Software Features . . . . . . . . . . . . . . . . . . . . . . 1
Software Logic Tree . . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Standard Faceplates and Scales . . . . . . . . . . 14
Two Point Analog Output Range Setting & Cal. . 7
Thermocouple and RTD Type Selection Mode . . 4
Version 2
LEOPARD
Page 1
