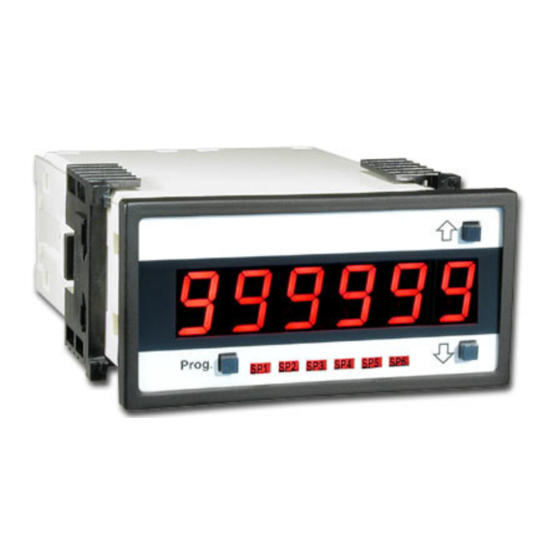

Texmate Tiger 320 Series User's Manual Supplement

Texmate Tiger 320 Series User's Manual Supplement

Advanced calibration & on demand mode
Hide thumbs Also See for Tiger 320 Series:
Table of Contents

Advertisement

Quick Links

Tiger 320 Series
Associated Documents
The following documents must be read
together with this supplement:
Relevant Tiger 320 Series User Manual
The user manual provides general information
on the relevant Tiger 320 Series meter.
Tiger 320 Series Programming Code Sheet
Programming Code Sheet (NZ0) pro-
vides all meter programming codes includ-
ing setpoint programming codes.
Analog Output Module Supplement (NZ200)
This supplement provides detailed descrip-
tions of the analog output module.
Serial Communications Module
Supplement
Serial Communications Module
Supplement (NZ202) provides detailed
descriptions of the linearizing function.
Linearizing Supplement (NZ207)
This supplement provides detailed descrip-
tions of the linearizing function.
Totalizing Supplement (NZ208)
This supplement provides detailed descrip-
tions of the totalizing function.
This document was written using Tiger
320 Series Code Version 3 .02n .
The totalizer for earlier versions of code
may differ to that shown.
Consult your Programming Code Sheet
(NZ101) for relevant totalizer settings.
Programming Tip
This document has been written
using a DI-50 7-segment, 5-digit
display meter. When program-
ming meters with other display
options, some display readings
may vary to the diagrams shown.
Calibration Mode (NZ203)
ADVANCED CALIBRATION & ON DEMAND MODE SUPPLEMENT
This document is designed to supplement the calibration mode informa-
tion described in Tiger 320 Series user manuals.
Calibration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Calibration Mode Programming Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Technical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
On Demand Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Input & Output Signal Calibration Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Related Calibration Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
On Demand Tare Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
On Demand Single-point Calibration Procedures . . . . . . . . . . . . . . . . . . . . . . . 20
On Demand Two-point Calibration Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 21
On Demand Primary Input Compensation Procedures . . . . . . . . . . . . . . . . . . . 22
On Demand Manual Loader Mode Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Manual Calibration Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Two-point Calibration Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Thermocouple Calibration Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
RTD Calibration Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Analog Output Calibration Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Serial Comunnications Properties Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Auto Zero Maintenance Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Averaging Samples & Averaging Window Procedure . . . . . . . . . . . . . . . . . . . . 42
Totalizer Settings Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
32-point Linearization Table Setup Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 45
List of Figures
Figure 1 - Calibration Mode Programming Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Figure 3 - Linearization Table De-activate/Re-activate Process . . . . . . . . . . . . . . . . . . . . . . 6
Figure 4 - On Demand Single-point Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 5 - On Demand Two-point Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 6 - On Demand Primary Input Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 7 - On Demand Manual Loader Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 8 - Two-point Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 0
Figure 9 - Thermocouple Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1
Figure 10 - RTD Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2
Figure 11 - Multimeter to Meter Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 3
Figure 12 - Input Signal Sampling Showing Averaging Window . . . . . . . . . . . . . . . . . . . . . . 1 5
Figure 13 - Linearization Table Date Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 7
Figure 14 - Multimeter to Meter Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 6
Figure 15 - Example of Manual and Auto Linearization Data . . . . . . . . . . . . . . . . . . . . . . . . 4 5
