Texmate LEOPARD Series Manual

Bargraph meter 101 segment, 4 digit 0.32” leds in a 9/64 din case
Hide thumbs Also See for LEOPARD Series:

Advertisement

Quick Links

General Features

External transmitters or signal conditioners can be eliminated
by direct connection of the sensor output to more than
40 Plug-in Input Signal Conditioners that include:
- AC/DC Current
- Pressure
- AC/DC Voltage
- Process
- Load Cell
- Prototype
Optional isolated 16 bit analog output. User or factory scal-
able to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across any
desired digital span from ± one count to the full scale range
of - 1999 to 9999 (12000 counts).
A Programmable Tricolor (Red-Green-Orange) or mono
color (red or green), 101 segment high brightness bargraph.
Vertical or optional horizontal format.
Red 4-digit LED display with a range of -1999 to 9999
(12000 counts). Optional green digital display.
Front panel LED annunciators provide indication of setpoint
status.
Two 10 Amp Form C, and two 5 Amp Form A relays available
Auto-sensing AC/DC power supply. For voltages between
85-265 V AC / 95-370 V DC (PS1) or 18-48 V AC / 10-72 V
DC (PS2).
24 V DC excitation is available to power external 4/20mA
transmitters and 5 or 10 V DC excitation is available for
resistance bridge type sensors.
Provision to connect an external programming lockout switch.
Provision for external DIM switch to reduce the brightest
display setting by 50%.
Optional NEMA-4 front cover.
Automatic intelligent averaging, smooths noisy signals while
providing a fast display response to real level changes.

Software Features

• The bargraph can display, full
scale, any desired portion of
the digital reading.
• Bargraph center zero function.
• Four programmable setpoints
with adjustable Hysteresis.
• Setpoint 1 has delay-on-
make and delay-on-break
plus a special "pump on
pump off" mode that creates
Case Dimensions . . . . . . . . . . . . . . . . . . . . . . . 7
Component Layout . . . . . . . . . . . . . . . . . . . . 11
Connector Pinouts . . . . . . . . . . . . . . . . . . . . 10
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Controls and Indicators . . . . . . . . . . . . . . . . . 2
Custom Faceplates and Scales . . . . . . . . . . 19
Apr-23-2009 FL-B101D40 DS (FL7)
LEOPARD FAMILY
- Resistance
- Temperature
- 4 to 20 mA
a Hysteresis Band between
SP1 and SP2.
• Relay activation can be
selected to occur above (hi)
or below (Lo) each setpoint.
• Digital display blanking.
• Decimal point setting.
• Four-level brightness control
accessed by the
button
and adjusted by the
button.
Functional Diagram . . . . . . . . . . . . . . . . . . . . 10
General Features . . . . . . . . . . . . . . . . . . . . . . . 1
Ordering Information . . . . . . . . . . . . . . . . . . . 20
Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . 10
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com

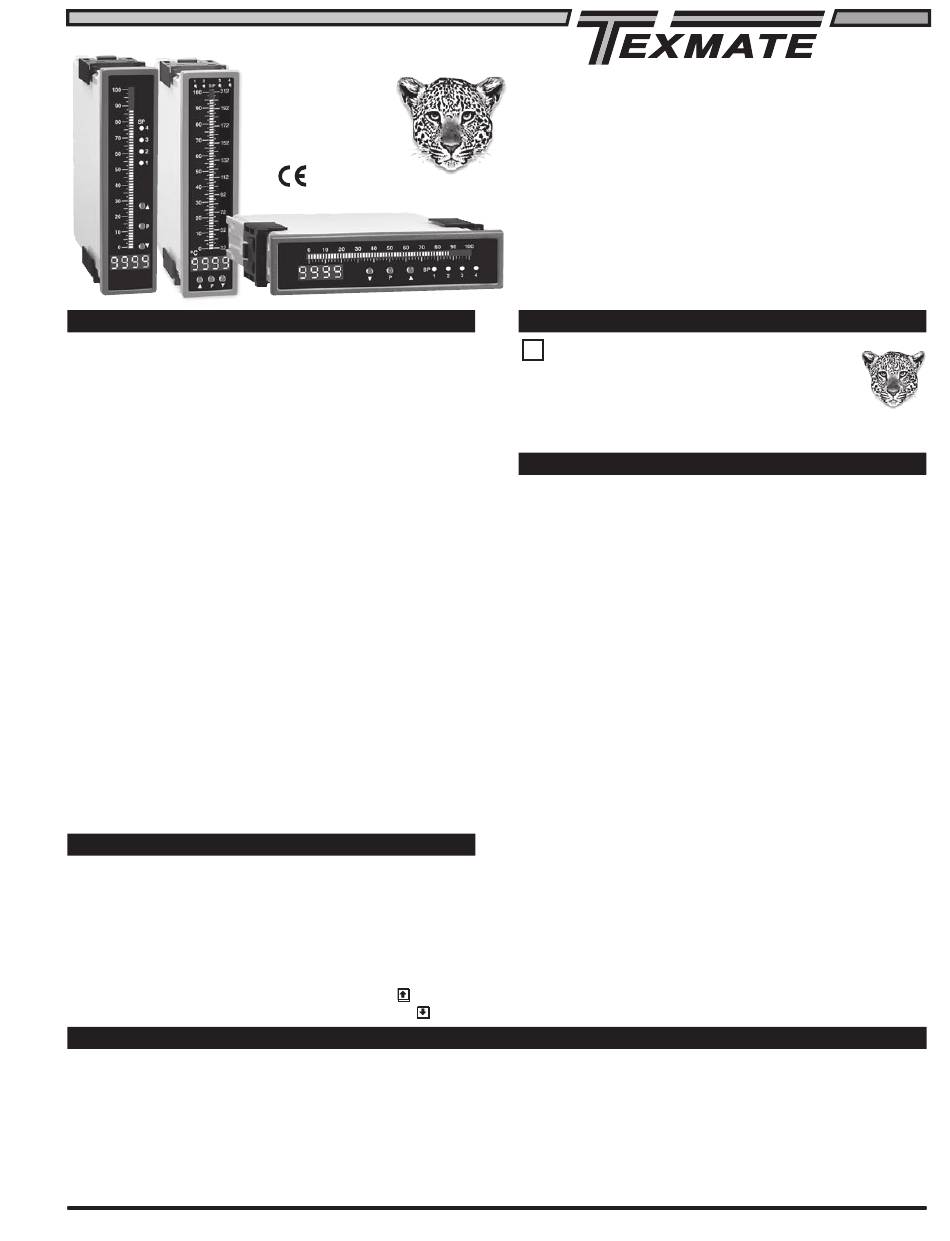

FL-B101D40
Leopard Bargraph Meter
101 Segment, 4 Digit 0.32" LEDs
in a 9/64 DIN CASE
Now featuring New Version 2.0 software
with one-color Brightness control, this smart
Tricolor or Mono-color digital bargraph has four
fully programmable set points for monitoring,
measurement, and control applications.
Input Module Compatibility
LEOPARD FAMILY: More than 38 different
Plug-in I-Series Input Signal Conditioners are
approved for Texmate's Leopard Family of meters.
Some examples are shown on pages 12 - 15.
See www.texmate.com for an up to date listing.

Specifications

Input Specs: ..............Depends on Input signal conditioner
A/D Converter:...........14 bit single slope
Accuracy: ...................±(0.05% of reading + 2 counts)
Temp. Coeff.: .............100 ppm/°C (Typical)
Warm up time: ...........2 minutes
Conversion Rate: ......10 conversions per second (Typical)
Digital Display: ..........4 digit 0.31" LED red (std), green (optn)
Bargraph Display: .....101 segment 4" red vertical (std),
Polarity: ......................Assumed positive. Displays - negative
Decimal Selection: ....Front panel button selectable, X•X•X•X•
Positive Overrange: ..Bargraph and top segments of digital
Negative Overrange: .First segment of bargraph and bottom
Relay Output: ............Two 5 Amp Form A relays and Two
Analog Output: ..........Isolated 16 bit user scalable mA or V
OIC (mA out) ...........4-20 mA @ 0 to 500Ω max loop resistance
OIV (volts out) .......... 0-10 V DC @ 500 Ω or higher resistance
Power Supply: ...........AC/DC Auto sensing wide range supply
PS1 (std) ................85-265 VAC / 95-370 VDC @ 2.5W max 4.2W
PS2 .........................18-48 VAC / 10-72 VDC @ 2.5W max 4.2W
Operating Temp.: .......0 to 60°C
Storage Temp: ...........-20°C to 70°C
Relative Humidity: ....95% (non condensing)
Case Dimensions: .....9/64 DIN (Bezel 36Wx144Hmm)
Weight: .......................9.5 oz., 12 oz when packed
Index
Version 2.0
Range -1999 to 9999 counts.
green or tricolor (optn), horizontal (optn)
display flash.
segments of digital display flash.
10 Amp Form C relays.
Depth behind bezel (5.83") 148mm
Plus (0.7") 18mm for connectors
Programming Conventions . . . . . . . . . . . . . . . 2
Software Features . . . . . . . . . . . . . . . . . . . . . . 1
Software Logic Tree . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 1
Standard Faceplates and Scales . . . . . . . . . 18
LEOPARD
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEOPARD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texmate LEOPARD Series

  • Page 1: Table Of Contents

    – Load Cell – Prototype – 4 to 20 mA See www.texmate.com for an up to date listing. • Optional isolated 16 bit analog output. User or factory scal- able to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across any Specifications desired digital span from ±...
  • Page 2: Controls And Indicators

    If an X appears through a digit, it means will appear only when a particular option is that any number displayed in that digit is not relevant to the function being explained. present. Page 2 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Apr-23-2009 FL-B101D40 DS (FL7)
  • Page 3: Software Logic Tree

    Any program changes that were made prior to pressing the button in the preceding step will not be saved. Apr-23-2009 FL-B101D40 DS (FL7) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 3...
  • Page 4: Two Point Digital Calibration Mode

    To Digital Span Selection for of the meter (12,000 counts between –1999 to 9999). Bargraph Display Page 5 No input signal present, or incorrect input signal connections. Page 4 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Apr-23-2009 FL-B101D40 DS (FL7)
  • Page 5: Decimal Point And Brightness Selection

    [Cto] and [oFF], the software is detecting that the optional analog for Analog Range Output or output hardware is NOT installed. Bargraph Center Point Display Mode Selection on Page 6 Apr-23-2009 FL-B101D40 DS (FL7) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 5...
  • Page 6: Bargraph Center Point Display Mode Selection

    When the procedure is complete, the digital display will then automatically switch off. The Display/Bargraph settings are now complete. Operational Display Page 6 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Apr-23-2009 FL-B101D40 DS (FL7)
  • Page 7: Case Dimensions

    Splash Proof Lens Cover (0.39") Connector 18.3mm (0.72") 117.5mm without damage to the case. P/N.(OP-N4/144X36 ) Straight-thru (0.20") (4.64") Connector Apr-23-2009 FL-B101D40 DS (FL7) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 7...
  • Page 8: Setpoint Setting & Relay Configuration Mode

    Display toggles between [rLYS] and the previous relay setting. STEP L Please Continue On Next Page. To Step M of Setpoint Setting and Relay Configuration Page 9 Page 8 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Apr-23-2009 FL-B101D40 DS (FL7)
  • Page 9: Bargraph Color Programming Mode

    The Bargraph Color programming mode is now complete. *Note: For horizontal display for- mats BELOW* should be read as, “to the left” and ABOVE* should be read as, “to the right”. Apr-23-2009 FL-B101D40 DS (FL7) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 9...
  • Page 10: Connector Pinouts

    ANALOG OUTPUT (+). mA (0 to 20 mA/4 to 20 mA) Pin 24 AC line / +DC. Live power supply line. or V (0 to 10 V) output is header selectable. Page 10 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Apr-23-2009 FL-B101D40 DS (FL7)
  • Page 11: Component Layout

    Low Voltage Transformer is Colored Black Low Voltage Main Board Connectors Standard plug-in screw terminal blocks provided by Texmate: WARNING AC and DC input signals and power supply voltages can be hazardous. Do Not connect live wires to ter- minal blocks, and do not insert, remove or handle terminal blocks with live wires connected.
  • Page 12: I-Series Input Signal Conditioning Modules

    Where appropriate, all the standard ranges shown are designed to be header selectable by the user, and Texmate's unique SPAN ADJUST Header facilitates scaling to almost any required engineering unit. See Input Module Component Glossary and Calibration on pages 13 and 14.
  • Page 13 I-Series Input Signal Conditioning Modules IA10 ID05 ID07 IA12 IF02: ID01 IGYZ ID02 ID03 IP01: ID04 IP02: ID09 Apr-23-2009 FL-B101D40 DS (FL7) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 13...
  • Page 14 I-Series Input Signal Conditioning Modules IR04 IP03: Ω IR05 Ω Ω IS01 IP07: IS02 IPT1 IS04 IR02 IS05 Ω Ω Ω IR03 IS06 Ω Ω Ω Page 14 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Apr-23-2009 FL-B101D40 DS (FL7)
  • Page 15 ° IT14: Ω ° Ω Ω ± IT06: IT08: ° ± ± ± ± IT07: ° IT09: ° ° ± ° ± ° ± ° ± ° Apr-23-2009 FL-B101D40 DS (FL7) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 15...
  • Page 16: Input Module Component Glossary

    +1200 or more counts Equivalent – Circuit Equivalent Circuit Acts like a 150 Turn 75 Turn Potentiometer 75 Turn Potentiometer Potentiometer Low Range High Range Input LO Input HI Page 16 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Apr-23-2009 FL-B101D40 DS (FL7)
  • Page 17: Input Module Calibration Procedures

    Leopard Family of meters have enhanced Digital Calibration functions. Texmate’s unique ZERO OFFSET RANGE Header enables the use of a simple two step scaling and calibration procedure for those Basic standard range calibration of direct reading mod- process signals that require large offsets.
  • Page 18: Standard Faceplates And Scales

    THRUST POSITION TANK LEVEL WATER LEVEL FORWARD REVERSE X1000 ∠ °K μΩ μm μPa (L119) WATTS TURBINE TONS X 10 VAC MM HG 1000 LBS/HOUR TOP BOTTOM Page 18 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Apr-23-2009 FL-B101D40 DS (FL7)
  • Page 19: Custom Faceplates And Scales

    However, since normal use and service for a period of one year from date of shipment. Texmate’s obligations we have no control over the use of our products once they are shipped, NO WARRANTY...
