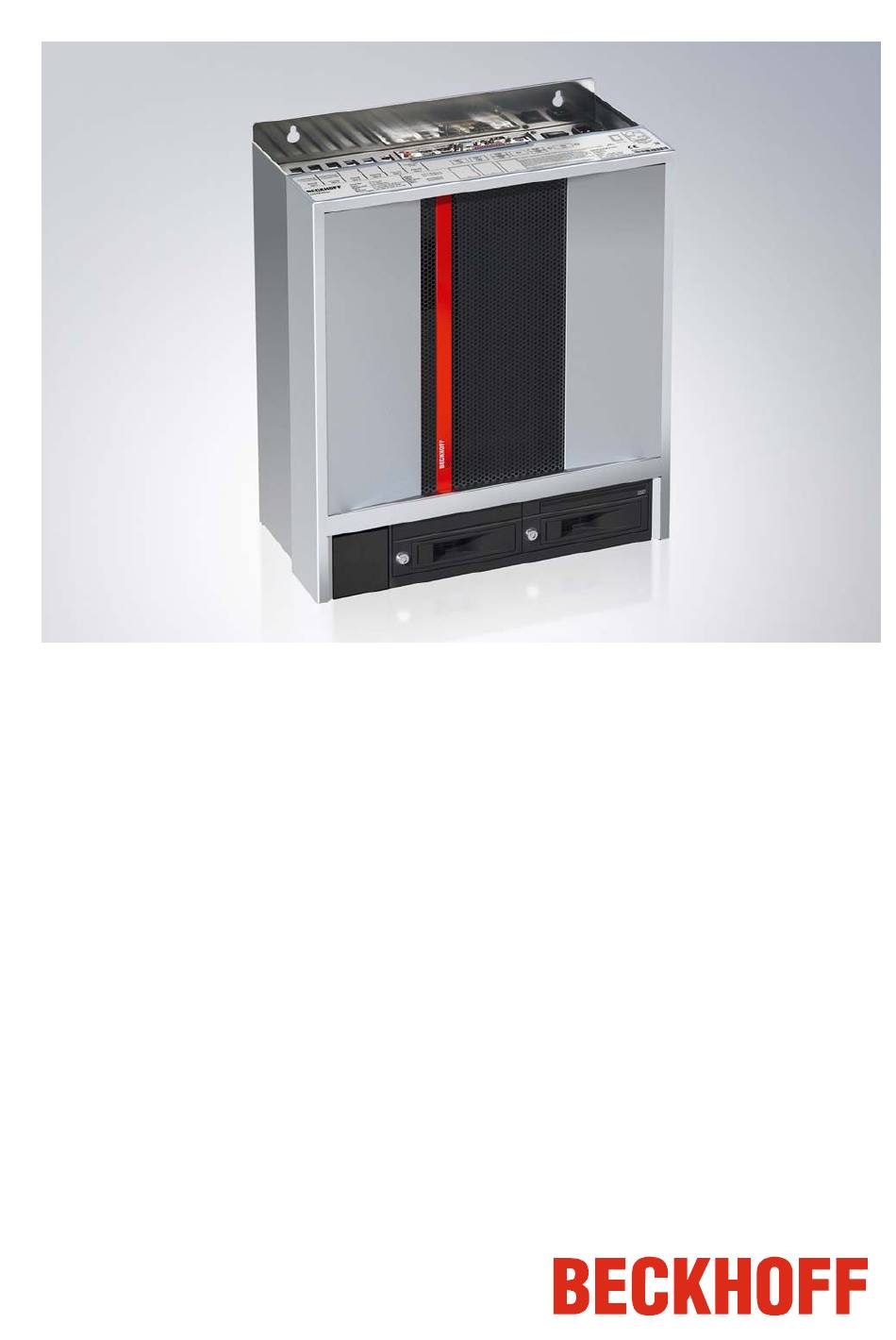

- Page 1 Installation and Operating instructions for C6670-0010 Control Cabinet Industrial Server Version: 1.2 Date: 2018-11-23...
-
Page 3: Table Of Contents
VGA (Video Interface) (X114) 2.6.5 Serial interface (PCIe Slot1) 2.6.6 DVI-I (Digital Visual Interface) (PCIe Slot6) 2.6.7 DVI-D (Digital Visual Interface) (PCIe Slot6) 2.6.8 Additional plug-in cards (optional) 2.6.9 Ground connection 3 Installation Transport and Unpacking 3.1.1 Transport 3.1.2 Unpacking C6670-0010... - Page 4 5 Troubleshooting 6 Assembly dimensions 7 Technical Data 8 Appendix Beckhoff Support and Service 8.1.1 Beckhoff branches and partner companies 8.1.2 Beckhoff company headquarters Approvals for USA and Canada FCC Approvals for the United States of America FCC Approval for Canada...
-
Page 5: Foreword
Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. 1.1.6 Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH & Co. KG apply. C6670-0010... -
Page 6: Description Of Safety Symbols
CAUTION Hazard to devices and environment If you do not adhere the notice adjoining this symbol, there is obvious hazard to materials and environment. Attention Note or pointer This symbol indicates information that contributes to better understanding. Note C6670-0010... -
Page 7: Basic Safety Measures
• if connecting cables internal to the PC are removed or inserted during operation. • if plug-in cards are removed or inserted when the PC is switched on. C6670-0010... -
Page 8: Operator's Obligation To Exercise Diligence
1.4.3 Operator requirements Anyone who uses the Industrial PC must have read these operating instructions and must be familiar with all the functions of the software installed on the Industrial PC to which he has access. C6670-0010... -
Page 9: Product Description
2.1 Product overview C6670 | Control cabinet Industrial Server The C6670 Industrial Server is designed for installation in control cabinets. The C6670 and a Beckhoff Control Panel with DVI and USB connection make an ideal combination, representing a powerful platform for machine construction and plant engineering applications with the TwinCAT automation software. - Page 10 • 2 removable frames for hard disks • drives and plug-in cards easily accessible • all connectors on the top • detailed PC configuration information on the front • protection class IP20 • operating temperature 0…50 °C. C6670-0010...
-
Page 11: Appropriate Use
Product Description 2.2 Appropriate Use The C6670-0010 Industrial Server is designed for mounting in control cabinets for machine and plant engineering applications Risk of explosion! The Industrial Server must not be used where there is a risk of explosion. Danger 2.3 Opening the Housing... -
Page 12: C6670
The reassembly of the cover takes place in reverse order. Ensure that the cover engages into the slides (2). Removing the card holder card holder knurled screw After loosening the knurled screw the card holder can be lifted off. C6670-0010... -
Page 13: Access To The Battery
Replace battery only with the identical type or an alternative type recommended by the WARNING manufacturer. Notice correct polarity! Polarity of the battery: + pole Handling of Lithium Batteries Lithium Batteries should not be recharged, exposed to fire, opened and they should be WARNING protected against sunlight and moisture. C6670-0010... -
Page 14: Access To The Fans
Remove the housing cover For exchanging the fan cartridge, it can be necessary to remove the housing cover. Note Removing the fans After removing the phillips head screws the fans can be exchanged. Therefor disconnect the supply cable from the motherboard. C6670-0010... -
Page 15: Exchanging The Fan Cartridge
The cartridge can then be folded down and taken out. Removing the fan Disconnect the supply cable from the motherboard. Therefor it can be necessary to remove the housing cover. After exchanging the fan cartridge the reassembly takes place in reverse order. C6670-0010... -
Page 16: Interfaces
The VGA connection (X114) is used for transferring the video signal. 2.6.5 Serial interface (PCIe Slot1) The Industrial Server has one serial interfaces COM1, using the type RS232, which is brought to a 9 pin SUB-D plug connector. The interface is preferably suitable for connecting a Beckhoff UPS C9900-U124. C6670-0010... -
Page 17: Dvi-I (Digital Visual Interface) (Pcie Slot6)
There is a type plate on the front cover of the Industrial Server which provides information about the hardware configuration of the Industrial PC at the time of delivery. 2.6.9 Ground connection Earthing connections dissipate interference from external power supply cables, signal cables or cables to peripheral equipment. See also chapter Earthing measures. C6670-0010... -
Page 18: Installation
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. C6670-0010... -
Page 19: Installation Of The Pc In The Control Cabinet
Installation 3.2 Installation of the PC in the control cabinet The C6670-0010 Industrial Server is designed for mounting in control cabinets for machine and plant engineering applications. The ambient conditions specified for operation must be observed (see chapter Technical Data). -
Page 20: Power Supply Of The Industrial Pc
Listed, Detachable, maximum 4.5 m (14.76 ft.) long; rated minimum 250 V, 10 A, Type SJT or Type SVT; one end terminates in NEMA 6-15P/-20P grounding-type attachment plug, other end in appliance coupler. Minimum temperature rating of supply cables should be 80 °C. C6670-0010... -
Page 21: Connecting The Industrial Pc
Connect all the cables between the Industrial PC and to the devices that are to be connected. • Connect all data transfer cables (if present) to the appropriate plug-in receptacles of the data/ telecommunication networks. • Reconnect all devices to the power supply. C6670-0010... -
Page 22: Operating Instructions
If the PC was ordered without operating system, you have to install the operating system and the driver software for any auxiliary hardware yourself. Please follow the instructions in the documentation for the operating system and the additional devices. C6670-0010... -
Page 23: Servicing And Maintenance
Housing components (polycarbonate, polyamide (PA6.6)) are suitable for plastic recycling • Metal parts can be sent for metal recycling • Electronic parts such as disk drives and circuit boards must be disposed of in accordance with national electronics scrap regulations. C6670-0010... -
Page 24: Troubleshooting
Procedure Nothing happens after the Industrial No power supply to the Industrial Check power supply cable PC has been switched on Call Beckhoff Service Other cause The Industrial PC does not boot Setup settings are incorrect Check the setup settings... -
Page 25: Assembly Dimensions
Assembly dimensions 6 Assembly dimensions Industrial Server C6670-0010 Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Attention All dimensions in mm. C6670-0010... - Page 26 Assembly dimensions Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Attention All dimensions in mm. C6670-0010...
-
Page 27: Technical Data
Technical Data 7 Technical Data Risk of explosion! Do not use the Industrial Server in areas of explosive hazard! Danger Product name C6670-0010 Dimensions (B x H x T) see chapter Assembly dimensions Weight 16 kg (basic configuration) Supply voltage... -
Page 28: Appendix
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com. You will also find further documentation for Beckhoff components there. -
Page 29: Approvals For Usa And Canada
Technological changes to the device may cause the loss of the FCC approval. Note 8.4 FCC Approval for Canada FCC: Canadian Notice This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications. C6670-0010...
