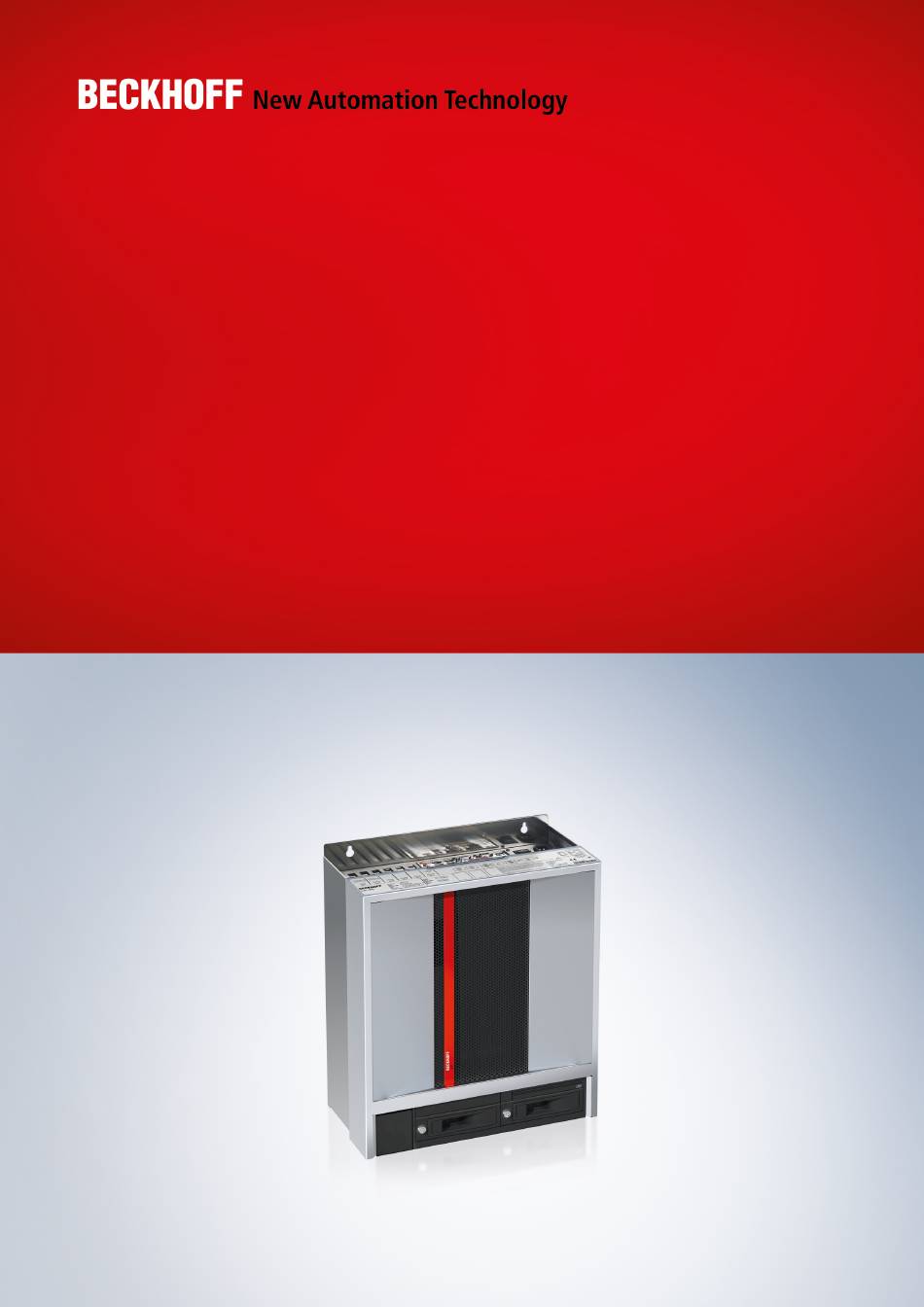

- Page 1 Manual | EN C6675 Industrial PC 2022-9-13 | Version: 1.0...
-
Page 3: Table Of Contents
Grounding of the industrial PC .................. 23 4.3.2 Connecting cables and power supply ................ 25 Switching the industrial PC on and off .................... 26 5 Beckhoff Device Manager ........................ 27 6 Decommissioning ........................... 29 Disconnecting the power supply and cables ................... 29 Disassembly and disposal....................... 30 7 Maintenance ............................ 31... - Page 4 Table of contents 10.2 Approvals ............................ 47 Version: 1.0 C6675...
-
Page 5: Notes On The Documentation
Copyright © Beckhoff Automation GmbH & Co. KG. Publication of this document on websites other than ours is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design. -
Page 6: For Your Safety
Exclusion of liability Beckhoff shall not be liable in the event of non-compliance with this documentation and thus the use of the devices outside the documented operating conditions. Description of safety symbols The following safety symbols are used in these operating instructions. -
Page 7: Fundamental Safety Instructions
• the operating instructions are in good condition and complete, and always available for reference at the location where the products are used. C6675 Version: 1.0... -
Page 8: Notes On Information Security
For your safety Notes on information security The products of Beckhoff Automation GmbH & Co. KG (Beckhoff), insofar as they can be accessed online, are equipped with security functions that support the secure operation of plants, systems, machines and networks. Despite the security functions, the creation, implementation and constant updating of a holistic security concept for the operation are necessary to protect the respective plant, system, machine and networks against cyber threats. -
Page 9: Product Overview

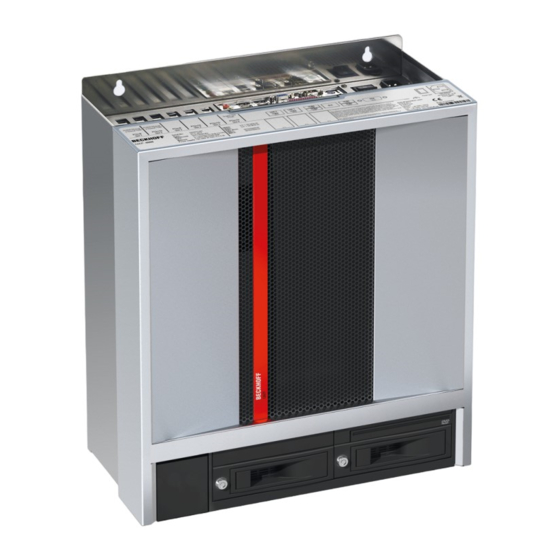

Product overview Product overview The industrial PC C6675 belongs to the series of powerful industrial PCs for control cabinet installation with ATX motherboard. The device is suitable for various applications and requirements. Thanks to the available processors, the industrial PC can be used for the following applications, among others: •... -
Page 10: Structure
Product overview Structure Fig. 1: C6675_Structure Table 1: Key - C6675 structure Component Description Mounting concept Holes for mounting the industrial PC in the control cabinet Connection compartment Access to interfaces of the industrial PC Name plate Information on the equipment of the industrial PC... -
Page 11: Interface Description
In the basic configuration, the industrial PC includes the following interfaces: • Power supply (X101) • PS/2 mouse and keyboard (X103, X104) • USB (X108-X111) • Ethernet RJ45 (X112, X113) • DVI (X114, X115) • RS232 (X116) • DisplayPort (X117) • Audio connections (X120-X122) Fig. 2: C6675_connection section C6675 Version: 1.0... -
Page 12: Power Supply
PS/2 mouse, the lower interface (X103) allows the connection of a PC keyboard. The connection is made via standard MiniDIN connectors. X104 X103 Fig. 4: C6675_PS/2 mouse and keyboard Table 3: PS/2 interface mouse pin assignment Name Description MDAT Mouse Data Reserved Ground (S)VCC 5 V supply voltage MCLK Mouse Clock Reserved Version: 1.0 C6675... -
Page 13: Usb
9 8 7 6 5 X108 X110 1 2 3 4 1 2 3 4 Fig. 5: C6675_USB interface pin numbering Table 5: USB interface pin assignment Connection Shield Vbus StdA_SSRX - StdA_SSRX + GND_DRAIN StdA_SSTX - StdA_SSTX + C6675 Version: 1.0... -
Page 14: Ethernet Rj45
The controllers are used as follows, based on the device generation: Table 6: Controller classification based on device generation Generation Controller ® C6675-0060 Intel i219 for LAN1 and i210 for LAN2 If you use the Ethernet ports with EtherCAT or for Real-Time Ethernet applications, you have to regard the following distinction: The Ethernet port (X113, LAN2) connected via PCIe with the i210 controller is generally suitable for cycle times <= 1 ms and for distributed clock applications with EtherCAT. -
Page 15: Dvi
BIOS setup if required. X116 Fig. 8: C6675_RS232 interface pin numbering Table 9: RS232 pin assignment Signal Description Data Carrier Detect Receive Data Transmit Data Data Terminal Ready Ground Data Set Ready Request to Send Clear to Send Ring Indicator C6675 Version: 1.0... -
Page 16: Displayport
LVDS lane 2 + Ground LVDS lane 2 - LVDS lane 3 + Ground LVDS lane 3 - Config 1 Config 2 AUX channel + Ground AUX channel - Hot-plug detection Power supply: ground Power supply: 3.3 V / 500 mA Version: 1.0 C6675... -
Page 17: Audio Connections
The three sockets are brought out for 3.5 mm jack plugs. The pins of the jack plugs are assigned as follows: Fig. 11: C6675_jack plug pin assignment Table 11: Jack plug pin assignment Connection Left sound signal Right sound signal Common ground (return) C6675 Version: 1.0... -
Page 18: Optional Interfaces
Slot bracket for a serial interface module C9900-E209, C9900-E210 or C9900-E211, can only be ordered together with module C9900-M569 Slot bracket for two serial interface modules C9900-E209, C9900-E210 or C9900-E211, can only be ordered together with module Version: 1.0 C6675... -
Page 19: Name Plate
The name plate provides information on the equipment fitted to your industrial PC. xxxxxxx xxxxxxxxxxxx xxxxxxxxxxxx 9 10 11 12 Fig. 12: C6675_name plate Table 15: Key - C6675 name plate Description Manufacturer, including address Serial number (BTN) Model: The last four digits indicate the device generation Date of manufacture... -
Page 20: Commissioning
4. Check the contents for visible shipping damage. 5. In case of discrepancies between the package contents and the order, or in case of transport damage, please inform Beckhoff Service (see Chapter 10.1 Service and Support [} 46]). Version: 1.0 C6675... -
Page 21: Control Cabinet Installation
• Mount the device only in the orientations shown in the documents. The C6675 Industrial PC is designed for mounting in control cabinets in machine and plant engineering applications. Please observe the environmental conditions prescribed for the operation (see Chapter 9 Technical data [} 45]). -
Page 22: Fig. 14 C6675_Dimensions
1. Insert the fastening screws into the drill holes in the control cabinet. 2. Hang the PC on the screws at the marked points of the mounting concept (see Fig. 15). 3. Tighten the fastening screws. ð You have successfully installed the industrial PC in the control cabinet. Version: 1.0 C6675... -
Page 23: Connecting The Industrial Pc
10 mm for the ground connection. In the case of a round conductor, also use a cable lug with a ring and place the ring over the grounding bolt. C6675 Version: 1.0... -
Page 24: Fig. 16 C6675_Grounding Bolt For Functional Earthing
Commissioning Fig. 16: C6675_Grounding bolt for functional earthing Version: 1.0 C6675... -
Page 25: Connecting Cables And Power Supply
Proceed as follows to connect the 100-240 V power supply unit: 1. Check that the mains voltage is correct. 2. Plug the corresponding IEC power cable into the IEC socket of the industrial PC. 3. Connect the industrial PC to a Schuko socket. C6675 Version: 1.0... -
Page 26: Switching The Industrial Pc On And Off
PC. The software and drivers are already installed on delivery of the PC with operating system. Otherwise, you will have to install them yourself. In this case, contact Beckhoff Service, who will provide you with software and drivers. The driver software comes with a detailed help function. Call up the help files either directly from the configuration register by clicking the Help button or start the file under Start >... -
Page 27: Beckhoff Device Manager
• User name: Administrator • Password: 1 You also have the option of using the Beckhoff Device Manager to remotely configure the Industrial PC via a web browser. More detailed information is available in the Beckhoff Device Manager manual. First start Beckhoff Device Manager When your Industrial PC is booted for the first time, the Beckhoff Device Manager also starts automatically for the first time. -
Page 28: Fig. 18 Beckhoff Device Manager - Start Page
Secure passwords Strong passwords are an important prerequisite for a secure system. Beckhoff supplies the device images with standard user names and standard passwords for the operating system. It is imperative that you change these. Controllers are shipped without a password in the UEFI/BIOS setup. Beckhoff recommends assigning a password here as well. -
Page 29: Decommissioning
To disconnect the cables from the industrial PC, proceed as follows: 1. Make a note of the wiring configuration, if you wish to restore it with another device. 2. Disconnect the data transmission cables from the industrial PC. 3. Finally, disconnect the grounding strap. C6675 Version: 1.0... -
Page 30: Disassembly And Disposal
• Electronic parts such as fans and circuit boards must be disposed of in accordance with national electronic scrap regulations. • Stick insulating tape over the poles of the CR2032 battery on the motherboard and dispose of the battery via the local battery recycling. Version: 1.0 C6675... -
Page 31: Maintenance
• Always keep the ventilation grilles free. • Only use a vacuum cleaner to clean the PC. The industrial PC does not have to be switched off for this. • Never use compressed air to clean the PC. C6675 Version: 1.0... -
Page 32: Table 16 Replacement Recommendations For Pc Components
NOTE Use of incorrect spare parts The use of spare parts not ordered from Beckhoff Service can lead to unsafe and faulty operation. • Only use spare parts that you have ordered from Beckhoff Service. Beckhoff industrial PCs are manufactured from components of the highest quality and robustness. They are selected and tested for best interoperability, long-term availability and reliable function under the specified environmental conditions. - Page 33 • Only remove new electronic components from the ESD packaging (tinted plastic bag) after putting on the wrist grounding strap. • Do not walk around with electronic components in your hand if they are not in ESD packaging. C6675 Version: 1.0...
-
Page 34: Access To Device Components
3. Keep the card holder pressed onto the edge of the industrial PC while tightening the knurled screw again (section C). 4. For each plug-in card, press down the associated plastic element of the card holder until the plug-in card is firmly seated in its slot. ð You have mounted the card holder. Version: 1.0 C6675... -
Page 35: Fig. 21 C6675_Mounting Card Holder
2. Push the cover up as far as possible, inserting the hooks of the cover into the guides of the housing (2) (section B). 3. Place the cover into a straight position against the housing until the release handle snaps back into place (section C). ð You have mounted the cover on the housing. C6675 Version: 1.0... -
Page 36: Fig. 23 C6675_Mounting Housing Cover
Maintenance Fig. 23: C6675_mounting housing cover Version: 1.0 C6675... -
Page 37: Replacing The Battery
Replace the battery with R/C (BBCV2), order number CR2032, nominal voltage 3 V. Using any other bat- tery may cause fire or explosion. • Contact Beckhoff Service exclusively for a replacement battery. • When replacing the battery, make sure that the polarity is correct. -
Page 38: Replacing The Storage Media
If you want to exchange a storage medium according to Beckhoff's recommendation, you must copy the data from the old to the new storage medium. You can use the Beckhoff Service Tool (BST) for this purpose. The BST is a graphical backup and restore program for industrial PCs with a Windows operating system. You can create an image of your operating system and use it to back up the operating system. -
Page 39: Fig. 25 C6675_Exchange Hard Disk
2. Pull the key of the hard drive caddy to unlock it (section B). 3. Open the hard drive caddy (section C). 4. Pull the SSD out of the hard drive caddy by the protruding Beckhoff sticker (section D). 5. Reinsert the new SSD in the same orientation. -
Page 40: Fig. 26 C6675_Exchange Ssd
Maintenance Fig. 26: C6675_exchange SSD Version: 1.0 C6675... -
Page 41: Replacing The Fan
• Only replace the fans with a fan from Beckhoff Service. The housing fans on the top and bottom of the industrial PC ensure optimum cooling of the device. Order a new fan only from Beckhoff. To do this, contact Beckhoff Service (see Chapter 10.1 Service and support [} 46]). -
Page 42: Fig. 28 C6675_Exchange Fan Top
Please contact Beckhoff Service for this. Exchange CPU cooler You can also replace the CPU cooler on the motherboard. Contact Beckhoff Service for a new cooler. To replace the CPU cooler, follow the steps below as shown in Figure 29: 1. -
Page 43: Fig. 29 C6675_Exchange Cpu Cooler
Maintenance Fig. 29: C6675_exchange CPU cooler The old fan must be disposed of in accordance with the national electronic waste regulations. C6675 Version: 1.0... -
Page 44: Troubleshooting
Nothing happens after the Missing power supply of the Check the power supply cable Industrial PC has been switched on Industrial PC Call Beckhoff Service Other cause The Industrial PC does not boot Setup settings are incorrect Check the setup settings... -
Page 45: Technical Data
Technical data Technical data Table 19: Technical data Product designation C6675 Dimensions (W x H x D) 410 x 480 x 201 mm Weight 15 kg basic configuration Supply voltage 100-240 V , 50-60 Hz, max. 5 A Power consumption max. 68 W basic configuration... -
Page 46: Appendix
Phone: + 49 (0) 5246/963-0 Fax: + 49 (0) 5246/963-198 e-mail: info@beckhoff.de The addresses of the worldwide Beckhoff branch offices and agencies can be found on our website at http:// www.beckhoff.com/. You will also find further documentation for Beckhoff components there. -
Page 47: Table 20 Approvals C6675
Appendix 10.2 Approvals The following table shows the approvals of the industrial PC based on the device generation: Table 20: Approvals C6675 Device generation Approvals C6675-0060 CE, EAC, UKCA, FCC You will find all other applicable approvals on the name plate of your device. - Page 48 C6675_dimensions ........................Fig. 15 C6675_control cabinet installation ....................Fig. 16 C6675_Grounding bolt for functional earthing ................Fig. 17 Beckhoff Device Manager - Change passwords ................Fig. 18 Beckhoff Device Manager – Start page ..................Fig. 19 C6675_positions fastening screws....................Fig. 20 C6675_access device components .....................
- Page 49 Table 11 Jack plug pin assignment......................Table 12 Interface options........................... Table 13 Module options..........................Table 14 Slot options ..........................Table 15 Key - C6675 name plate ......................Table 16 Replacement recommendations for PC components..............Table 17 Technical data of the battery......................Table 18 Troubleshooting ...........................
- Page 51 More Information: www.beckhoff.com/c6675 Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
