- Page 1 Manual | EN C6925 Industrial PC 2024-04-03 | Version: 3.2...
-
Page 3: Table Of Contents
Grounding of the Industrial PC.................. 26 4.3.3 Connecting cables and power supply ................ 27 Switching the Industrial PC on and off .................... 29 5 Beckhoff Device Manager ........................ 31 6 Decommissioning ........................... 33 Disconnecting the power supply and cables ................... 33 Disassembly and disposal....................... 34 7 Maintenance ............................ 35... - Page 4 Table of contents Version: 3.2 C6925...
-
Page 5: Notes On The Documentation
EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 and similar applications and registrations in several other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The distribution and reproduction of this document as well as the use and communication of its contents without express authorization are prohibited. -
Page 6: For Your Safety
Exclusion of liability Beckhoff shall not be liable in the event of non-compliance with this documentation and thus the use of the devices outside the documented operating conditions. -
Page 7: Fundamental Safety Instructions
• the operating instructions are in good condition and complete, and always available for reference at the location where the products are used. C6925 Version: 3.2... -
Page 8: Notes On Information Security
For your safety Notes on information security The products of Beckhoff Automation GmbH & Co. KG (Beckhoff), insofar as they can be accessed online, are equipped with security functions that support the secure operation of plants, systems, machines and networks. Despite the security functions, the creation, implementation and constant updating of a holistic security concept for the operation are necessary to protect the respective plant, system, machine and networks against cyber threats. -
Page 9: Product Overview

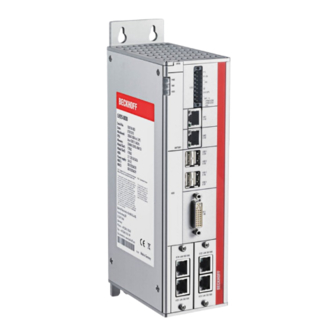

Product overview Product overview The C6925 Industrial PC belongs to the series of compact Industrial PCs for space-saving control cabinet installation. The device is suitable for various applications and requirements. Thanks to the available processors, the Industrial PC can be used for the following applications, among others: •... -
Page 10: Structure
Product overview Structure Fig. 1: Structure Table 1: Key: C6925 structure No. Component Description Mounting plate Plate for mounting the Industrial PC by its the rear side in the control cabinet Status LEDs Status display for power, fieldbus, hard disk Name plate... -
Page 11: Interface Description
Product overview Interface description The basic version of the C6925 has the following interfaces: • Power supply (X101) • Ethernet RJ45 (X102, X103) • USB (X104 - X107) • DVI (X108) 3.2.1 Power supply The industrial PC is supplied with a nominal voltage of 24 V. The 8-pin voltage socket (X101) is used for connection to the power supply and the external wiring of the industrial PC. -
Page 12: Ethernet Rj45
Product overview 3.2.2 Ethernet RJ45 The C6925 has two Gigabit LAN ports (X102, X103). The 100Base-T and 1000Base-T Ethernet standards enable the connection of corresponding network components and data rates of 100/1000 Mbit/s. The required speed is selected automatically. The RJ45 connection technology with twisted-pair cables is used. The maximum length of the cable connection is 100 m. -
Page 13: Usb
USB interfaces. The following table shows the interface assignment based on the device generation: Table 5: USB interfaces based on device generation Generation USB interfaces C6925-0030 4x USB 2.0 C6925-0040 2x USB 3.0 2x USB 2.0 Each of the four USB interfaces supplies up to 500 mA current and is electronically fused. -
Page 14: Dvi
DDC Clock + 5 V Power TMDS Clock Shield DDC Data Ground (+ 5 V, Analog H/ TMDS Clock + V Sync) Analog Vertical Sync Hot Plug Detect TMDA Clock - Version: 3.2 C6925... -
Page 15: Optional Interfaces
In addition, you can extend the industrial PC by PCIe modules by using both of the device's PCIe module slots. The PCIe module is the Beckhoff definition of a small plug-in card format with a PCIe-x1 bus interface. Different PCIe modules are available to you, depending on the device generation. Contact your Beckhoff distributor for the ordering options. -
Page 16: Status Leds
The industrial PC has either three or seven status LEDs, depending on the device generation. The following table shows how many LEDs exist in each generation: Table 9: Device generation status LEDs Generation Number of status LEDs C6925-0020 PWR, FB, HDD C6925-0030 PWR, FB, HDD C6925-0040... -
Page 17: Table 11 Meaning Of The Status Leds
Standby TC (TwinCAT) Stop Mode green Run Mode blue Configuration mode IDE/HDD Access to storage medium green Fans running Fans failed USR (user) programmable FB RUN (fieldbus active) green active not active FB Error (fieldbus error) Error C6925 Version: 3.2... -
Page 18: Name Plate
Product overview Name plate The name plate provides information on the equipment fitted to the industrial PC. The name plate shown here serves only as an example. xxxxxxxx xxxxxxxxxxxxx xxxxxxxxxxxxx Fig. 8: Name plate example Version: 3.2 C6925... -
Page 19: Table 12 Legend C6925 Name Plate
Product overview Table 12: Legend C6925 name plate Description Model: the last four digits indicate the device generation. Serial number (BTN) Date of manufacture Mainboard Main memory PCIe module slots SSD or CFast Power supply unit: 24 V MAC addresses of the Ethernet interfaces (X102, X103) -
Page 20: Commissioning
3. Check your delivery for completeness by comparing it with your order. 4. Check the contents for visible shipping damage. 5. In case of discrepancies between the package contents and the order, or in case of transport damage, please inform Beckhoff Service (see Chapter 10.1 Service and support). Version: 3.2 C6925... -
Page 21: Installation In The Control Cabinet
• Mount the device only in the orientations shown in the documents. The C6925 Industrial PC is designed for mounting in control cabinets in machine and plant engineering applications. Please observe the environmental conditions prescribed for the operation (see Chapter 9 Technical data [} 42]). -
Page 22: Dimensions
Figure 10 shows the dimensions of the industrial PC with mounting plate 1. 115,2 124,5 65,1 Fig. 10: Dimensions of mounting plate 1 Figure 11 shows the dimensions of the industrial PC with mounting plate 2. 65,1 21,5 69,1 124,5 Fig. 11: Dimensions of mounting plate 2 Version: 3.2 C6925... -
Page 23: Installation In The Control Cabinet
1. Place the fastening screws in the drill holes in the rear panel of the control cabinet. 2. Hang the PC on the screws at the marked points of the mounting plate (see Fig. 12). 3. Tighten the fastening screws. ð You have successfully installed the industrial PC in the control cabinet. C6925 Version: 3.2... -
Page 24: Connecting The Industrial Pc
Wire the industrial PC in the control cabinet in accordance with the EN 60204-1:2006 standard on Protective Extra Low Voltage (PELV) so that one side of the circuit or a point on the power source of this circuit is connected to the protective conductor system. Version: 3.2 C6925... -
Page 25: Installing The Supply Cable
3. Tighten the cable tie and remove the plastic tab (section C). 4. Attach the upper part of the strain relief housing by snapping it onto the lower part (section D). Fig. 13: Assembly of strain relief housing C6925 Version: 3.2... -
Page 26: Grounding Of The Industrial Pc
The functional earth is necessary for the EMC of the device. The functional earth is established by connecting the grounding point on the PC mounting plate to the central grounding point of the control cabinet in which the PC is installed. Version: 3.2 C6925... -
Page 27: Connecting Cables And Power Supply
If you ordered your device with an integrated UPS, then you can connect an external battery pack and install it on a DIN rail near to the PC. Use only Beckhoff battery packs for this: • C9900-U330: universal battery pack for PCs and panel PCs in any configuration •... -
Page 28: Fig. 14 Wiring Diagram
The maximum load is 1.4 A (max. 2.5 A from year of manufacture 2016). Once the PC has been de-energized via the UPS software, the UPS output is switched to 0 V. A connected panel is switched off. Version: 3.2 C6925... -
Page 29: Switching The Industrial Pc On And Off
When you switch on the PC for the first time, the optionally pre-installed operating system will be started. For any additional hardware you have connected, you have to install the drivers yourself afterwards. In addition, the Beckhoff Device Manager starts automatically. The Device Manager is a software from Beckhoff that supports you in configuring the PC. - Page 30 Call up the help files either directly from the configuration register by clicking the Help button or start the file under Start > Programs > Beckhoff > UPS software components. The communication between your PC and the UPS takes place via the BIOS API. In addition to the UPS driver, you also need the Beckhoff Automation Device Driver.
-
Page 31: Beckhoff Device Manager
• User name: Administrator • Password: 1 You also have the option of using the Beckhoff Device Manager to remotely configure the industrial PC via a web browser. More detailed information is available in the Beckhoff Device Manager manual. First start Beckhoff Device Manager When your industrial PC is booted for the first time, the Beckhoff Device Manager also starts automatically for the first time. -
Page 32: Fig. 16 Beckhoff Device Manager - Start Page
Secure passwords Strong passwords are an important prerequisite for a secure system. Beckhoff supplies the device images with standard user names and standard passwords for the operating system. It is imperative that you change these. Controllers are shipped without a password in the UEFI/BIOS setup. Beckhoff recommends assigning a password here as well. -
Page 33: Decommissioning
5. Make a note of the wiring of all data transmission cables if you want to restore the cabling with another device. 6. Disconnect the data transmission cables from the industrial PC. 7. Finally, disconnect the grounding strap. ð You have disconnected the cables and the power supply. C6925 Version: 3.2... -
Page 34: Disassembly And Disposal
• Electronic parts such as fans and circuit boards must be disposed of in accordance with national electronic scrap regulations. • Stick insulating tape over the poles of the CR2032 battery on the motherboard and dispose of the battery via the local battery recycling. Version: 3.2 C6925... -
Page 35: Maintenance
Maintenance measures increase the efficiency of the device by ensuring long-term functionality. Cleaning and maintenance by replacing certain device components contribute to this. Repair Only the vendor may repair the device. If a repair should be necessary, contact Beckhoff Service (see Chapter 10.1 Service and Support [} 43]). Cleaning... -
Page 36: Table 13 Device Component Replacement Recommendations
NOTICE Use of incorrect spare parts The use of spare parts not ordered from Beckhoff Service can lead to unsafe and faulty operation. • Only use spare parts that you have ordered from Beckhoff Service. Beckhoff devices are manufactured from components of the highest quality and robustness. They are selected and tested for best interoperability, long-term availability and reliable function under the specified environmental conditions. - Page 37 • Only remove new electronic components from the ESD packaging (tinted plastic bag) after putting on the wrist grounding strap. • Do not walk around with electronic components in your hand if they are not in ESD packaging. C6925 Version: 3.2...
-
Page 38: Access To Device Components
To access the battery and the storage media, open the front flap (see Fig. 18). Fig. 18: Tool-free access to battery and storage media You now have access to the battery (1) and storage media (2) (see fig. 19). Fig. 19: Battery and storage media Version: 3.2 C6925... -
Page 39: Replacing The Battery
Replace battery with R/C (BBCV2), Part. No. CR2032, rated 3 V only. Use of another battery may present a risk of fire or explosion. • Only replace the battery with a replacement battery from Beckhoff Service. • When replacing the battery, make sure that the polarity is correct. -
Page 40: Replacing The Storage Media
If you want to exchange a storage medium according to Beckhoff's recommendation, you must copy the data from the old to the new storage medium. You can use the Beckhoff Service Tool (BST) for this purpose. BST is a graphical backup and restore program for PCs with a Windows operating system. You can create an image of your operating system and use it to back up the operating system. -
Page 41: Troubleshooting
Measures No function of the industrial PC Missing power supply of the Check the power supply cable industrial PC Call Beckhoff Service Other cause The industrial PC does not boot BIOS setup settings are incorrect Check BIOS setup settings (load... -
Page 42: Technical Data
Technical data Technical data Table 15: Technical data Product designation C6925 Dimensions (W x H x D) 65 x 223 x 121 mm, without mounting plate Weight 1750 g with basic configuration Supply voltage 22-30 V DC (24 V DC power supply unit) NEC Class 2... -
Page 43: 10 Appendix
33415 Verl Germany Phone: + 49 5246/963-0 email: info@beckhoff.de The addresses of the worldwide Beckhoff branches and agencies can be found on our website at http:// www.beckhoff.com/. You will also find further documentation for Beckhoff components there. C6925 Version: 3.2... -
Page 44: Approvals
FCC approvals for Canada FCC: Canadian Notice This device does not exceed the class A limits for radiation, as specified by the Radio Interference Regulations of the Canadian Department of Communications. Version: 3.2 C6925... - Page 45 Fig. 13 Assembly of strain relief housing ....................Fig. 14 Wiring diagram ..........................Fig. 15 Beckhoff Device Manager - Change passwords ................Fig. 16 Beckhoff Device Manager – Start page ..................Fig. 17 Dismantling the control cabinet ....................Fig. 18 Tool-free access to battery and storage media................
- Page 46 List of tables List of tables Table 1 Key: C6925 structure ........................Table 2 Voltage socket pin assignment ....................Table 3 Controller classification based on device generations ..............Table 4 Ethernet interface pin assignment....................Table 5 USB interfaces based on device generation ................
- Page 48 More Information: www.beckhoff.com/C6925/ Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
