D i m e n s i o n a l I n f o r m a t i o n
The INT-483H/805H can be mounted to a panel using standard #8 hardware.
Dimensions in Inches (mm)
0.172 (4.37) Diameter
Through (4 Places)
2.700
(68.58)
3.000
(76.2)
0.150
(4.37)
1.595
(40.51)

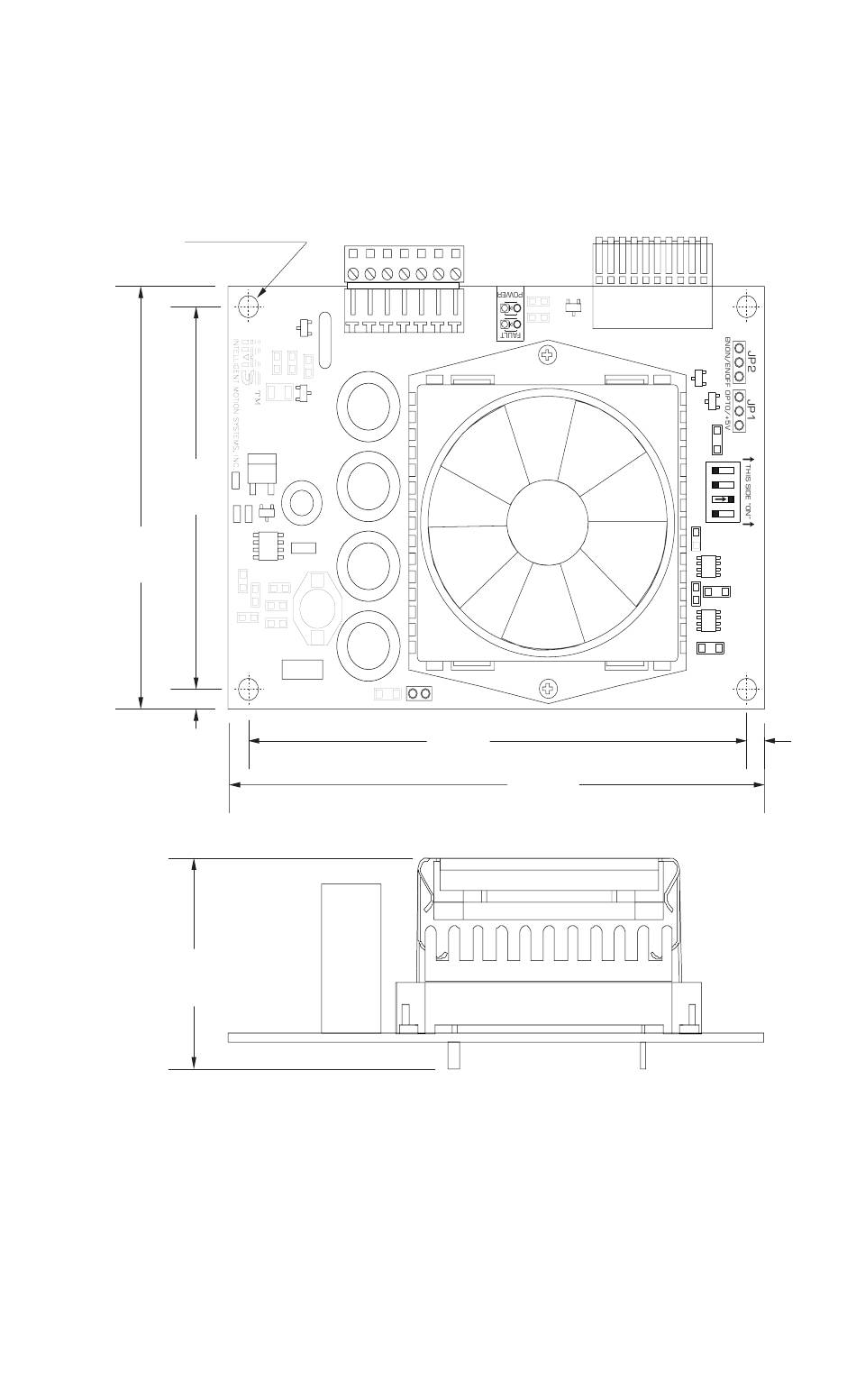

Figure A.3: INT-483 / 805 Interface Board, Dimensions in Inches (mm)
Pin 1
P2
P3
2 1
+5V
FAN
3.950
(100.33)
4.250
(107.95)
IM483H/IM805H Rev. R032206
Pin 1
P1
MS0
MS1
MS2
MS3
SW1
0.150
(4.37)
