4 L e a d M o t o r s
4 lead motors are the least flexible but easiest to wire. Speed and torque will
depend on winding inductance. In setting the driver output current, multiply the
specified phase current by 1.4 to determine the peak output current.
PHASE A
PHASE A
PHASE B
PHASE B

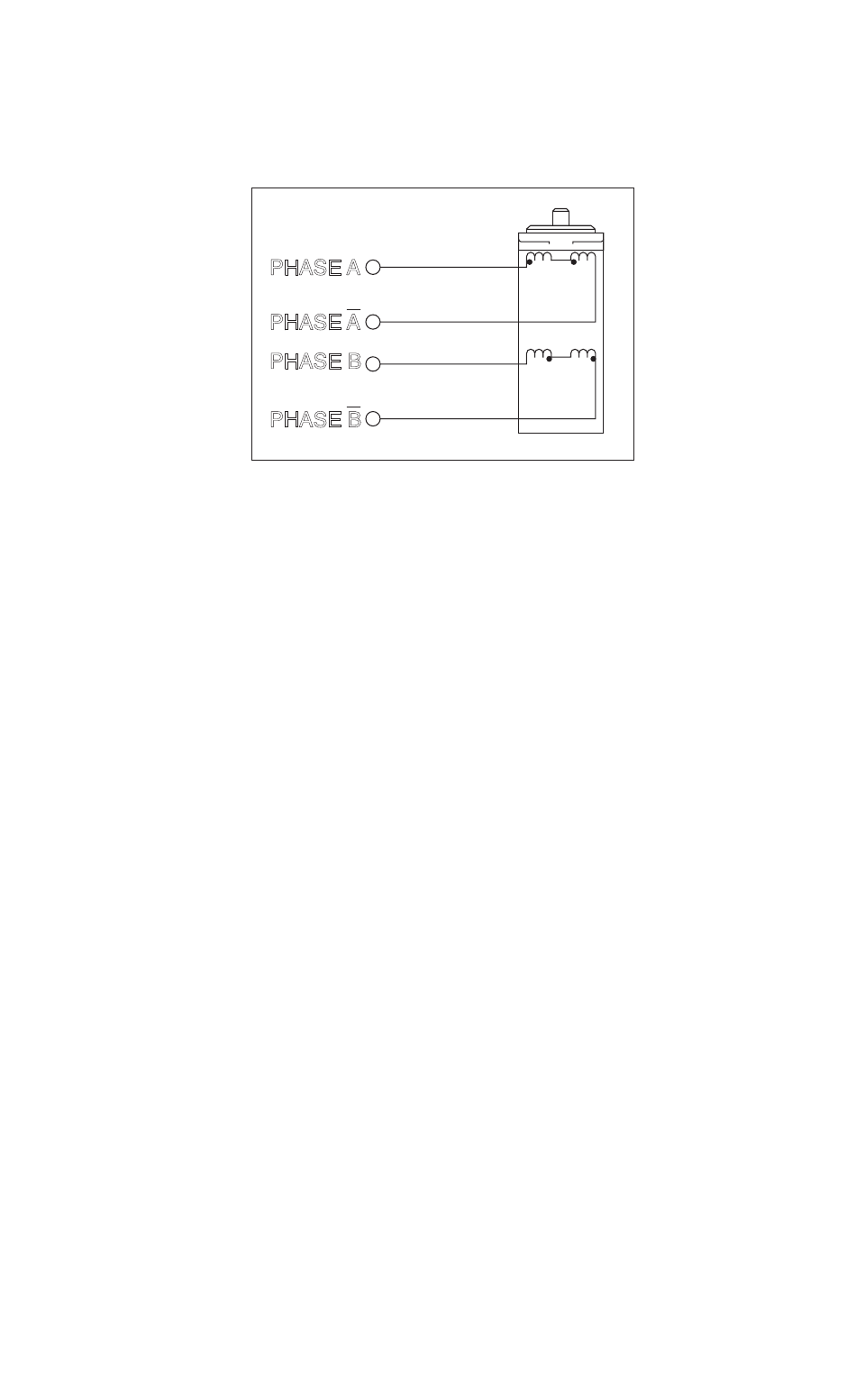

Figure 6.6: 4 Lead Motor Connections
IM483H/IM805H Rev. R032206
35
