Recommended Solder
Kester "245" No Clean
Alpha Metals "Telecore Plus"
Multicore "X39B" No Clean
Mounting the IM483H/IM805H Using the PR-22
Receptacle
The PR-22 pin receptacle carrier allows
for easy placement of multi-fingered
receptacle pins facilitating easy removal
and placement of the IM483H/IM805H
driver. The PR-22 is a disposable plastic
frame containing 23 receptacles in a
layout that matches the pin layout of the
IM483H/IM805H hybrid.
This tool enables the user to insert the
23 receptacles into their PC board design
in a single operation for wave or hand
solder. The plastic frame can then be
lifted out and discarded. The following
figure (Figure 3.3) shows the PCB hole pattern and recommended pad size that should be
used on the end-user PC board. The recommended mounting hardware are the same as
illustrated in Figure 3.4.
To lift the disposable carrier after soldering, gently pry the carrier from the PCB with a
flat head screwdriver or, to avoid chancing PC board damage, use the optional pry bar
(PB-22).
0.375
(9.5)
0.720
(18.3)
0.780
(19.8)
0.525"
(13.30)

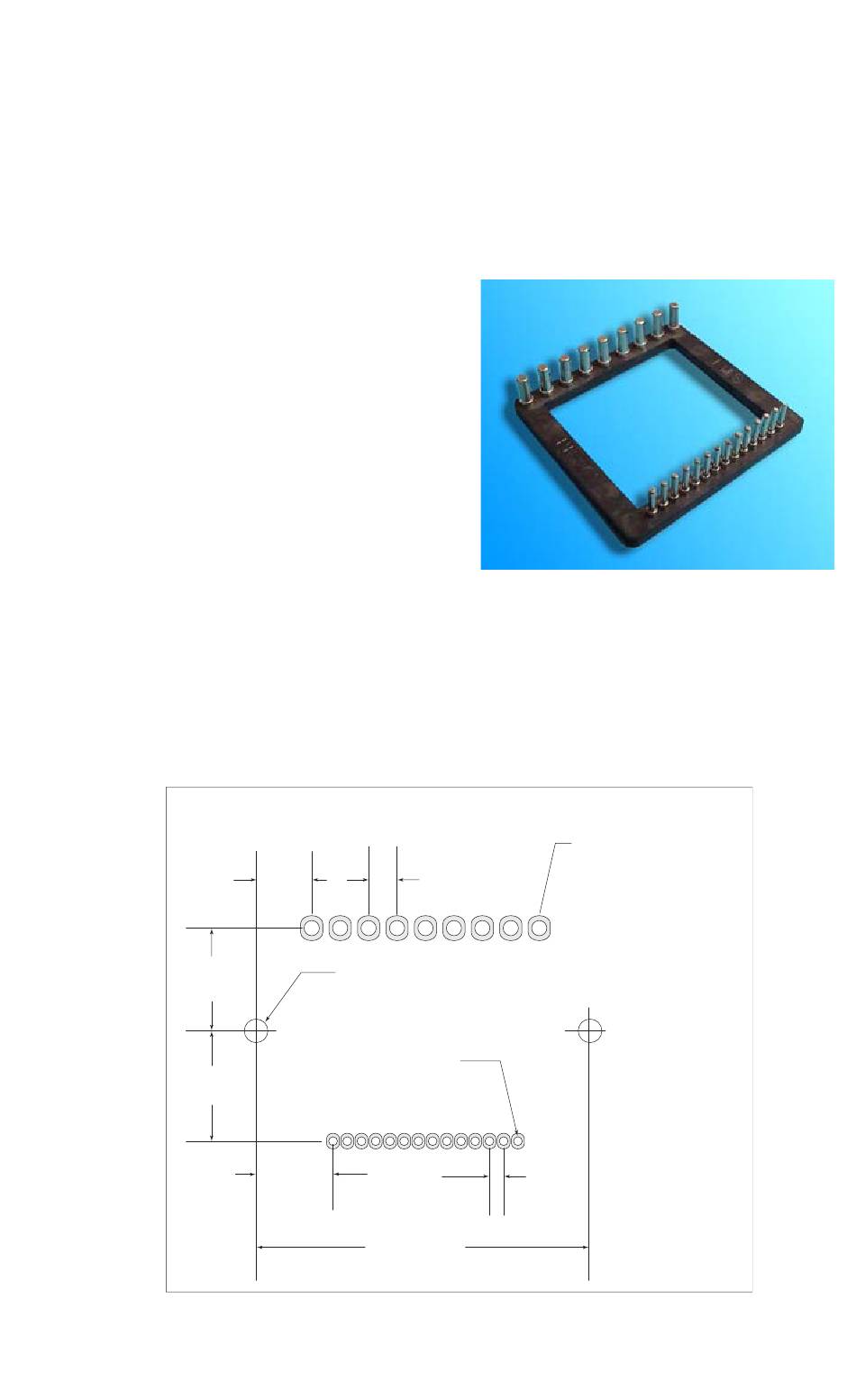

Figure 3.3: PCB Hole Pattern (for Mounting of the PR-22 Pin Receptacle Carrier)
0.200"
(5.08)
0.166 (4.2) DIA. HOLE
2 PLACES
0.062 (1.57) DIA. HOLE
0.090 (2.29) WIDE PAD
0.110 (2.79) LONG PAD
14 PLACES
0.100"
(2.54)
2.350"
(59.70)
Recommended Cleaning Solvent
Tech Spray "Envirotech 1679"
Chemtronics "Flux-off NR 2000"
Figure 3.2: PR-22 Pin Receptacle Carrier
0.107 (2.72) DIA. HOLE
0.156 (3.96) WIDE PAD
0.176 (4.47) LONG PAD
9 PLACES
IM483H/IM805H Rev. R032206
