The Int-483H/Im805H Interface Board; Figure A.2: Hfc-22 Exploded - Intelligent Motion Systems Excellence in Motion IM805H Operating Instructions Manual

HEAT-SINK
THERMAL
PAD
DRIVER
T h e I N T - 4 8 3 H / I M 8 0 5 H I n t e r f a c e B o a r d
One of the key components of the IM483H/IM805H-DK1 is the interface board INT-
483H/805H. The interface board was designed to aid the user in rapid integration of the
IM483H or IM805H driver hybrid into your system.
The key features of the interface board are:
n
n
n
n
n
n
CLIP
FAN

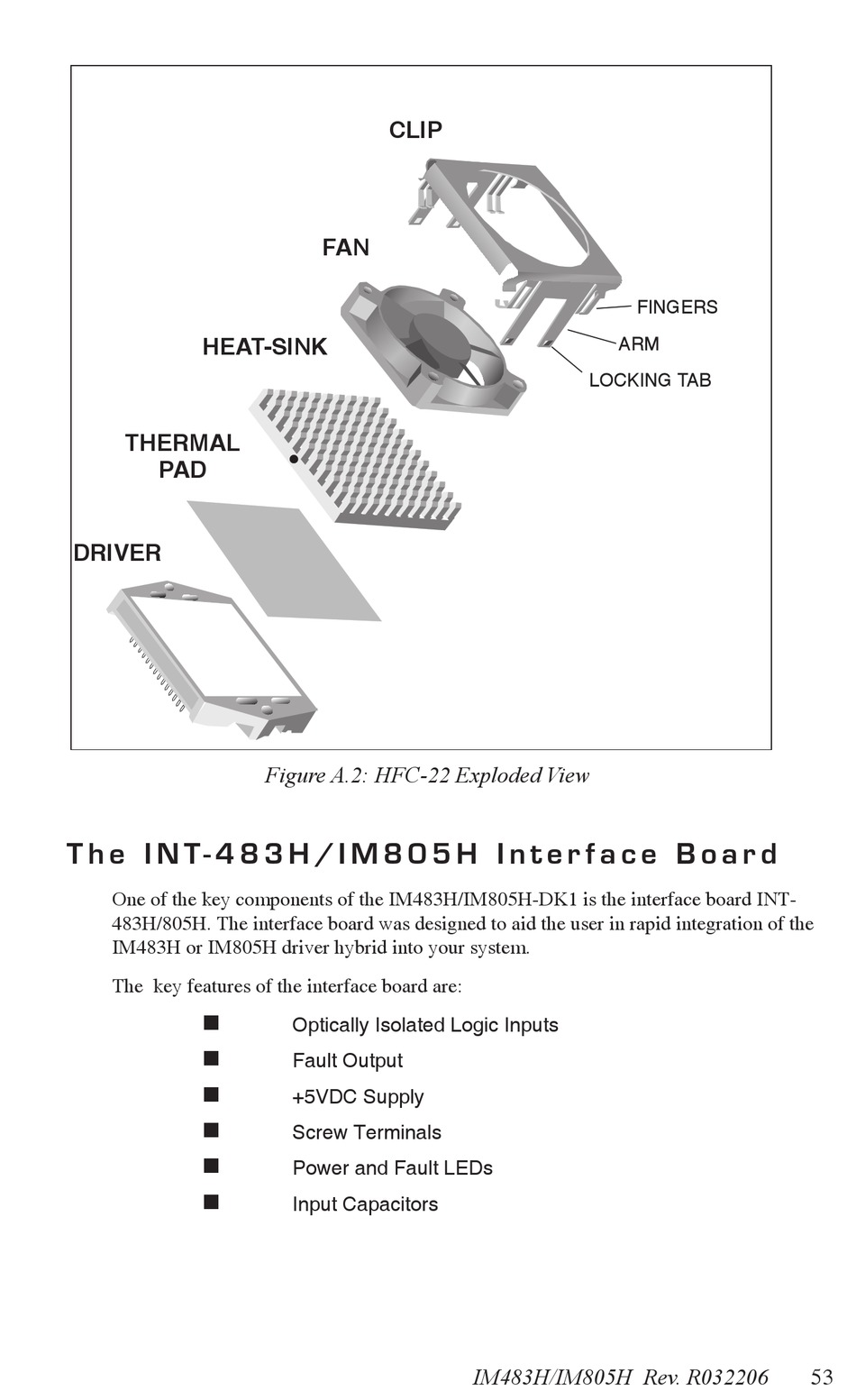

Figure A.2: HFC-22 Exploded View
Optically Isolated Logic Inputs
Fault Output
+5VDC Supply
Screw Terminals
Power and Fault LEDs
Input Capacitors
ARM
LOCKING TAB
IM483H/IM805H Rev. R032206
FINGERS
