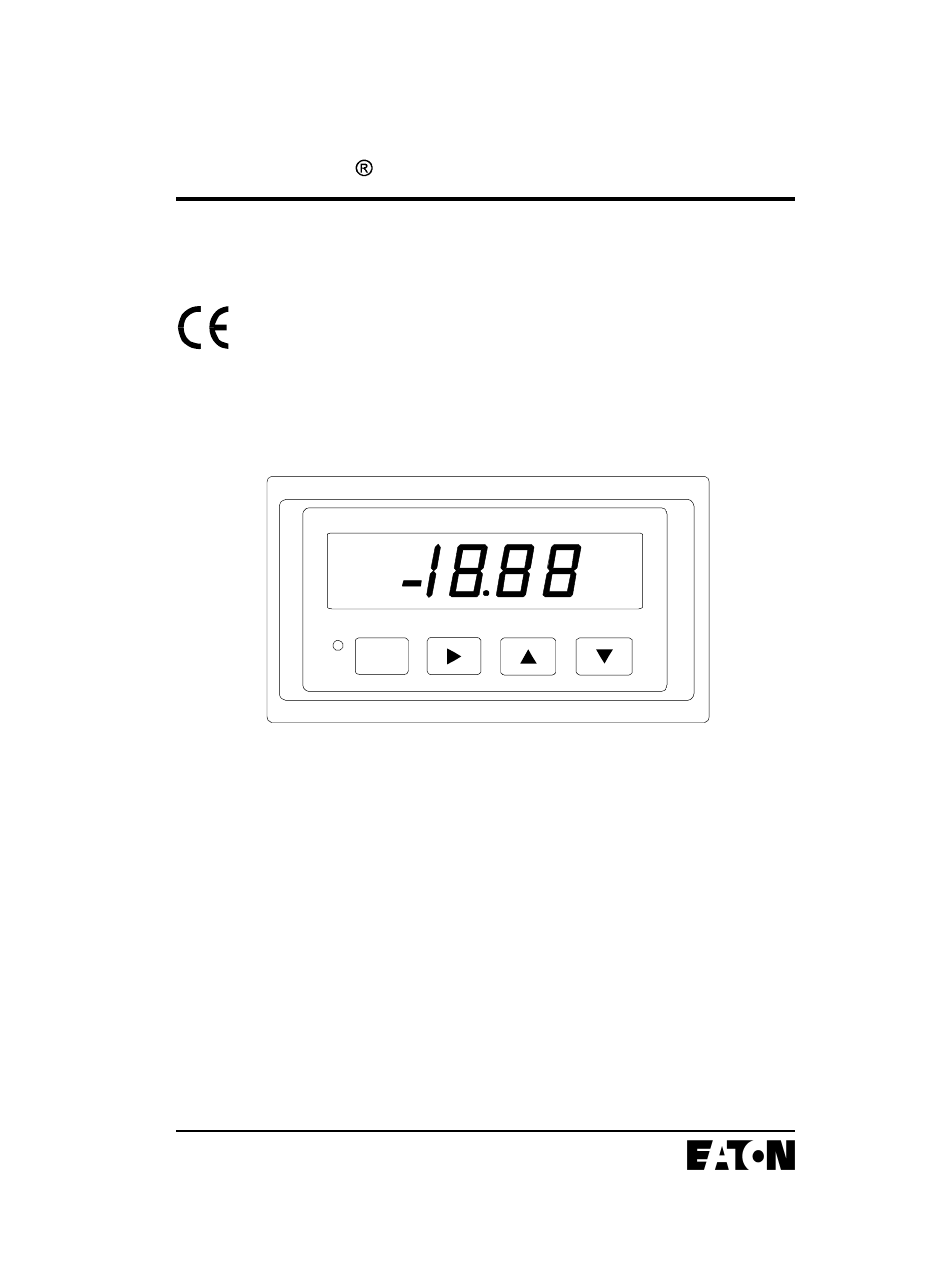

Durant

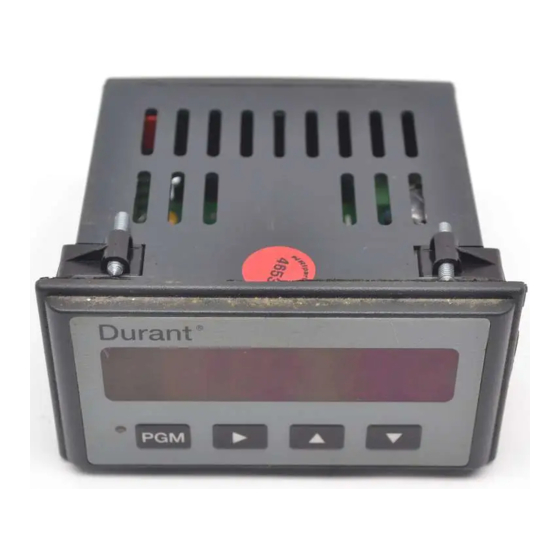

Eclipse Series Digital Panel Meters
Models:
5770X-40X - DC Volts
5770X-41X - AC Volts
5770X-42X - DC Amps
5770X-43X - AC Amps
5770X-44X - 5A AC
5770X-45X - Linear Process Signals
Durant

Table of Contents

1
Introduction
1
Description
3
4
Wiring
9
14
14
17
Durant
®
Visit our Web Site
at www.durant.com
Manual Number 57700-900-05
PG M
Installation and Operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Durant Eclipse Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton Durant Eclipse Series

Summary of Contents for Eaton Durant Eclipse Series

  • Page 1 Durant Installation and Operation Manual Number 57700-900-05 Eclipse Series Digital Panel Meters Models: 5770X-40X - DC Volts 5770X-41X - AC Volts 5770X-42X - DC Amps 5770X-43X - AC Amps 5770X-44X - 5A AC 5770X-45X - Linear Process Signals Durant PG M Table of Contents Introduction Description...
  • Page 2 INTRODUCTION/ DESCRIPTION This manual describes the installation of Durant models 5770X-40X through 5770X- 45X digital panel meters (DPM’s). This manual steps through the installation of the DPM in a logical order. First is a brief description of the base unit and the plug-in option boards.
  • Page 3 DESCRIPTION cont. Example: Relay Output Operation High Setpoint = 4 Relay ON above 4 Low Setpoint = -3 Relay ON below -3 Hysteresis = Relay OFF below 2 and above -1 Display Value -5 -4 -3 -2 -1 Analog Retransmission Option Board The optional analog output board provides linear 0-10 V and 4-20 mA signals.
  • Page 4 MOUNTING Mounting 4.04 3.622 ± .031 [92.0] PANEL CUTOUT MAX. PANEL THICKNESS .190 [4.8] Mounting clips and screws shown in installed positions. Mounting Instructions Slide mounting gasket (not shown) over unit body until adhesive surface makes contact with the front bezel. Slide unit into cutout in panel.
  • Page 5 WIRING WIRING AND DIP SWITCHES All wiring to the DPM is done via rear terminal, de-pluggable connectors. Up to five headers accept the wired connectors on the DPM. All units have at least two head- ers, power input and signal input. Any combination of three additional circuit boards with headers may be installed.
  • Page 6 WIRING cont. Wiring and DIP Switches DC Power Input (for DC powered models 57700-4XX) Durant ® Power In No Internal Fuse External Fuse Size 9-30 VDC 12 VA U.S. European 2 AMP, 50 V T2A, 50 V Time Delay Time Delay AC Power Input (for AC powered models 57701-4XX) Durant ®...
  • Page 7 WIRING cont. Signal Input for AC/DC Voltage and Current and 5A AC DIP Switch Durant ® Positions AC L1 or DC + AC L2 or DC - AC/DC Voltage and Current DIP switch selectable ranges: Switch 4 ON - 200 V / 200 mA Switch 2 ON - 2.0 V / 2.0 mA Switch 3 ON - 20 V / 20 mA Switch 1 ON - 0.2 V / 0.2 mA...
  • Page 8 WIRING cont. Relay Output Option Board Typical Wiring Terminal Designation ® Durant Relay Load External Relay Power Contact Ratings 5 A @250 VAC or 30 VDC maximum An RC surge suppressor is recommended across all inductive loads. RS 485 Communication Option Board To Host Serial Port ®...
  • Page 9 WIRING cont. Analog Output Option Board ® Durant 4-20 mA 0-10 V Common 4-20 mA 0-10 V Output Ratings 4-20 mA into 750 W Ohms) maximum 0-10 V into 2500 W (Ohms) minimum General Wiring Practices An emergency stop switch should be included in the installation: •...
  • Page 10 PROGRAMMING PROGRAMMING Entering the Program Mode Note: If the optional relay output and/or analog output board(s) are installed in the DPM, entering the program mode will cause both relays to turn off and the analog output to go to its minimum values (0V and 4 mA) regardless of the input signal value.
  • Page 11 PROGRAMMING cont. Programming Parameters Programming customizes the DPM’s functions to fit the application. All program- ming may be done by using the front panel program ( ) and arrow keys - up ), down ( ), and right ( ) Programming is done by entering the proper value into each programming parameter.
  • Page 12 PROGRAMMING cont. Press the key to change the selection of the flashing portion of the display. Durant Š 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 Press to enter the new value and go back to the parameter name.
  • Page 13 PROGRAMMING cont. Parameter Default Description/ Name Value Range Input Selection - Model 5770X-45X only! Select the type of process signal being applied. 4-20 mA 0-10 V Hold 1-5 V Press Decimal Point. Choose the location for the display’s decimal point. This location follows through to the offset, full scale, setpoint, and hysteresis programming screens as well as the operator’s display.
  • Page 14 PROGRAMMING cont. Baud Rate. Select the rate in kBaud at which to receive and transmit serial information. Parity. Select the type of parity used for serial communications. none even Analog Output Offset Value. Enter the displayed value that corresponds to the minimum analog output (OV and 4 mA).
  • Page 15 PROGRAMMING cont. /RUN MODE/ DIAGNOSTICS Relay Hysteresis. Enter the value in display units between the relay turn ON values and relay turn OFF values. Range: 0 to 999. RUN MODE Once the unit is installed, it normally displays a value which is updated every 0.4 seconds.
  • Page 16 DIAGNOSTICS cont. values into all programming parameters. This error is recoverable by re-program- ming the DPM. An error message indicates that the calibration section of NOVRAM, or both sections, has been corrupted, or that the calibration data does not match the input board type. THERE IS NO DIAGNOSTIC TEST TO DETERMINE THAT THE DPM IS CALIBRATED! In this case, the unit loads default values into all pro- gramming and calibration parameters.
  • Page 17 DIAGNOSTICS cont. Flip the rear terminal program enable DIP switch ON. Durant ® Durant ® AC/DC VOLTS, AC/DC CURRENT 5A AC/PROCESS While holding both the right arrow key ( ) and the up arrow key ( ), turn unit power ON. Š...
  • Page 18 SPECIFICATIONS MECHANICAL Cutout Dimensions: 3.62” W x 1.77” H (92mm x 45mm) DIN standard Outline Dimensions: 4.04” W x 2.19” H x 3.87” D (103mm x 56mm x 98mm) 3.60” (92mm) maximum depth in panel Enclosure: Plastic with polyester front label Connectors: Up to five de-pluggable terminal blocks INPUT POWER...
  • Page 19 SPECIFICATIONS cont. AC Voltage Models (5770X-41X) Range: 199.9 mVAC, 1.999 VAC, 19.99 VAC, 199.9 VAC, DIP Switch Selectable, all ranges true RMS Frequency: 40 to 1000 Hz Impedance: 1 M W (capacity coupled) Overrange: 750 VDC/530 VAC except 220 VDC/AC on 199.9 mV range Accuracy: +/- 0.5% of reading, +/- 0.13% FS, +/- 0.5 digit, +/- 180 PPM/°C for crest factor = 1 plus +/- 0.7% for crest factor = 1 to 3...
  • Page 20 SPECIFICATIONS cont. OPTIONAL OUTPUTS Relay Board Dual relay: 1 set of form C contacts each Contact rating: 5A, 250 VAC or 30 VDC Isolation dielectric strength: 2300 VAC Analog Retransmission Output signals: 4-20 mA (<750 W) and 0-10 V (>2500 W) Accuracy: 0.13% FS, 100 PPM /°C, 0.07% FS change with 4-20 mA load, +/-0.3% FS for 4-20mA output,...
  • Page 21 The information included herein is believed to be accurate and reliable; however no responsibility is assumed by Eaton Corp., for its use; nor for any infringements of patents or other rights of third parties which may result from its use.
  • Page 22 Durant 901 S. 12th Street Watertown, WI 53094 800/540/9242 • 920-261-4070 Fax 920-261-9097 www.durant.com...

This manual is also suitable for:

Durant eclipse 5770 40 seriesDurant eclipse 5770 41 seriesDurant eclipse 5770 42 seriesDurant eclipse 5770 43 seriesDurant eclipse 5770 44 seriesDurant eclipse 5770 45 series
