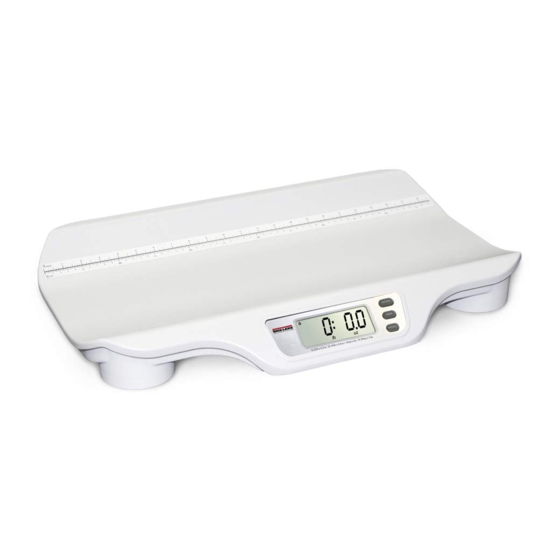

RL-DBS-2
Digital Baby Scale
Technical Manual
July 5, 2018
PN 168522 Rev D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RL-DBS-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rice Lake RL-DBS-2

Summary of Contents for Rice Lake RL-DBS-2

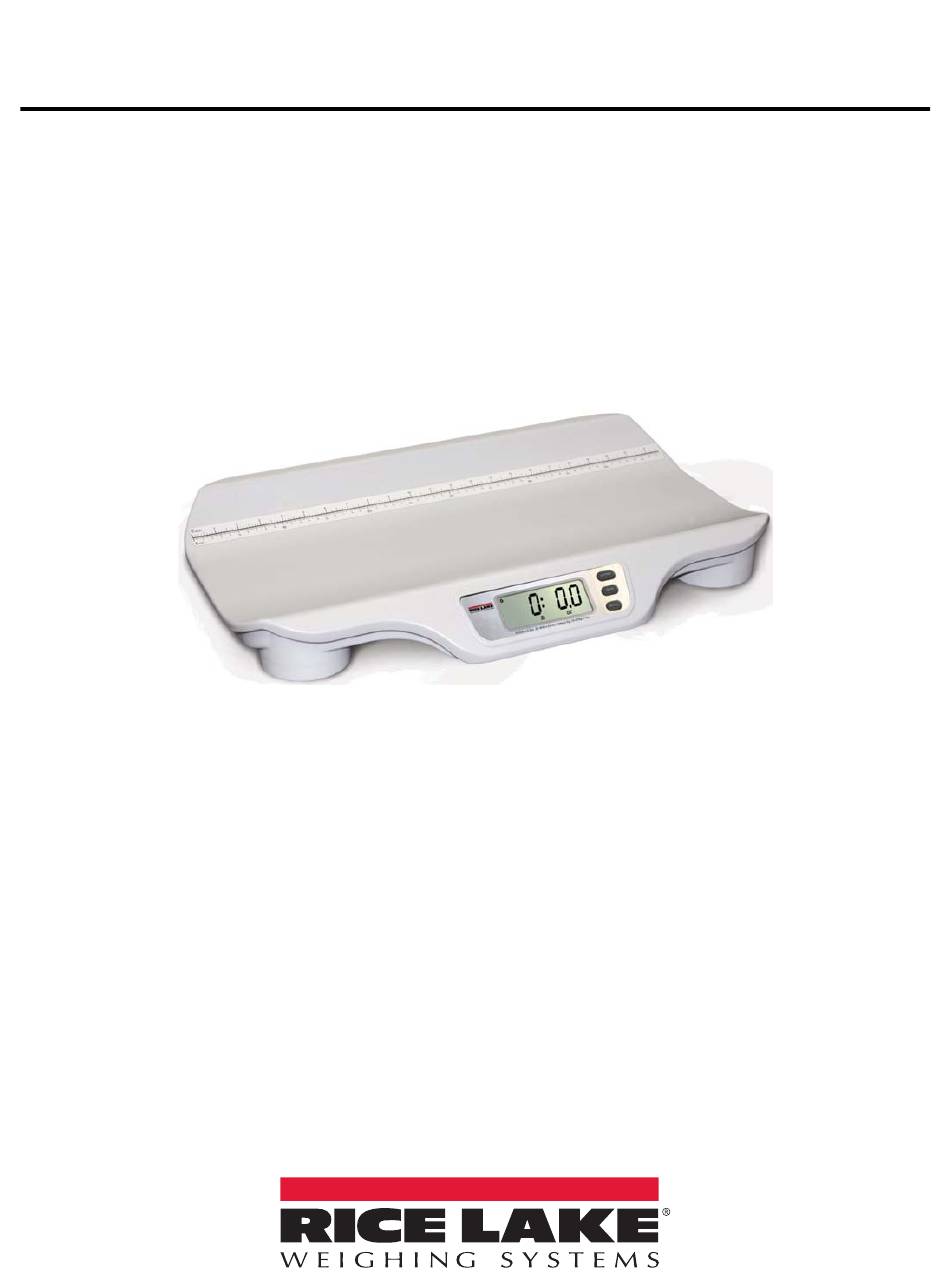

  • Page 1 RL-DBS-2 Digital Baby Scale Technical Manual July 5, 2018 PN 168522 Rev D...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

  • Page 3: Table Of Contents

    RL-DBS-2 Limited Warranty ........
  • Page 4 RL-DBS-2 Digital Baby Scale Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars Visit our website www.RiceLake.com...

  • Page 5: Introduction

    Introduction Introduction The Rice Lake Digital Baby Scale (RL-DBS-2) provides precise weighing of babies with a highly sophisticated microprocessor technology that produces accurate, reliable, and repeatable weighments. Movement compensation technology eliminates errors caused by spontaneous movement of the baby. The weight can be displayed in pounds/ounces or in kilograms.

  • Page 6: Safety

    Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals.

  • Page 7: Assembly

    Figure 2-1. AC Power Connection Site The RL-DBS-2 can also be powered by four AA batteries if an additional power source is not available. Replace the batteries or connect to an AC power source as soon as possible, if the low battery indicator (Lo) displays.

  • Page 8: Setup

    Indicates the scale is weighing in pounds/ounces KG annunciator Indicates the scale is weighing in kilograms Table 3-1. Front Panel with Annunciators Displayed Note The Rice Lake Digital Baby Scale (RL-DBS-2) comes pre-calibrated from the factory. Visit our website www.RiceLake.com...

  • Page 9: Initial Setup

    9. If the problem is not resolved, refer to a qualified service provider. Set Units The RL-DBS-2 can be set up to display weights in lb only, kg only or to toggle between lb and kg units on the scale. 3.3.1 KG Units Only Lock the weight units to display in kg only.

  • Page 10: Operation

    RL-DBS-2 Digital Baby Scale Operation The RL-DBS-2 accurately weighs babies up to 44 lb (20 kg). Use one of the following procedures to weigh a baby. Note If battery powered, and the scale has not been used for two minutes, it automatically turns off to save battery life.

  • Page 11: Calibration

    Calibration Calibration Firmware Version 2016 and After Use the following instructions to calibrate the RL-DBS-2. 1. Ensure the scale is installed on a level surface. 2. Turn the scale on. 3. If using kg weights, the scale needs to be set up using the following instructions (skip to step 4 if calibrating with lb weights).
  • Page 12 RL-DBS-2 Digital Baby Scale • Press and hold (at the same time) until the scale displays CAL. LB/KG ON/TARE • Release the keys. The scale displays the raw A/D counts. • Press . CAL displays and lb lights. RECALL • Press to switch to kg.

  • Page 13: Maintenance

    Maintenance Maintenance The following section provides instructions for maintaining, cleaning and troubleshooting the RL-DBS-2. IMPORTANT Maintenance operations not described in this section must be performed by qualified service personnel. Basic Maintenance • Check the scale for proper operation and function before first use and after periods of non-use.

  • Page 14: Specifications

    RL-DBS-2 Digital Baby Scale Specifications Capacity: 0-22 lb x 0.2 oz (10 kg x 5 g) 22-44 lb x 0.5 oz (10-20 kg x 10 g) Power Requirements: Four AA batteries (included) AC adapter (included) Adapter is UL and C-UL approved...

  • Page 15: Rl-Dbs-2 Limited Warranty

    RL-DBS-2 Limited Warranty RL-DBS-2 Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years.
  • Page 16 RL-DBS-2 Digital Baby Scale Visit our website www.RiceLake.com...

  • Page 18: July

    Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
