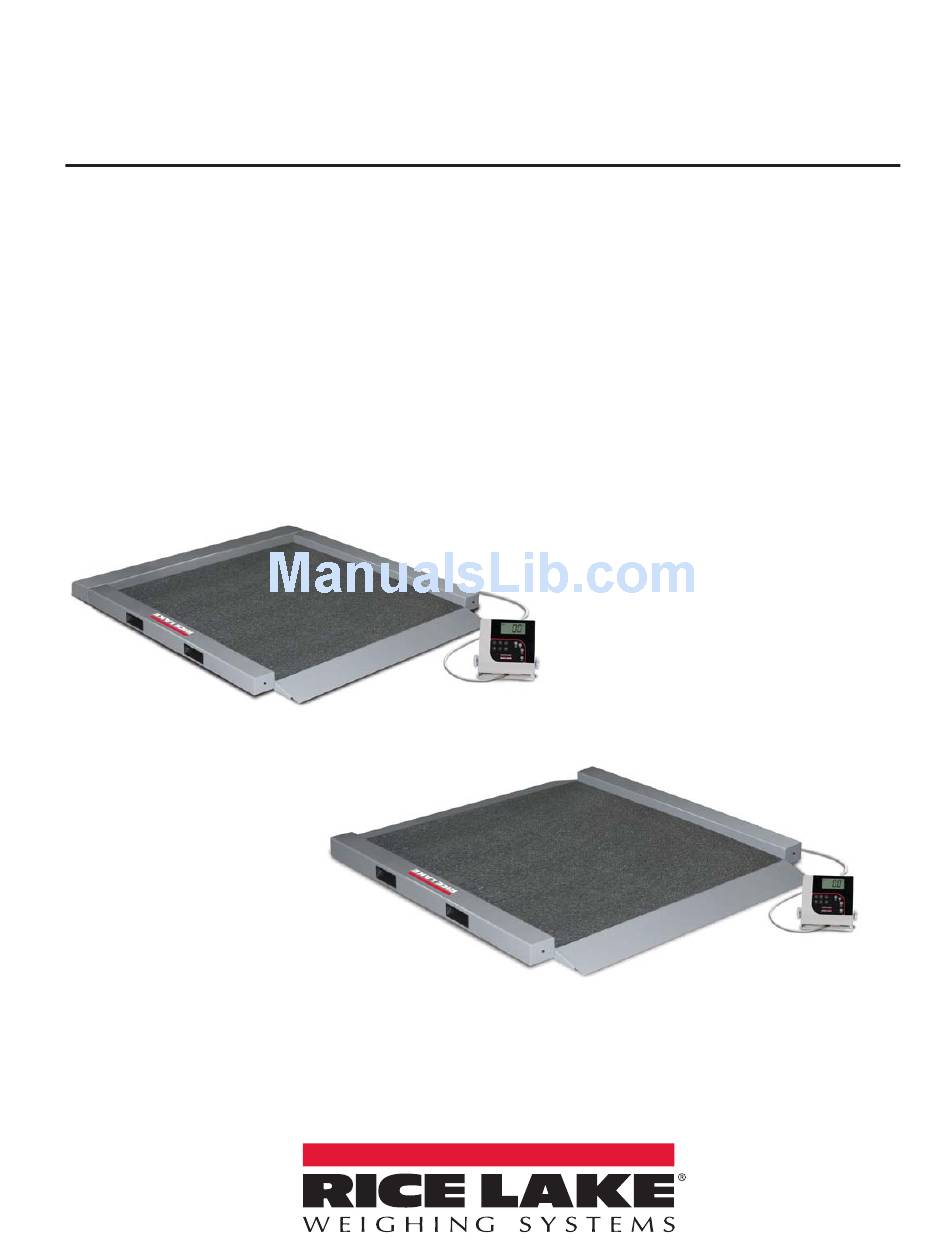

- Page 1 Rice Lake Wheelchair Scale RL350 Series Software Revision 11439 Operation Manual PN 162469 Rev C...
-
Page 3: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. © 2014 Rice Lake Weighing Systems. All rights reserved. Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. Rice Lake Wheelchair Scale Operation Manual...
-
Page 5: Introduction
The Rice Lake Wheelchair Scale is a fully electronic, low profile floor scale that measures 34 in x 34 in (.86 m x .86 m), and has a capacity up to 1000 lb (450 kg). The Rice Lake Wheelchair uses four corner-mounted, alloy steel shear beam load cells, with the cells recessed into the frame channels for protection. -
Page 6: Safety
AC LO Bat power source as soon as possible. • Rice Lake Weighing Systems offers optional AC adaptors, utilizing an adaptor not supplied by us voids all warranties. • To avoid cross contamination, the scale should be cleaned regularly. -
Page 7: Scale Setup
Scale. Unpacking Your Scale The Rice Lake Wheelchair Scale comes shipped in a wooden two piece box. Place the unopened box in an open area that has ample room for unpacking the scale. Recommended tools needed to set up your scale include: •... -
Page 8: Scale Feet Adjustment
1. There must be adequate clearance between the scale base and the floor so screw each foot out counter clockwise two full turns. This will ensure that there is enough clearance between the scale base and the floor. Figure 3-3. Backing Out the Scale Feet Rice Lake Wheelchair Scale Operation Manual... -
Page 9: Cable Connections
Figure 3-5. Indicator Cable Exiting the Side of the Scale Platform 5. When the interface cable is protected and in its final position, complete connections to the indicator as described in Section 4.0. Rice Lake Wheelchair Scale Operation Manual - Scale Setup... -
Page 10: Indicator Setup
Figure 4-1. Remove Tilt Stand From Indicator 2. Remove the four back retaining screws as shown in Figure 4-2 and remove the back cover to the indicator. Figure 4-2. Remove Back Cover of Indicator Rice Lake Wheelchair Scale Operation Manual... -
Page 11: Inserting Batteries
When using battery or USB power supply, the backlight power is deducted to 60%. To maintain battery longevity we recommend you charge it on a regular basis rather than waiting until it is fully discharged. Rice Lake Wheelchair Scale Operation Manual - Indicator Setup... -
Page 12: Ac Power Connections
Use the optional 120 VAC adaptor or 230 VAC adaptor to use when power is available. The AC power adaptor plugs into the back of the indicator as shown in Figure 4-5. Rice Lake Weighing Systems offers optional AC adaptors, utilizing an adaptor not supplied by us voids all warranties. -
Page 13: Scale Operation
Accepts the value of the parameter last entered and moves to the next stage. A long press of the ENTER key during the scale’s start up process will enter the ID display (pre-parameter mode). Table 5-1. Key Functions Rice Lake Wheelchair Scale Operation Manual - Scale Operation... -
Page 14: Weighing
4. To cancel the tare weight, press and hold the key until disappears from the display and the TARE display turns back to appears. Tare weight is also canceled when the scale is turned off. GROSS Rice Lake Wheelchair Scale Operation Manual... -
Page 15: Toggle Tare
6. The BMI value and BMI annunciator is shown on the display. Press the key to return to the CLEAR weighing mode or step off the scale and the BMI function will be turned off. Rice Lake Wheelchair Scale Operation Manual - Scale Operation... -
Page 16: Rs-232 Communication
PATIENT BMI 28.4 USB Connection The Rice Lake Wheelchair Scale has the capability of connecting to a PC using a USB connection and a USB cable (not included). That connection location is shown in Figure 6-1. USB Connection RS-232 Connection Figure 6-1. - Page 17 The USB driver can be downloaded from the Rice Lake Weighing Systems website at the following location; http://ricelake.com/software.aspx Select Medical/Health Scales, Software and Get Downloads. Opening any product will show a USB driver download.
- Page 18 Parpar and print the ticket. The following are examples of tickets that will print. A single print ticket has four spaces after the “patient weight” and only one space between weight and lb in the examples shown above. Then seven <CR><LF> after. Rice Lake Wheelchair Scale Operation Manual...
-
Page 19: Maintenance
Transporting & Storing the Scale For ease of portability, the Rice Lake Wheelchair Scale comes with two built-in handles and wheels. This allows the user to transport the scale from one location to another. Use the following steps to transport the scale or to store it. -
Page 20: Troubleshooting And Testing
Check the load cells’ mechanical surroundings and see that nothing touches them and that the cables are properly welded. Damaged load cell cable Replace load cell cable. Table 8-1. Troubleshooting Table for the Rice Lake Scale Line Rice Lake Wheelchair Scale Operation Manual... -
Page 21: Scale Specifications
Automatic power-off can be configured Environmental Operating Temperature 50 to +104°F (14 to 40°C) Storage Temperature 32 to 158°F (0 to 70°C) Humidity 85% relative humidity Certifications and Approvals RoHS Compliant Rice Lake Wheelchair Scale Operation Manual - Scale Specifications... -
Page 22: For More Information
Fax Number 715-234-6967 Email • U.S. sales and product information at prodinfo@ricelake.com • International (non-U.S.) sales and product information at intlsales@ricelake.com Mailing Address Rice Lake Weighing Systems 230 West Coleman Street Rice Lake, WI 54868 USA Rice Lake Wheelchair Scale Operation Manual... -
Page 23: Rice Lake Wheelchair Scale Limited Warranty
Rice Lake Wheelchair Scale Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. - Page 24 Rice Lake Wheelchair Scale Operation Manual...
- Page 26 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0) 88 2349171 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 09/2014 PN 162469 Rev B...
