- Page 1 RL-DBS Digital Baby Scale Technical & Operating Instructions 118764 - Rev A...
-
Page 3: Table Of Contents
Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com or obtained by calling 715-234-9171 and asking for the training department © 2011 Rice Lake Weighing Systems. All rights reserved. Specifications subject to change without notice. May, 2013... - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. Technical and Operating Instructions...
-
Page 5: Introduction

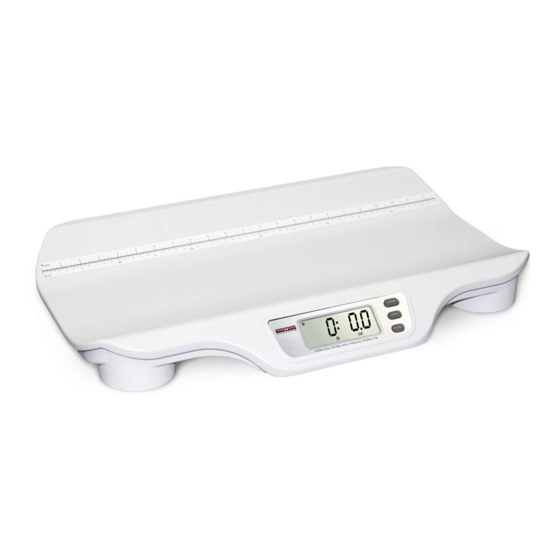

Rice Lake Weighing Systems is an ISO 9001 registered company. Figure 1-1. RL-DBS Digital Baby Scale With the RL-DBS Digital Baby Scale, there are certain precautions that should be taken to prevent injury to the baby and damage to your scale. Please follow these instructions carefully;... -
Page 6: Assembly Instructions
Assembly Instructions The RL-DBS Digital Baby Scale comes fully assembled and includes the scale and a 120V or 230V AC adaptor. To set up the scale: 1. Select a sturdy, flat surface on which to place the scale on. 2. Plug in the 120V or 230V AC adaptor. The AC power adaptor plugs into the back of the indicator as shown below in Figure 2-1. -
Page 7: Scale Setup
Scale Setup ON/TARE LB/KG zero mem RECALL Figure 3-1. RL-DBS Display Use the following table to identify what each part of the display does. Item Description Function ON/TARE key This key turns the scale on and off ON/TARE On Function: One short push for On One push for Off (approx. -
Page 8: Scale Operation
If the setup procedure failed, refer to the troubleshooting section of this manual. If the problem is not resolved, refer to a qualified service provider. Scale Operation with Tare The RL-DBS Digital Baby Scale can accurately weigh babies up to 44 Lb (20 Kg). Use the following steps to weigh a baby. 1. Press the key to turn the scale on. -
Page 9: Calibration
Calibration To perform a calibration, connect the AC adaptor or install four (4) AA batteries and ensure that the scale is sitting on a level surface. The scale can be calibrated with either Lb or Kg weights. The unit is defaulted to calibrate with Lb weights so if you are using LB weighs, proceed to Steps 1-7 (below). -
Page 10: Troubleshooting & Testing
Troubleshooting & Testing Refer to the following instructions to check and correct any failure before consulting service personnel. Symptom Possible Cause Corrective Action Scale does not turn on when using just Dead batteries Connect the scale to a power source or batteries change batteries Scale does not turn on... -
Page 11: Maintenance
Maintenance The following section provides instructions for maintaining and cleaning the RL-DBS Digital Baby Scale. Maintenance operations other than those described in this section should be performed by qualified service personnel. Basic Maintenance Before the first use of the scale and after periods of non-use, check the scale for proper operation and function. If the scale does not operate correctly, contact qualified service personnel. -
Page 12: Rl-Dbs Digital Baby Scale Limited Warranty
RL-DBS Digital Baby Scale Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. - Page 14 PN 118764 05/13...
