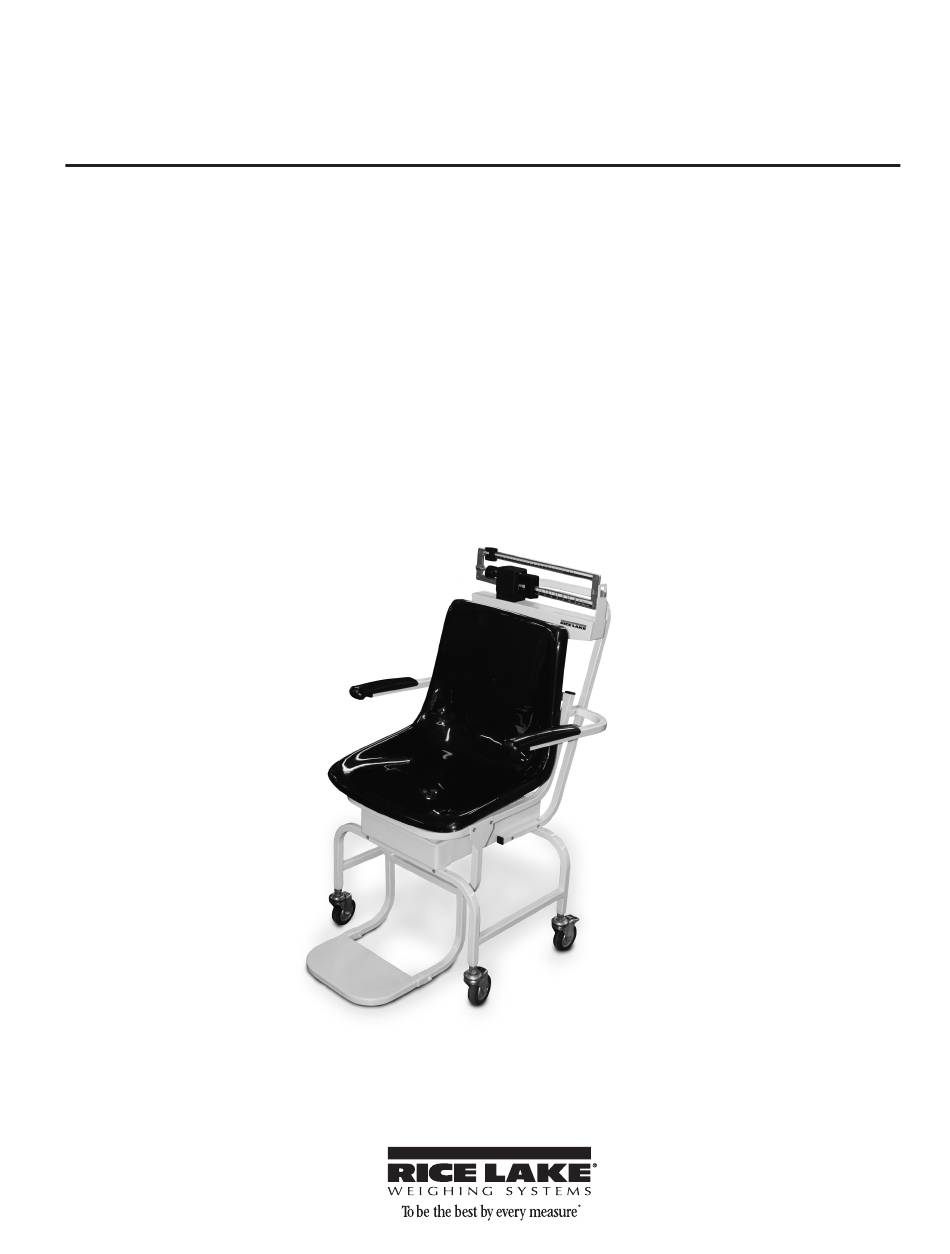

- Page 1 Rice Lake Mechanical Chair Scal Model RL-MCS, RL-MCS-10 Operation Instructions 111372 - Rev A...
-
Page 3: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com or obtained by calling 715-234-9171 and asking for the training department © 2012 Rice Lake Weighing Systems. All rights reserved. Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 Registered Company. Model RL-MCS... - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. Mechanical Chair Scale Installation and Operation Instructions...
-
Page 5: Introduction
Internet at www.ricelake.com/health. Rice Lake Weighing Systems is an ISO 9001 registered company. Additional information for the RL-MCS series scale can be found on the following link and selecting Rice Lake mechanical chair scale: http://www.Ricelakehealth.com/video Figure 1-1. Mechanical Chair Scale... -
Page 6: Installation Instructions
Installation Instructions You will receive your Mechanical Chair Scale partially assembled. Those items that need additional assembly are: • Pillar and beam assembly to scale base • Steelyard rod connection • Transport handle onto scale base • Seat and footrest installation •... -
Page 7: Steelyard Rod Connection
3. Remove the eight screws from the scale base using a Phillips head screwdriver (as shown in the left hand photo) and set screws aside in a safe place. Figure 2-3. Remove Screws From Scale Base and Insert Pillar and Beam into Scale Base Assembly but don’t fasten Insert, the pillar and beam into the scale base assembly as shown in Figure 2-3 (right hand... -
Page 8: Installing Transport Handle
Installing Transport Handle Once the pillar and beam are attached to the scale support frame and secured, it’s time to attach the transport handle to the scale support frame (transport handle is illustrated in Figure 2-6). 1. Remove the four side screws (two on each side as shown in left hand side of Figure 2-6) from the scale support frame and set aside. -
Page 9: Seat And Footrest Installation
Seat and Footrest Installation Once the transport handle is attached the next step is to install the molded seat to the scale support frame. 1. Remove the four screws from the movable scale support frame platform and set aside. Four screws on scale support f r a m e - o n l y o n e s c r e w shown Figure 2-8. -
Page 10: Arm Rest Installation
Push footrest assembly back so that the holes line up. Figure 2-10. Slide the Footrest Assembly So That Holes Line Up Once the footrest is secured and the screws tightened for it, secure the molded seat onto the chair scale frame. - Page 11 1. Locate the bolt hole (x 4) location on the back of the molded chair. two bolts for each arm rest Figure 2-13. Hole Location and Four Bolts Used for Securing Arm Rest to Chair 2. Secure the arm rests to the molded chair using the four bolts (provided and shown in Figure 2-13), using the 5mm allen wrench that’s been provided in this packaging.
-
Page 12: Zero Adjustment
Zero Adjustment To ensure accurate weighments, a zero adjustment should be done to the scale upon arrival and setup. To perform a zero adjustment, perform the following steps. 1. Ensure the scale is sitting on a level surface. 2. Check the eye loop area of the scale to ensure that the scale pointer is equally balanced between the eye loop area. -
Page 13: For More Information
U.S. sales and product information at prodinfo@ricelake.com • International (non-U.S.) sales and product information at intlsales@ricelake.com Mailing Address Rice Lake Weighing Systems 230 West Coleman Street Rice Lake, WI 54868 USA Mechanical Chair Scale Installation and Operation Instructions - Zero Adjustment... -
Page 14: Chair Scale Limited Warranty
Chair Scale Limited Warranty Rice Lake Weighing Systems warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. - Page 16 230 W. Coleman St. Rice Lake, WI 54868 USA U.S. 800-472-6703 Canada/Mexico 800-321-6703 International 715-234-9171 Europe +31 (0) 88 2349171 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com PN 111372 - Rev A 02/14...
