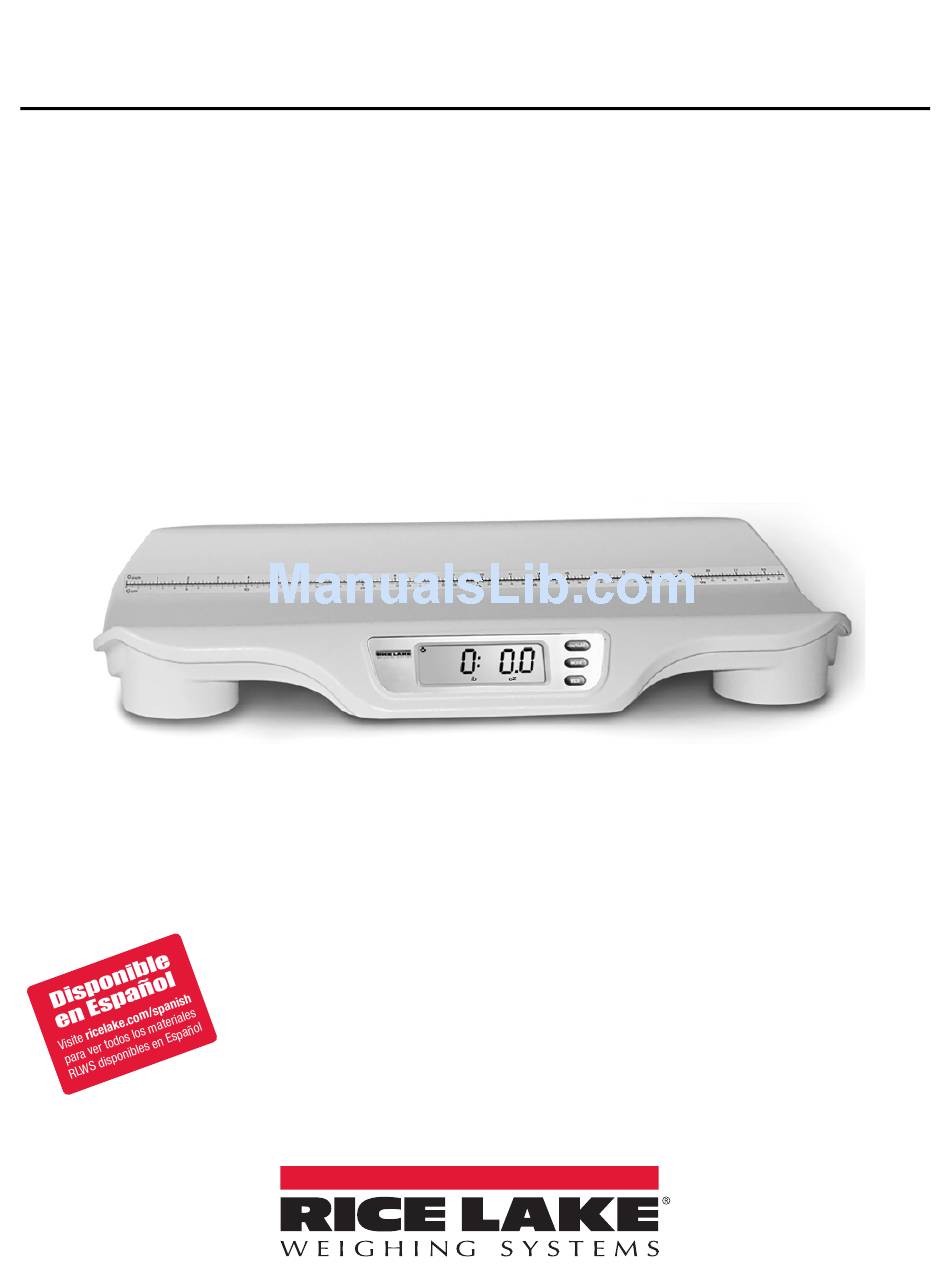

RL-DBS
Digital Baby Scale
Operation Manual
PN 107801 Rev D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RL-DBS and is the answer not in the manual?

Questions and answers

Related Manuals for Rice Lake RL-DBS

Summary of Contents for Rice Lake RL-DBS

  • Page 1 RL-DBS Digital Baby Scale Operation Manual PN 107801 Rev D...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

  • Page 3: Table Of Contents

    Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. © Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice.
  • Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars Digital Baby Scale Operation Manual...

  • Page 5: Introduction

    Introduction The Rice Lake Digital Baby Scale (RL-DBS) provides precise weighing of babies. Highly sophisticated microprocessor technology allows accurate, reliable and repeatable weighments every time. Movement compensation technology eliminates errors caused by spontaneous movement of the baby. The weight display can be displayed in pounds/ounces or in kilograms.

  • Page 6: Safety

    For accurate weighing, verify proper operation according to the procedure described in this manual before each use. Operation at other voltages and frequencies than specified could damage the equipment. Utilizing adapters not supplied by Rice Lake Weighing Systems voids all warranties. Digital Baby Scale Operation Manual...

  • Page 7: Assembly Instructions

    230V Adapter Shown Figure 2-1. AC Power Connection Site The RL-DBS is also capable of running on four AA batteries if an additional power source is not available. If the low battery indicator ( ) displays, replace the batteries or connect to an AC power source as soon as possible.

  • Page 8: Scale Setup

    Scale Setup The RL-DBS has the capability of performing operations beyond just calculating weight. The following section describes the various operating keys and their functions. Display Descriptions ON/TARE LB/KG zero mem RECALL Figure 3-1. RL-DBS Display Item No. Description Motion indicator – displays when a weight reading is complete Not displayed while the weight reading is being calculated Negative or Minus –...

  • Page 9: Set Units

    Use the following steps to set up the RL-DBS: 1. To operate the unit using the AC adapter, plug the AC adapter cable into the back of the scale  (Figure 2-1 on page 3), and the AC adapter plug into a power source.

  • Page 10: Operation

    Operation The RL-DBS can accurately weigh babies up to 44 lb (20 kg). Use the following steps to weigh a baby: 1. Turn on the scale. 2. Wait until (lb/oz) or (kg) displays. 0:0.0 0.00 3. Place a pad on the weighing tray. Make sure that the edges of the pad are on the tray and are not touching the surface on which the scale is positioned.

  • Page 11: Maintenance

    Maintenance The following section provides instructions for maintaining, cleaning and troubleshooting the RL-DBS. Maintenance operations other than those described in this section should be performed by qualified service personnel. Basic Maintenance Before the first use of the scale and after periods of non-use, check the scale for proper operation and function. If the scale does not operate correctly, contact qualified service personnel.

  • Page 12: Specifications

    Specifications Capacity 0-22 lb x 0.2 oz (10 kg x 5 g) 22-44 lb x 0.5 oz (10-20 kg x 10 g) Power Requirements: Four AA batteries (included) AC adapter (included) Adapter is UL and C-UL approved Environmental: Operating temperature: 50 to +104ºF (10 to +40ºC) Storage temperature: -4 to +140ºF (-20 to +60ºC)

  • Page 13: Rice Lake Digital Baby Scale Limited Warranty

    Rice Lake Digital Baby Scale Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years.
  • Page 14 Digital Baby Scale Operation Manual...
  • Page 16 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 www.ricelake.com...
