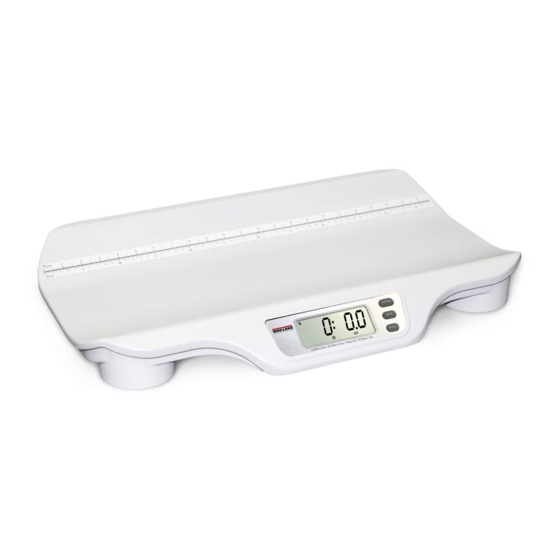

Rice Lake RL-DBS-2 Technical Manual
Dual-range digital baby scale
Hide thumbs
Also See for RL-DBS-2:
- Operation manual (14 pages) ,
- Operation manual (16 pages) ,
- Technical manual (18 pages)
Related Manuals for Rice Lake RL-DBS-2
Summary of Contents for Rice Lake RL-DBS-2
- Page 1 RL-DBS-2 Dual-Range Digital Baby Scale Technical Manual February 10, 2020 PN 168522 Rev E...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
7.0 Specifications ............... . . 10 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 RL-DBS-2 Dual-Range Digital Baby Scale Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...
-
Page 5: Introduction
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 6: Setup
Setup The RL-DBS-2 comes fully assembled and includes the scale and a 120 V or 230 V AC adapter. Immediately after unpacking, visually inspect the RL-DBS-2 to ensure all components are included and undamaged. If parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. -
Page 7: Operation
Operation The RL-DBS-2 accurately weighs babies up to 44 lb (20 kg) and features a dual-range capacity for increased precision from 0-22 lb (0-10 kg). The weighing surface also includes a ruler for measuring the length of the baby. The built-in ruler can measure babies up to 22.5 in (57 cm). -
Page 8: Initial Setup
8. If the problem is not resolved, refer to a qualified service provider. Note Set Units The RL-DBS-2 can be set to display weights in lb/oz only, kg only, or to toggle between lb/oz and kg units on the scale. 3.3.1 KG Units Only Lock the weight units to display in kg only. -
Page 9: Weigh With A Tare
2. Place a baby on the scale. Ο displays when the weight reading is complete. 3. Remove the baby from the scale. 4. Press to display the weight again, if necessary. RECALL © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Calibration
RL-DBS-2 Dual-Range Digital Baby Scale Calibration This section contains procedures on how to calibrate the RL-DBS-2 based on the year of the firmware version. Firmware Version 2016 and After Use the following instructions to calibrate the RL-DBS-2 with a newer version of firmware. -
Page 11: Firmware Version Prior To 2016
Calibration Firmware Version Prior to 2016 Use the following instructions to calibrate the RL-DBS-2 with an older version of firmware. 1. Ensure the scale is installed on a level surface. The scale needs to be off at the start of the calibration procedure. -
Page 12: Maintenance
RL-DBS-2 Dual-Range Digital Baby Scale Maintenance The following section provides instructions for maintaining, cleaning and troubleshooting the RL-DBS-2. Maintenance operations not described in this section must be performed by qualified service personnel. IMPORTANT Basic Maintenance • Check the scale for proper operation and function before first use and after periods of non-use. -
Page 13: Limited Warranty
Limited Warranty Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. -
Page 14: Specifications
RL-DBS-2 Dual-Range Digital Baby Scale Specifications Capacity: 0-22 lb x 0.2 oz (0-10 kg x 5 g) 22-44 lb x 0.5 oz (10-20 kg x 10 g) Power Requirements: Four AA alkaline batteries (included) 120 V or 230 V AC adapter (included) - Page 16 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
