SPECIFICATIONS
Voltage:
EW-205-24 ............................................................................ +24VDC
Current Consumption ................................................................ 7mA
Power Supply ....................... WattStopper Power Pack or DM-105 module
B Series power packs supply power for up to 11 sensors.
BZ Series power packs supply power for up to 15 sensors.
DM-105 HID Bi-Level control module supplies power for up to two
sensors.
DM-115-WP Outdoor HID Bi-Level control module supplies power
for up to two sensors.
Coverage ............................................................................................. 270°
Time Delay Adjustment ....................................................... 12sec.–16min.
Light Level Adjustment ......................................................... 0.5FC–200FC
Operating Temperature................................... -40° to 130°F (-40° to 55°C)
Mountable Locations ...............................Pole, wall, ceiling or under eaves
IEC-IP-55 Raintight Rated

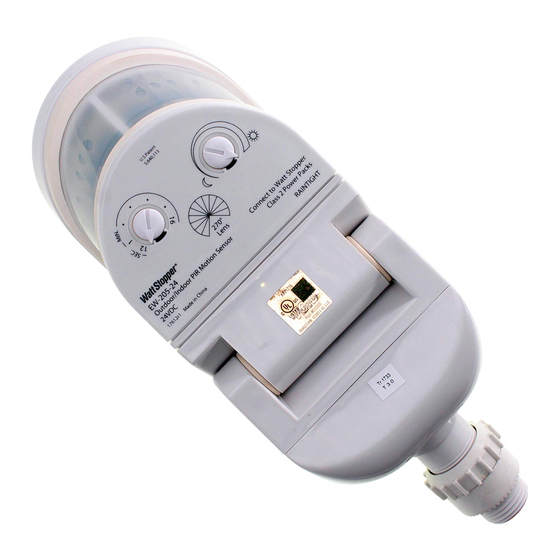

EW-205-24
Low Voltage Outdoor Motion Sensor
U.S.Patents: 4,787,722; 5,640,113
Santa Clara, CA 95050
800.879.8585
Advertisement
Table of Contents
Related Manuals for wattstopper EW-205-24
Summary of Contents for wattstopper EW-205-24
-
Page 1: Specifications
Voltage: EW-205-24 ................+24VDC Current Consumption ..............7mA Power Supply ....... WattStopper Power Pack or DM-105 module B Series power packs supply power for up to 11 sensors. BZ Series power packs supply power for up to 15 sensors. DM-105 HID Bi-Level control module supplies power for up to two sensors. -
Page 2: Table Of Contents
Cover plate for 4" round outdoor junction box, with two cover plate attachment hole plugs, cover plate gasket, cover plate screws & screw covers (4 ea), lens mask, wire nuts (3) • Installation instructions Check Our Web Site For FAQs: www .wattstopper .com... -
Page 3: Description
The EW-205 sensor provides a +24VDC Sensor control output upon motion detection. housing This output can be connected to a WattStopper power pack for on/off lighting control, or to a WattStopper DM-105 or DM-115-WP Outdoor HID Bi-Level control module for high/low control. -
Page 4: Mounting Options
Locking ring and collar must post into the cover plate by the desired angle, then be securely seated against the rotating the sensor. tighten the locking ring. cover plate locking ring. Check Our Web Site For FAQs: www .wattstopper .com... -
Page 5: Mounting And Sensor Positioning Guidelines
Mounting and Sensor Positioning Guidelines Mount to flat, stable, vibration-free surface Avoid runoff – heltered locations preferred Mount motion sensor level Install sensor no higher than 20’ from ground Less than 5' between HID fixture and sensor At least 5' More than between HID 20' from... -
Page 6: Wiring And Installation
(See Security Override, page 9.) Sensor Wire Functions The EW-205-24 has 3 wire connections to the power pack or DM-105 or DM-115 -WP module. See the descriptions and wiring diagrams that follow for connections to each specific power source. -
Page 7: Connecting To A Power Pack
BLUE wire on power pack. Connecting to a DM-105 HID Dimming Module DM-105 Terminals Wire the sensor to a WattStopper DM-105 as shown below: CONTROL OUTPUT • RED wire from sensor to terminal 1 (+24VDC Output) on the CONTROL IN #2 DM-105. -
Page 8: Testing After Installation
We suggest initially setting the light level adjustment to half way between Minimum = minimum and maximum. If a different setting is desired after installation, Maximum = then follow the Making Changes procedures, next page. Check Our Web Site For FAQs: www .wattstopper .com... -
Page 9: Making Changes
Making Changes If you want the lights to turn on/high sooner—turn the light level dial toward the sun icon, as desired; this raises the light level setting. (Remember, the sensor must detect motion for lights to turn on.) • The lights turn on/high sooner in the evening. • The lights stay on/high longer in the morning. -
Page 10: Troubleshooting
(see Wiring and Installation, page 5 & 6). CAUTION: Make sure power is turned off at the circuit breaker before checking wiring. 4. If the sensor is wired correctly, call our Technical Support number. Check Our Web Site For FAQs: www .wattstopper .com... -
Page 11: Ordering Information
WattStopper warranties its products to be free of defects in materials and workmanship for a period of five years. There are no obligations or liabilities on the part of WattStopper for consequential damages arising out of or in connection with the use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation or reinstallation. - Page 12 2800 De La Cruz Boulevard, Santa Clara, CA 95050, USA Technical Support: 800.879.8585 www.wattstopper.com Please 03701r4 09/2014 Recycle...
