wattstopper FSP-211 Installation Instructions

DESCRIPTION AND OPERATION

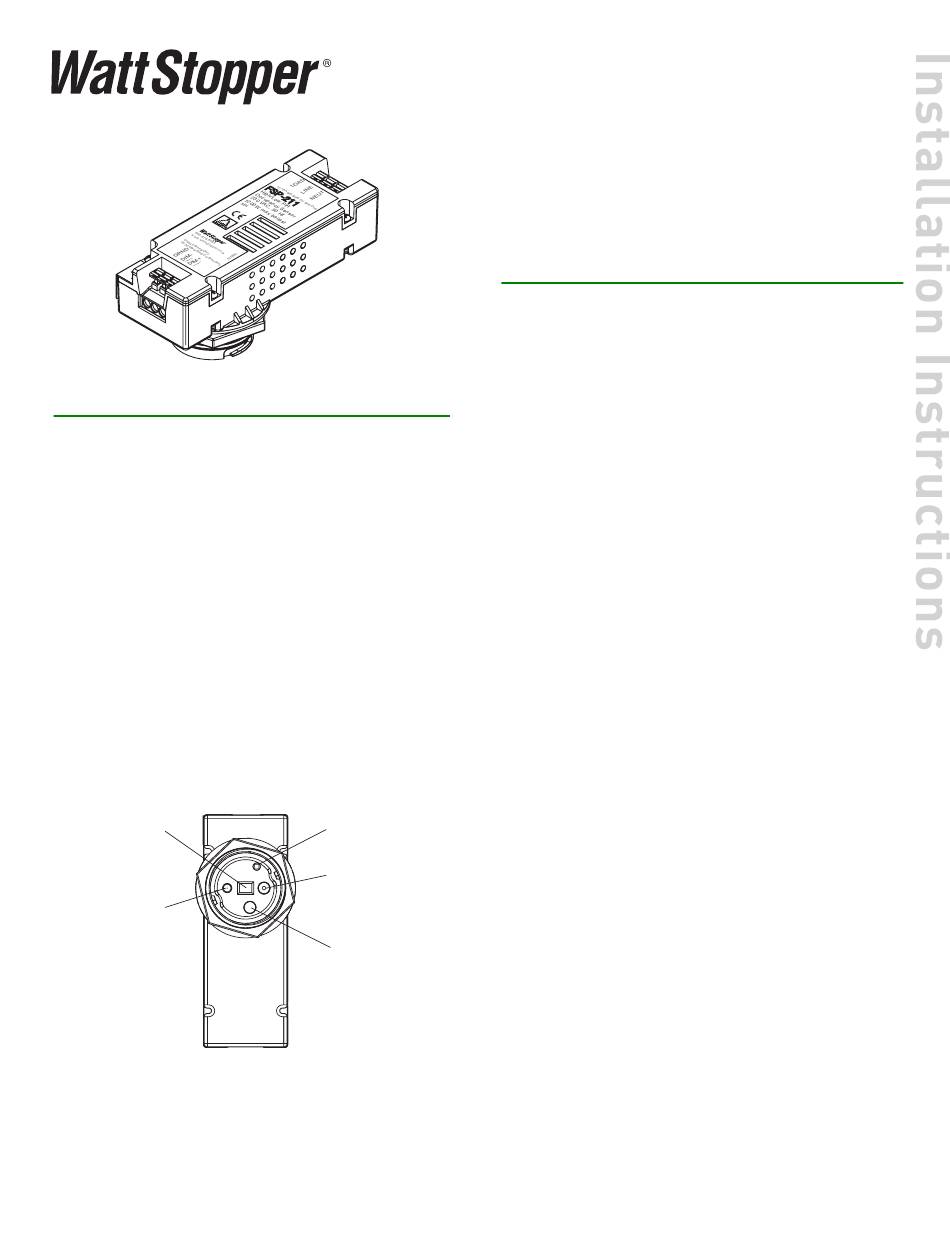

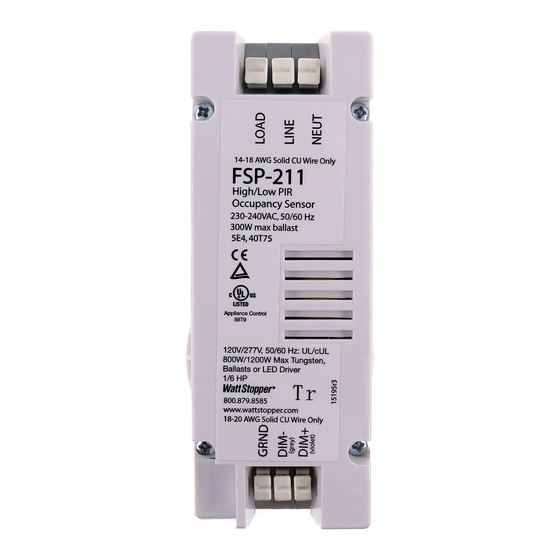

The FSP-211 is a motion sensor that dims lighting from
high to low based on movement. This slim, low-profile
sensor is designed for installation inside the bottom of
a light fixture body. The PIR lens module connects to the
FSP-211 through a 1.30" diameter hole in the bottom of the
fixture.
The sensors use passive infrared (PIR) sensing technology
that reacts to changes in infrared energy (moving body
heat) within the coverage area. Once the sensor stops
detecting movement and the time delay elapses lights
will go from high to low mode and eventually to an OFF
position if it is desired. Sensors must directly "see" motion
of a person or moving object to detect them, so careful
consideration must be given to sensor luminaire placement
and lens selection. Avoid placing the sensor where
obstructions may block the sensor's line of sight.
The FSP-211 operates at 120V/230V-240V Single
Phase/277V, no power pack is required. It is designed to be
installed in indoor and outdoor environments.
PIR Sensor
Motion Indicator
Red LED
Once powering the device up, the FSP-211 will use factory
default parameters to operate. If adjustments are needed,
WattStopper FSIR-100 commissioning tool must be used.

SPECIFICATIONS

Light Sensor
IR Transmitter
IR Receiver
High/Low/Off PIR Fixture
Integrated Outdoor Sensor
Voltage ......................230-240V, 50/60Hz, Single Phase: TUV, CE
Voltage .................................120V/277V, 50/60Hz: UL/cUL Listed
Load Ratings
@230-240V ........................ 0-300W Ballast or LED Driver
@ 120V ............ 0-800W Tungsten, Ballasts or LED Driver
Motor @ 120V/277V .................................................1/6 HP
@ 277V ............................. 0-1200W Ballast or LED Driver
Wiring Terminals
Line Voltage ........................................ Line, Neutral, Load
Low Voltage ............... Dim + (violet), Dim - (grey), Ground
Use Solid or Tinned Stranded Copper Conductor
...................................................................18AWG-14AWG
Operating Temperature ..................-40°F (-40°C) to 167°F (75°C)
Tightning Nut Torque ..................................................25-30 in-lbs
Dimensions
Collar ......................................... 1.30" diameter (33.0mm)
Collar height .............................................0.64" (16.3mm)
Body .....1.38" x 3.8" x 0.9" (35.1mm x 96.5mm x 22.9mm)
Weight ........................................................................ 2.8 oz (80 g)
Coverage
FSP-L2 Lens @ 8' height .....................up to 44' diameter
FSP-L3 Lens @ 20' height ...................up to 40' diameter
FSP-L4 Lens @ 40' height ...................up to 60' diameter
FSP-L7 Lens @ 40' height .................. up to 100' diameter
Adjustments and Features
High Mode ........................................................... 0 V -10 V
Low Mode ........................................... . . . . 0 V - 9.8 V, Off
Time Delay .............................30 seconds, 1 min - 30 min
Cut Off ........................Disable, 1 min - 59 min ,1 hr - 5 hr
Sensitivity ........................ On-Fix, Off-Fix, Low, Med, Max
Hold Off Setpoint .........................Auto, None, 1 fc - 250 fc
Ramp Up ........................................ Disable, 1 sec - 60 sec
Fade Down ..................................... Disable, 1 sec - 60 sec
Photocell Setpoint for On/Off ................................1-250 fc
Factory Defaults
High Mode ...................................................................10 V
Low Mode ............................................................ . . . . 1 V
Time Delay ................................................................5 min
Cut Off ......................................................................... 1 hr
Sensitivity ...................................................................Max
Hold Off Setpoint .................................................. Disable
Ramp Up ................................................................ Disable
Fade Down ............................................................. Disable
Photocell Setpoint for On/Off ................................ Disable
OPEN DEVICE for installation in a Listed Enclosure per
Installation Instructions.
FSP-211
