360° Passive Infrared • Line Voltage
SPECIFICATIONS
Voltages ............................................. 120//230/277/347VAC, 50/60Hz
Load Ratings
@120VAC .........................................0-800W Ballast/Tungsten/LED
@230VAC (Single Phase)...............................0-1200W Ballast/LED
@277VAC ...................................................... 0-1200W Ballast/LED
@347VAC ...................................................... 0-1500W Ballast/LED
Operating Temperature ................................ 32° to 131°F (0° to 55°C)
Light Level One-Step Adjustment .................................... 10FC–300FC
Time Delay Adjustment ............................... 30 seconds to 30 minutes
Walk-Through Mode ..............3 minutes if no activity after 30 sec.
Test Mode .......................................... 5 sec. upon DIP switch reset
PIR Coverage
Model CI-355 ............................................................... up to 1200ft
Model CI-355-1 ............................................................. up to 500ft
Sensitivity Adjustment ............................ High or Low (DIP switch)

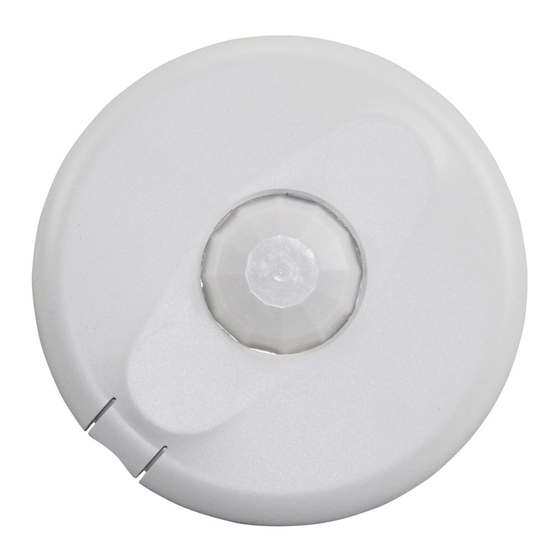

CI-355
Occupancy Sensor
with Light Level feature
Santa Clara, CA 95050
v3
2
2
Advertisement
Table of Contents
Related Manuals for wattstopper CI-355
Summary of Contents for wattstopper CI-355
-
Page 1: Specifications
Walk-Through Mode ....3 minutes if no activity after 30 sec. Test Mode .......... 5 sec. upon DIP switch reset PIR Coverage Model CI-355 ............... up to 1200ft Model CI-355-1 ............. up to 500ft Sensitivity Adjustment ......High or Low (DIP switch) -
Page 2: Unit Description
COVERAGE PATTERN The CI-355 provides a 360° coverage pattern. Two lens patterns are available. The CI-355 provides up to 1200 square feet of coverage and the CI-355-1 provides up to 500 square feet of coverage. The coverage shown represents walking motion at a mounting height of 8 feet. -
Page 3: Placement Guidelines
Mount the sensor to the ceiling. The CI-355 is designed for a ceiling height of about 8-12 feet. Mounting above or below this range will significantly affect the coverage patterns. - Page 4 WIRING DIRECTIONS CAUTION TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE INSTALLING SENSORS. #12 to #16 AWG Neutral Load Strip Gauge Cu Wire Only Switch Load Ground Neutral (Optional) Single Sensor, Single Load Neutral Load Load Line Load Line Ground Ground Neutral Neutral...
-
Page 5: Mounting The Sensor
J-Box. The Junction Box must be at 5. Snap the front cover onto the sensor. least 2.25” deep. If it is not, an extension ring is required. Visit our website for FAQs: www.wattstopper.com... -
Page 6: Sensor Adjustment
SENSOR ADJUSTMENT This unit is pre-set for basic operation as described in this guide. Adjustment is optional. The sensors are factory preset to allow for quick installation in most applications. Verification of proper wiring or coverage, or customizing the sensor’s settings can be done using the following procedures. - Page 7 The sensor measures the light level for a 10 second period, then averages the readings and automatically sets the level that will be used as the new setting. The sensor will hold lights off when the ambient light exceeds this setting. Visit our website for FAQs: www.wattstopper.com...
- Page 8 5. When the LED stops flashing, replace the Front Cover. *Disabling Light Level Pressing the pushbutton for 5 seconds or more resets the light to default (maxi- mum). Press and hold the Light Level button over 5s, the LED will be ON and then OFF showing 5s mark has passed.
-
Page 9: Dip Switch Setting
DIP SWITCH SETTING Feature Switch# The CI-355 has 6 DIP switches under the cover. 1 2 3 Time Delay Time Delay: Switches 1, 2, 3 Test Mode/20 min 30 seconds The sensor will hold the lights ON as long as 5 minutes occupancy is detected. -
Page 10: Troubleshooting
TROUBLESHOOTING CAUTION TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE WORKING WITH OR NEAR HIGH VOLTAGE. For any unexpected operation 1. Check DIP switch settings. 2. Make sure the switches are set according to the defined settings in the DIP Switch Setting chart. Lights do not turn ON with occupancy, and the following condition exists: Red LED does not flash: 1. - Page 11 (maximum). Possible solutions 1. Mask the lens to reduce PIR coverage (see “Masking the PIR Lens”, under “Placement Guidelines”). 2. Set Dip switch 5 to Minimum (ON) and see if activations stop. 3. Relocate the sensor. www.wattstopper.com...
-
Page 12: Ordering Information
WattStopper warranties its products to be free of defects in materials and workmanship for a period of five (5) years. There are no obligations or liabilities on the part of WattStopper for consequential damages arising out of or in connection with the use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation or reinstallation.
