Specifications
Voltages:
PW-100 & PW-200. . . . . . . . . . . . . . . . 120/277VAC, 50/60Hz
PW-100-347 & PW-200-347. . . . . . . . . . . . 347VAC, 50/60Hz
Load Limits for each relay:
@120VAC. . . . . . . . . . . . .0-800W tungsten or ballast, 1/6 HP
@277VAC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-1200W ballast
@347VAC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-1500W ballast
Load Type Compatibility:
Incandescent, fluorescent, magnetic or electronic ballast
Horsepower Rating (each relay) . . . . . . . . . 1/6 HP @120VAC
Time Delay Adjustment . . . . . . . . . . . . . . . . . . . .5 to 30 minutes
Walk-Through Mode. . 3 minutes if no activity after 30 sec.
Test Mode. . . . . . 5 sec. for 10 min. with DIP switch setting
PIR Adjustment . . . . . . . . . . . . . . . . . . .High or Low (DIP switch)
Light Level Adjustment . . . . . . . . . . . . . . . . . . . . . . 8fc to 180+fc
Alerts
. . . . . . . . . . . . . . . . . . . . . . Selectable Audible & Visual

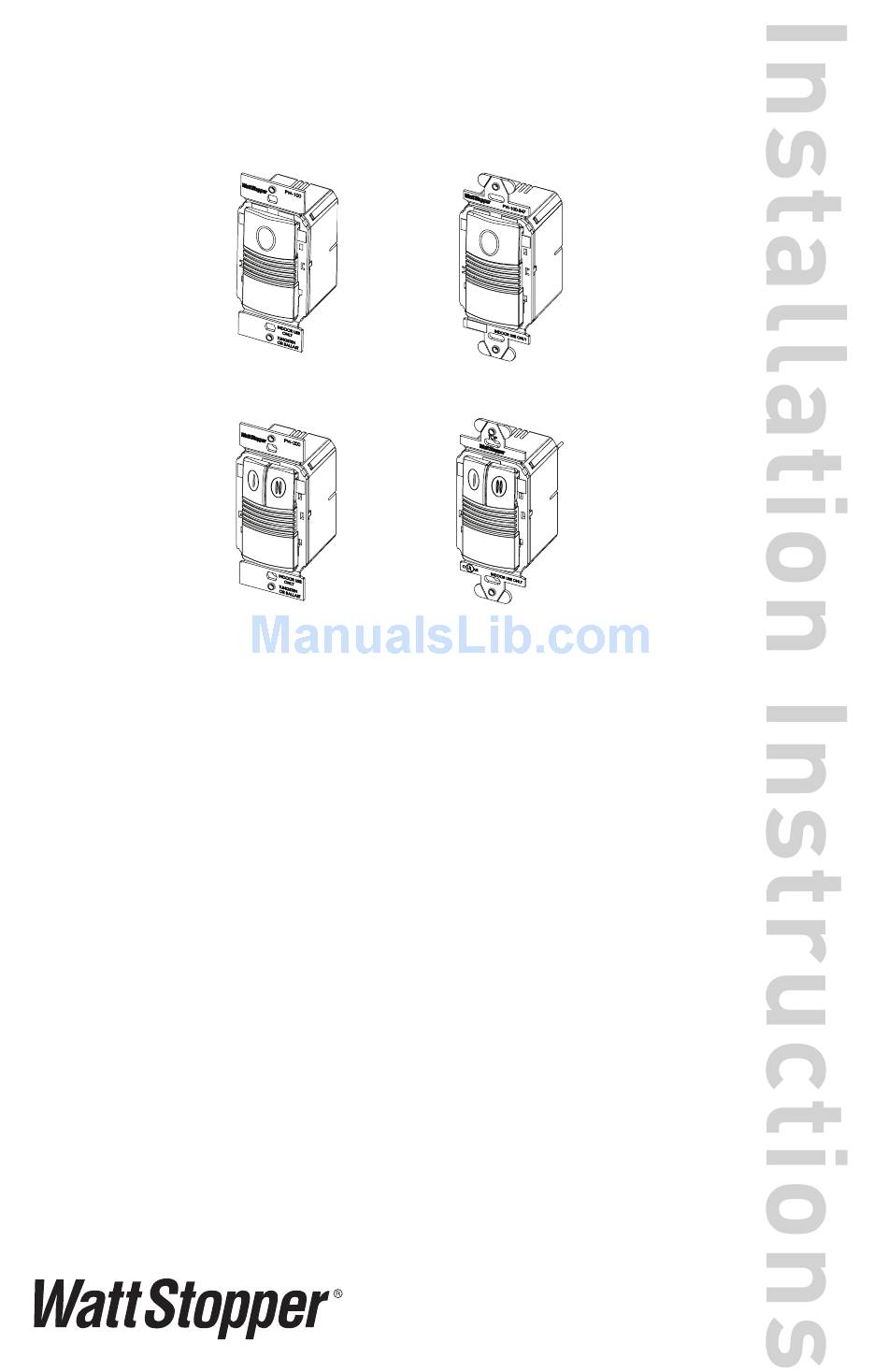

PW-100/PW-100-347/PW-200/PW-200-347
PW-100
PW-200

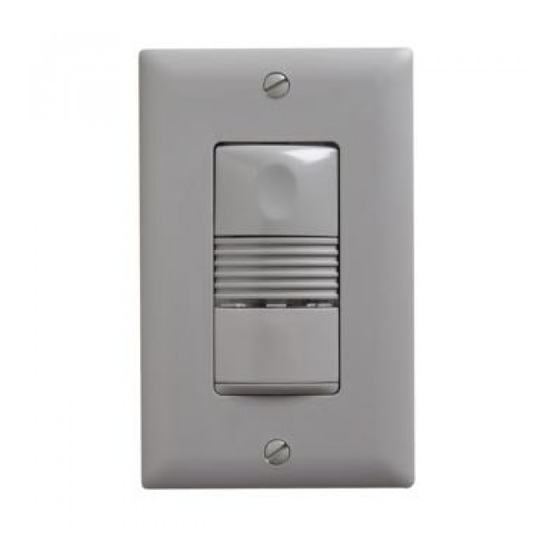

Passive Infrared Wall Switch
Occupancy Sensor
PW-100-347
PW-200-347
US Patents: 5640113, 6617560
Santa Clara, CA 95050
800.879.8585
v3
Advertisement
Table of Contents
Related Manuals for wattstopper PW-100
Summary of Contents for wattstopper PW-100
-
Page 1: Specifications
Specifications Voltages: PW-100 & PW-200....120/277VAC, 50/60Hz PW-100-347 & PW-200-347... . 347VAC, 50/60Hz Load Limits for each relay: @120VAC. -
Page 2: Unit Description And Operation
OFF. Pressing the button to turn lights ON returns the sensor to Auto ON mode. for Relay 2 PW-100: Switch 9 is not used. PW-200: Switch 9 default is ON to comply with CA Energy Commission Title 24 bi-level switching requirements. Model #... -
Page 3: Time Delays
Reduces sensitivity by approximately 50%. Useful in Low, 50% cases where the PIR is detecting movement outside of (DIP #5 ON) the desired area (also consider masking the lens) and where heat sources cause unnecessary activation. Visit our website for FAQs: www.wattstopper.com... -
Page 4: Coverage Patterns
Alerts The PW can provide audible and/or visible alerts as a warning before the load turns OFF. Visible Alert When only one minute is left in the time delay, the load connected to the relay turns OFF for one second. (DIP #6 ON) This provides a one minute warning before the load(s) are turned OFF by the sensor. -
Page 5: Installation
Primary Load Primary Line 2 Blue Blue Load Ground Green/Yellow Ground Green/Yellow Secondary Brown Brown Secondary Load Load Ground Green Ground Green Neutral PW-200 and PW-200-347 PW-200 and PW-200-347 Bi-Level Wiring Dual Circuit Wiring Visit our website for FAQs: www.wattstopper.com... -
Page 6: Dip Switch Settings
& light level functions. Control the =OFF PW-200 series load manually using ON/OFF button. ON/OFF Buttons Relay 1 Relay 2 DIP Switches Tabs Detection LED Button Hinges PIR Lens PW-200 shown. PW-100 has a single button. Call 800.879.8585 for Technical Support... -
Page 7: Sensor Adjustment
ADJUSTMENTS Sensor Adjustment Remove the wall plate. Remove the button cap by firmly squeezing together the top sides of the button assembly. Gently pull it away from the unit. When the adjustments are completed, replace the button cap by inserting its hinges into the tabs on the main unit and then squeeze the top of the button while pressing it into the unit. -
Page 8: Cover Plates
WattStopper warranties its products to be free of defects in materials and workmanship for a period of five years. There are no obligations or liabilities on the part of WattStopper for consequential damages arising out of or in connection with the use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation or reinstallation.
