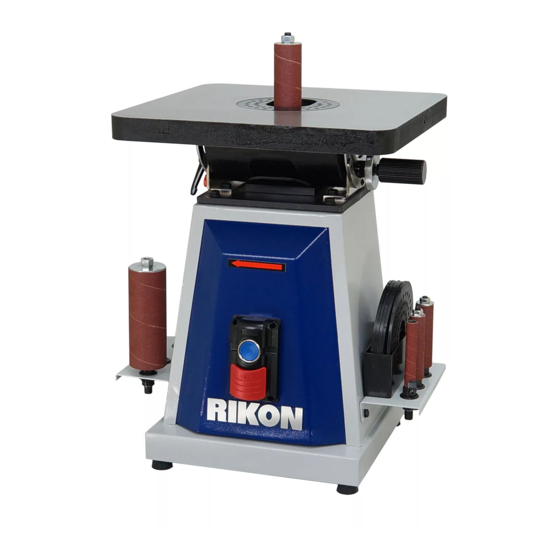

Oscillating spindle sander

Advertisement

Quick Links

50-300
Oscillating Spindle Sander
Operator's Manual
Record the serial number and date of purchase in your manual for future reference.
The serial number can be found on the specification label on the rear of your machine.
Serial Number: _________________________
Date of purchase: _________________________
For technical support, email techsupport@rikontools.com - For parts questions, email parts@rikontools.com
www.rikontools.com
50-300M2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50-300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rikon Power Tools 50-300

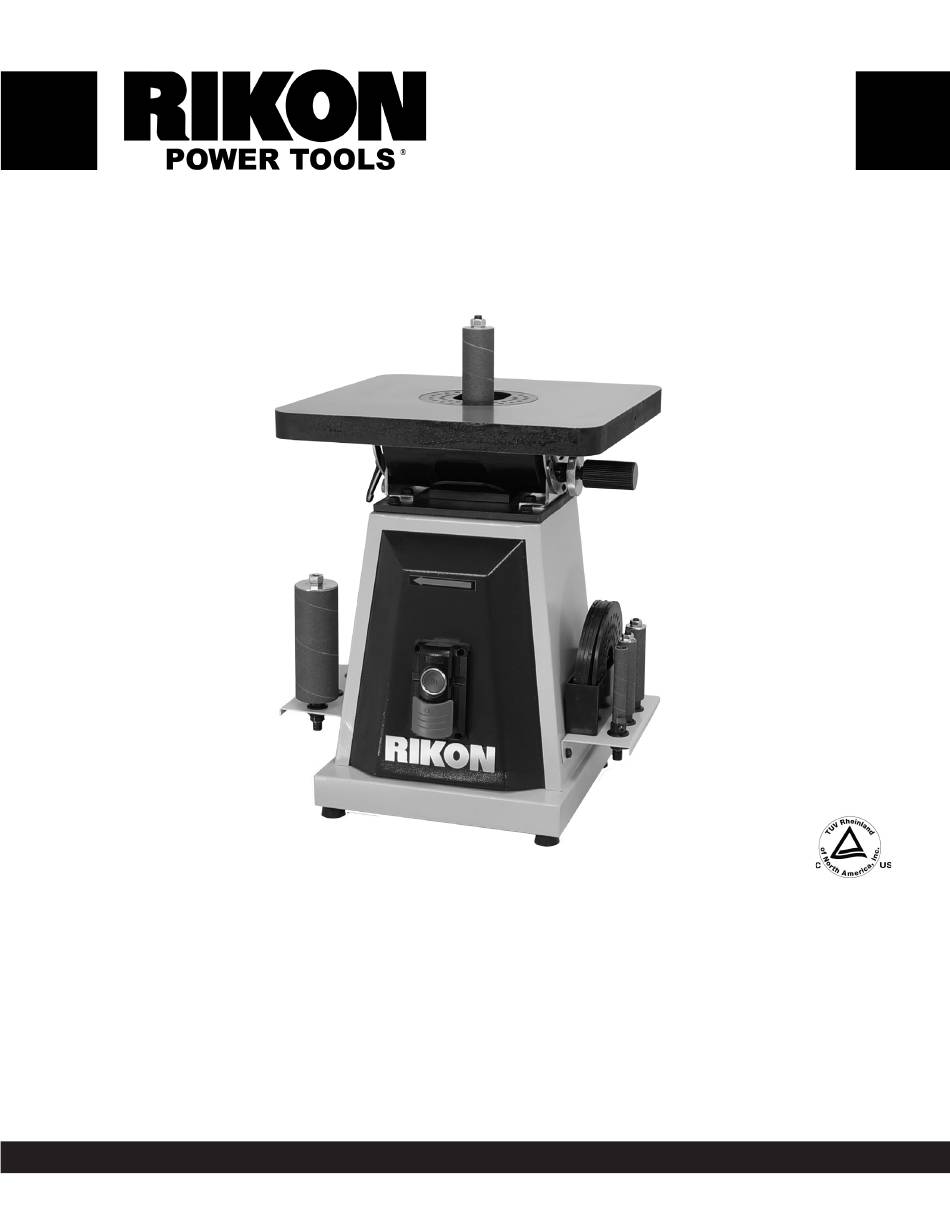

  • Page 1 50-300 Oscillating Spindle Sander Operator’s Manual Record the serial number and date of purchase in your manual for future reference. The serial number can be found on the specification label on the rear of your machine. Serial Number: _________________________ Date of purchase: _________________________ For technical support, email techsupport@rikontools.com - For parts questions, email parts@rikontools.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Specifications ............................2 Safety Warnings............................3-6 Electrical Requirements ........................5 & 18 Sander Safety Rules ..........................6 Contents of Package ............................7 Getting to Know Your Machine ........................8 Assembly/Adjustments......................8-10 Operation........................11-12 Maintenance.........................13 Troubleshooting............................13 Parts Diagrams & Parts Lists........................14-17 Wiring Diagram............................18 Accessories ........................18 N ote s ......................1 8 Warranty ..........................19 SPECIFICATIONS Motor ................
  • Page 3: Safety Warnings

    SAFETY INSTRUCTIONS IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. There are certain applications for which this tool was designed.
  • Page 4 SAFETY INSTRUCTIONS 12. KEEP PROTECTIVE GUARDS IN PLACE AND IN 25. ALWAYS WEAR A DUST MASK TO PREVENT WORKING ORDER. INHALING DANGEROUS DUST OR AIRBORNE PARTICLES, including wood dust, crystalline silica dust 13. AVOID ACCIDENTAL STARTING. Make sure that and asbestos dust. Direct particles away from face and the power switch is in the “OFF”...
  • Page 5: Electrical Requirements

    SAFETY INSTRUCTIONS EXTENSION CORDS ELECTRICAL SAFETY THE USE OF AN EXTENSION CORD THIS TOOL MUST BE GROUNDED WITH THIS MACHINE IS NOT RECOMMENDED. For WHILE IN USE TO PROTECT THE OPERATOR FROM best power and safety, plug the machine directly into a ELECTRIC SHOCK.
  • Page 6: Sander Safety Rules

    SAFETY INSTRUCTIONS SPECIFIC SAFETY INSTRUCTIONS FOR SANDERS This machine is intended for the surfacing of natural, solid woods and composite materials. Any other use not as specified, including modification of the machine or use of parts not tested and approved by the equipment manufacturer can cause unforeseen damage, and invalidate the warranty.
  • Page 7: Contents Of Package

    CONTENTS OF PACKAGE Sander Tool Holders for Drums (2) & Hardware Wrenches (2) - 14mm, 17mm Holder for Table Inserts & Screws Table Inserts (6) Sanding Drums (5) - 1/2”, 3/4”, 1”, 1-1/2”, 2” Rubber Feet (4) & Hardware Manual & Warranty Card (not shown) UNPACKING AND CLEAN-UP 1.
  • Page 8: Getting To Know Your Machine

    GETTING TO KNOW YOUR MACHINE Spindle with Sanding Sleeve ON / OFF Safety Switch Work Table Holder for Spindles Dust Port Table Insert (installed in table) Cam for Table Leveling Holder for Table Inserts Table Angle Scale and Locking Handle Table Inserts Holder for Spindles Geared Handle with Lock for Tilting Table...
  • Page 9 ASSEMBLY INSTALL SANDPAPER ONTO THE SPINDLES THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN The sander is supplied with 5 rubber cylinder THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE Spindles, 1/2”, 3/4”, 1”, 1-1/2” and 2” diameters, that COMPLETE.
  • Page 10 INSTALL THE TABLE INSERT THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN The 50-300 Spindle Sander comes with a variety THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE of Table Inserts, each with a different center hole COMPLETE.
  • Page 11: Operation

    USING THE OSCILLATING SPINDLE SANDER FIG. 9 1. Start the machine and wait until the motor has build up to full speed. The 50-300 Sander features a SPINDLE spindle that automatically oscillates (moves up and OSCILLATES down) 24mm (15/16”). This movement ensures that UP &...
  • Page 12 OPERATION CONTINUED FROM PAGE 11 Before turning on the machine, review the safety precautions listed on pages 3 to 3. NEVER feed the work into the machine and stand 6. Make sure that you fully understand the features, with your body directly behind it. The machine could adjustments and capabilities of the machine that are force the work into the operator and cause serious outlined throughout this manual.
  • Page 13: Maintenance

    MAINTENANCE Turn the power switch “OFF” and disconnect the plug from the outlet prior to adjusting or maintaining the sander. DO NOT attempt to repair or maintain the electrical components of the motor. Take the sander to a qualified service technician for this type of maintenance. MAINTENANCE REQUIRED FREQUENCY Check the power cord and plug for any damage.
  • Page 14: Parts Diagrams & Parts Lists

    PARTS DIAGRAM 50-300 OSCILLATING SPINDLE SANDER DIAGRAM A...
  • Page 15 PARTS LIST 50-300 OSCILLATING SPINDLE SANDER DIAGRAM A PART PART DESCRIPTION DESCRIPTION P50-300-1A Insert for 1/2, 3/4, 1” spindles 50-4001 Machine body P50-300-2A Insert 1-1/2, 1-3/4, 2” Worktable bracket 50-4002 spindles P50-300-3A Insert for 3” spindle 50-4003 Worktable bracket P50-300-4A...
  • Page 16 PARTS DIAGRAM 50-300 OSCILLATING SPINDLE SANDER DIAGRAM B...
  • Page 17 PARTS LIST...
  • Page 18: Wiring Diagram

    Ready to install, includes the threaded arbor, 4-1/2” rubber Resin bonded, cylinder, top washer and nut. Aluminum Oxide Fits 50-300 Spindle Sander only. Abrasives, 4-1/2” long. Packs of 5 or 3 as 50-3012 1/2” Diameter listed below. 50-3034 3/4” Diameter 50-3001 1”...
  • Page 19: Warranty

    ® 5-Year Limited Warranty RIKON Power Tools Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred.
  • Page 20 50-300 For more information: 16 Progress Road Billerica, MA 01821 877-884-5167 / 978-528-5380 techsupport@rikontools.com Link to RIKON Website www.rikontools.com 50-300M2...
