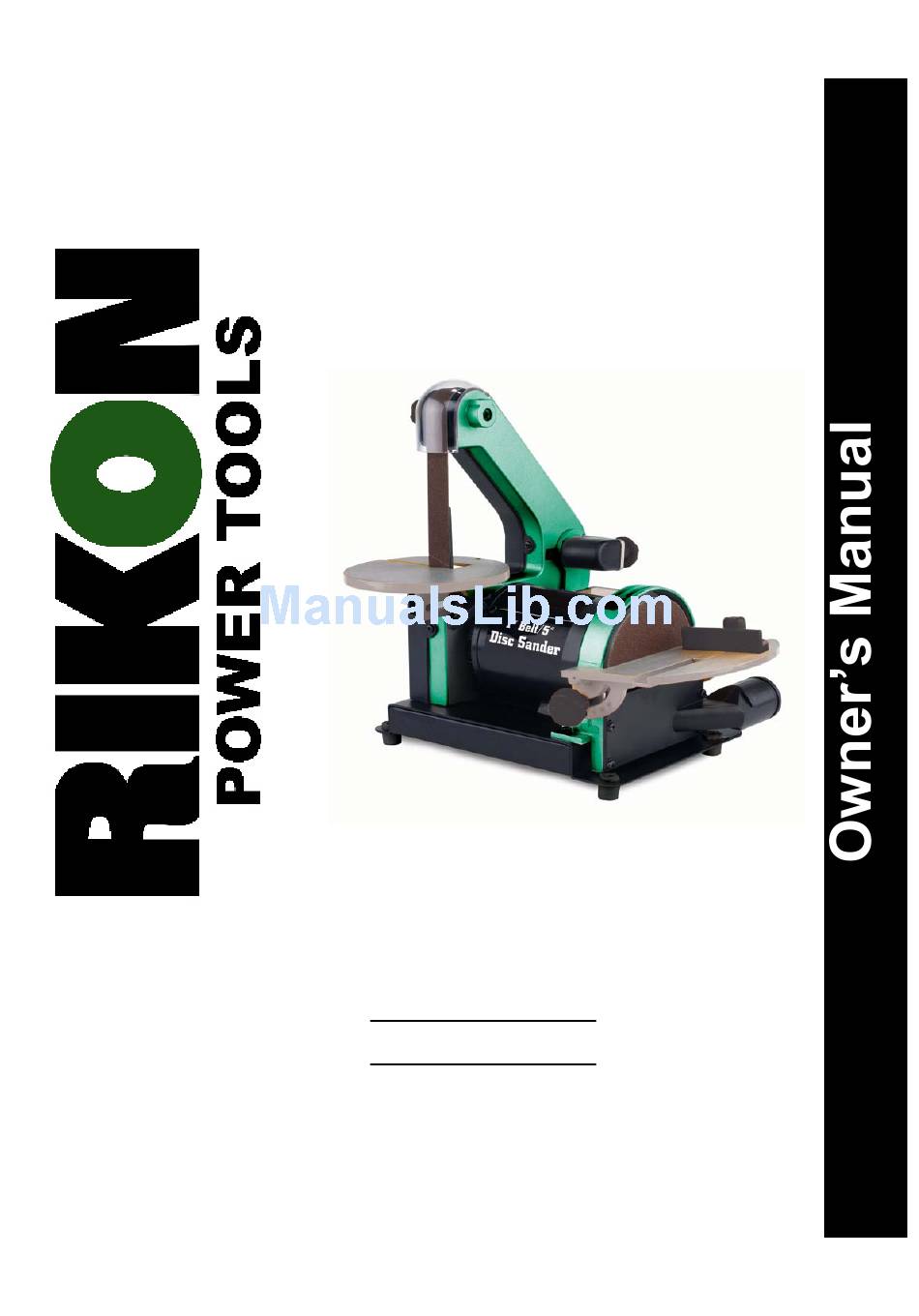

Rikon Power Tools 50-150 Owner's Manual

Rikon Power Tools 50-150 Owner's Manual

1” x 30” belt / 5” disc sander

Advertisement

Quick Links

1" X 30" Belt / 5" Disc Sander
Model: 50-150
Record the serial number and date of purchase
in your manual for future reference.
Serial number:
Date of purchase:
For more information:
www.rikontools.com
info@rikontools.com
or
For Parts or Questions:
techsupport@rikontools.com or 877-884-5167
Part # 50-150M1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rikon Power Tools 50-150

  • Page 1 1” X 30” Belt / 5” Disc Sander Model: 50-150 Record the serial number and date of purchase in your manual for future reference. Serial number: Date of purchase: For more information: www.rikontools.com info@rikontools.com For Parts or Questions: techsupport@rikontools.com or 877-884-5167...
  • Page 2: Safety Warnings

    Operator Safety: Required Reading IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/or used for any other application other than that for which it was designed.
  • Page 3: Sander Safety Rules

    ALWAYS DISCONNECT TOOLS. Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters. ALWAYS AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF” position before plugging in cord. NEVER LEAVE TOOLS RUNNING UNATTENDED. ALWAYS CHECK FOR DAMAGED PARTS. Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it will operate properly and perform its intended function.
  • Page 4: Table Of Contents

    Table of Contents Safety Warnings..........................2-3 Sander Safety Rules ..........................3 Specifications ............................4 Contents of Package ............................5 Assembly ...........................6-9 Electrical Requirements .........................10 General Use......................11 Maintenance ...........................11 Trouble Shooting...............................12-13 Wiring Diagram..........................13 Parts List .............................14 Parts Explosion..........................15 Notes .............................16 Warranty .............................17 Specifications Belt Size 1”...
  • Page 5: Contents Of Package

    Contents of Package When unpacking, check to make sure the following parts are included. If any parts are missing or broken, please call RIKON Power Tools at the number on the cover of this manual as soon as possible. Carton Contents Item Description Belt &...
  • Page 6: Assembly

    Assembly Before You Start – Assembly and Installation WARNING! Always ensure the sander is unplugged prior to attempting any assembly, installation or changing of parts and accessories. Mounting the Sander to the Workbench CAUTION: If during operation there is any tendency for the sander to tip over, slide or walk on the supporting surface, the sander should be properly mounted to a workbench or stand.
  • Page 7 1. Position the disc-sanding table by tipping it up and threading the small nipples on the back side of the ‘angle-gauge’ onto the mounting area of the disc- sander. 2. Align the screw holes so that the screw will travel through the angle-gauge openings on either side of the disc into the mounting holes on the disc sander.
  • Page 8 Removal: 1. Remove and set aside mitre gauge. 2. Completely remove the disc-table adjustment handles. 3. Tip table up and remove. 4. Sanding discs are adhered to the plate using a “pressure-sensitive adhesive”. Remove sanding disc Fig. 08 from disc plate. Installation: 5.
  • Page 9 Belt Tracking The belt-tracking adjustment is set at the factory so that the abrasive belt will run true on the pulleys. If, however, the belt should track to one side or the other, an adjustment can be made by turning the tracking knob, which is located on the back side of the ma- chine.
  • Page 10: Electrical Requirements

    Electrical Requirements In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 11: General Use

    General Usage and Maintenance General Usage and Operating Instructions ON/OFF On/Off Switch The rocker ON/OFF power switch is located on the top of the sander. 1. Press the side marked ON to turn the sander on. 2. Press the side marked OFF to turn the sander off. Operating Instructions –...
  • Page 12: Troubleshooting

    Troubleshooting Service on these tools should only be performed by an authorized, qualified technician. SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Sanding grains easily rub 1. Sanding belt/disc has been 1. Ensure sanding accessories are off belt or discs. stored in an incorrect environ- stored away from extremely hot ment.
  • Page 13: Wiring Diagram

    SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Motor stalls (resulting in 1. Short circuit in motor or loose 1. Inspect connections on motor blown fuses or tripped connections. for loose or shorted terminals circuit). 2. Low voltage. or worn insulation. (Send for 3.
  • Page 14: Parts List

    Parts List Descriptions Descriptions Number Number Hex Bolt M8X20 Hex Bolt M10X25 Spring Washer Sanding Belt Support Flat Washer Hex Socket Screw M6X20 Belt Sanding Table Rubber Foot Base Large Flat Washer Rubber Motor Pad Locking Knob Assy Philips Screw M5X10 Adjusting Shaft Guard Philips Screw...
  • Page 15: Parts Explosion

    Parts Explosion...
  • Page 16: Notes

    Notes...
  • Page 17: Warranty

    Warranty 5-Year Limited Warranty RIKON Power Tools, Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred.
  • Page 18 For more information: 16 Progress Road Billerica, MA 01821 877-884-5167 / 978-528-5380 techsupport@rikontools.com www.rikontools.com Copyright RIKON Power Tools, Inc. 2009...
