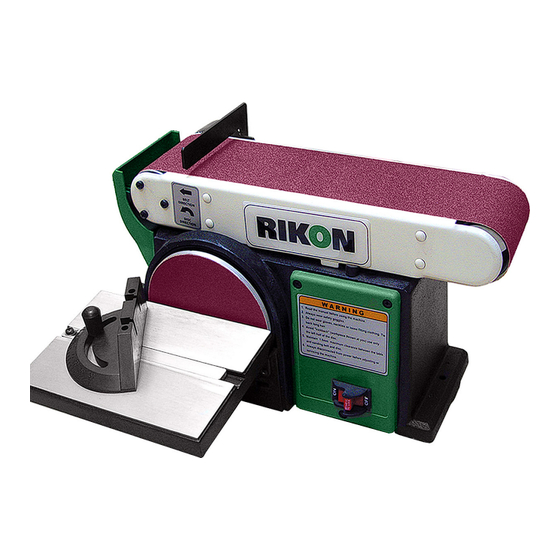

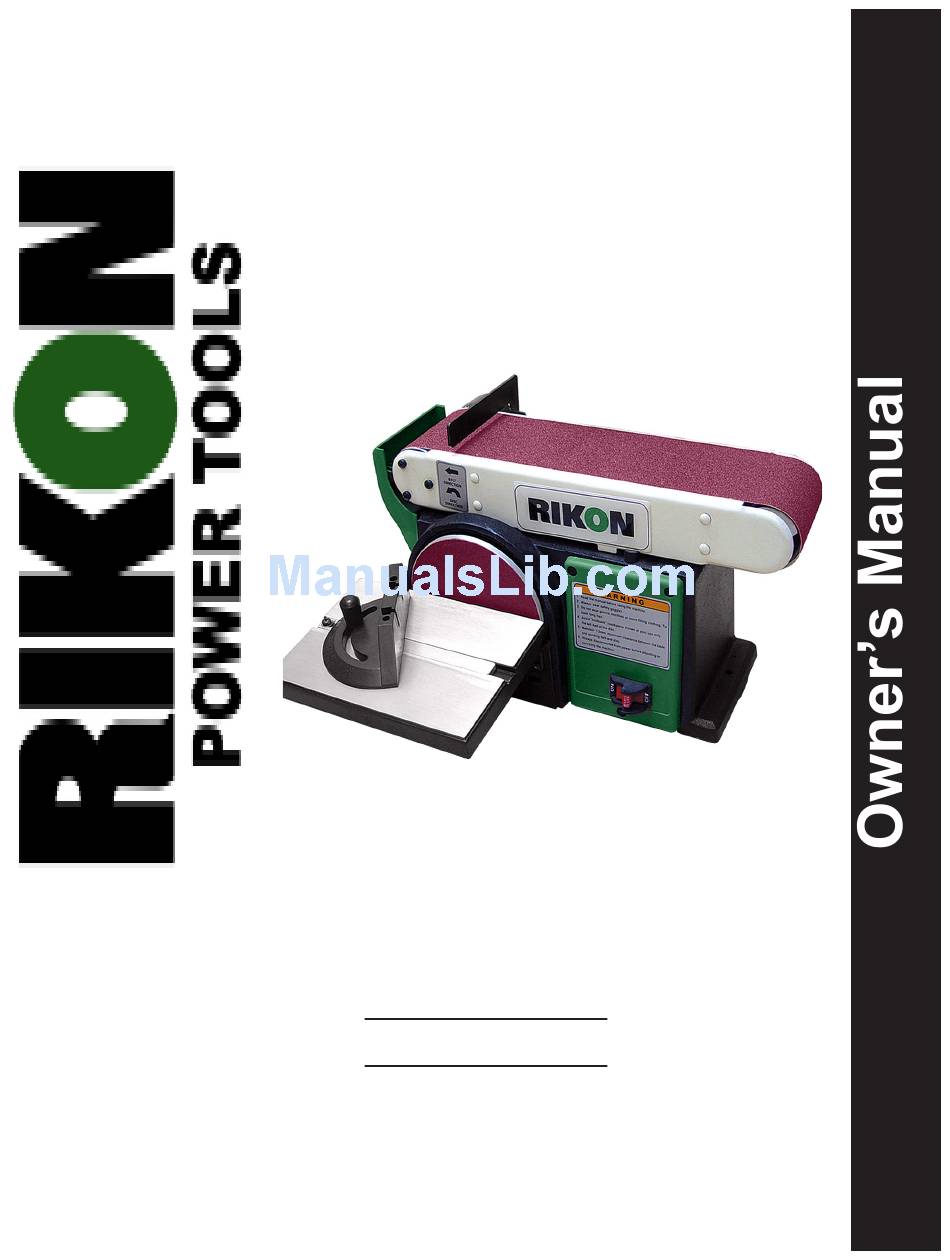

4" X 36"Belt & 6"Disc Sander
Model: 50-110
Record the serial number and date of purchase
in your manual for future reference.
Serial number:
Date of purchase:
For more information:
www.rikontools.com
info@rikontools.com
or
For Parts or Questions:
techsupport@rikontools.com or 877-884-5167
Part # 50-110M2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rikon Power Tools 50-110
Summary of Contents for Rikon Power Tools 50-110
- Page 1 4” X 36”Belt & 6”Disc Sander Model: 50-110 Record the serial number and date of purchase in your manual for future reference. Serial number: Date of purchase: For more information: www.rikontools.com info@rikontools.com For Parts or Questions: techsupport@rikontools.com or 877-884-5167 Part # 50-110M2...
-
Page 2: Safety Warnings
Operator Safety: Required Reading IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/or used for any other application other than that for which it was designed. -
Page 3: Sander Safety Rules
ALWAYS DISCONNECT TOOLS. Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters. ALWAYS AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF” position before plugging in cord. NEVER LEAVE TOOLS RUNNING UNATTENDED. ALWAYS CHECK FOR DAMAGED PARTS. Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it will operate properly and perform its intended function. -
Page 4: Table Of Contents
37 lbs Unpacking When unpacking, check to make sure the following parts are included. If any parts are missing or broken, please call RIKON Power Tools at the number on the cover of this manual as soon as possible. Item #... -
Page 5: Assembly
Assembly Securing Sander Base Assembly to Workbench The Sander Base must be secured before using. Attach a large C-Clamp to each side of the sander and the workbench. Or, permanently mount following the instructions below: 1. Place the sander on the workbench in its proper operating position. -
Page 6: Installing The Table Assembly
Installing the Table Assembly 1. Locate the Table Support (36) and mounting hex screws (6) and washers (7 and 8). 2. Stand Table (35) on its side, align holes. 3. Fasten Table Support to Table. Do not over tighten screws. Fig. -
Page 7: Leveling The Table Assembly
Leveling Table Assembly 1. Place a combination square on the Table (35) so that it also touches the sanding Disc (27). (See Fig. 08) If the Table is 90 degrees to the Disc, no adjustments are needed. 2. If the Table is not 90 degrees with the Disc, loosen the table lock Knob (1) and tilt the Table Fig. -
Page 8: Operation
8. If the Sanding Belt (10) moves away from the Sanding Disc (27) when it was turned on, turn the tracking Knob (1) counter clockwise Ľ turn, and test again. (See Fig. 12) Fig. 12 Operation Operation Warning: Disconnect machine from power supply before making any adjustments. -
Page 9: Electrical Requirements
Electrical Requirements In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 10: Maintenance
Maintenance 1. Apply a light coat of paste wax to the worktable to make feeding stock easier. 2. Use compressed air to blow out dust and debris from sander and motor. (See Fig. 16) Oil Sleeve Bearings Oil sleeve bearings after each 10 hours of use with 30 weight oil. -
Page 11: Troubleshooting
Troubleshooting Wiring Diagram... -
Page 12: Parts List
Parts List Item # Description Item # Description Knob Label, Scale Washer, Rubber Cord w/ Plug Washer, Notched Motor (1/3 HP) Connector, Wire Screw, Flat Cross, M5x0.8-35 Nut, Hex M6x1.0 Screw, Hex M6x1.0-14 Base Lockwasher, Helical M5 Belt, Timing Drive Washer, 6.5x17.8x1.6 Screw, Flat Cross M5x0.8-10 Support, Work... -
Page 13: Parts Explosion
Parts Explosion... -
Page 14: Notes
Notes... -
Page 15: Warranty
Warranty 2-Year Limited Warranty RIKON Power Tools Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of two (2) years from the date the product was purchased at retail. This warranty may not be transferred. - Page 16 For more information: 16 Progress Rd. Billerica, MA 01821 877-884-5167/978-528-5380...
