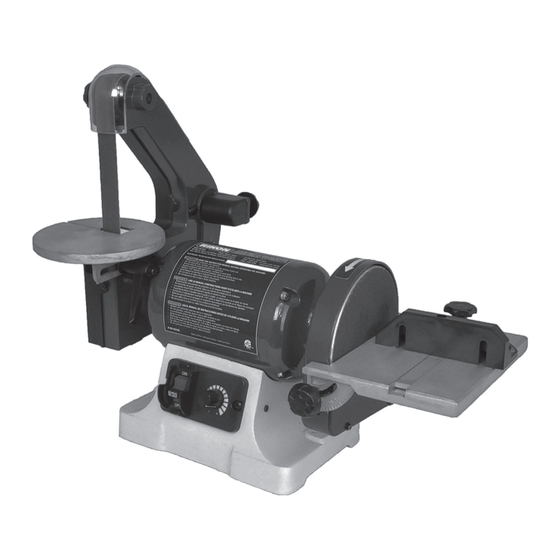

50-161VS
1" x 30" Belt / 6" Disc
Variable Speed Sander
Operator's Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________
Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877) 884-5167
www.rikontools.com
50-161VSM2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rikon Power Tools 50-161VS
Summary of Contents for Rikon Power Tools 50-161VS

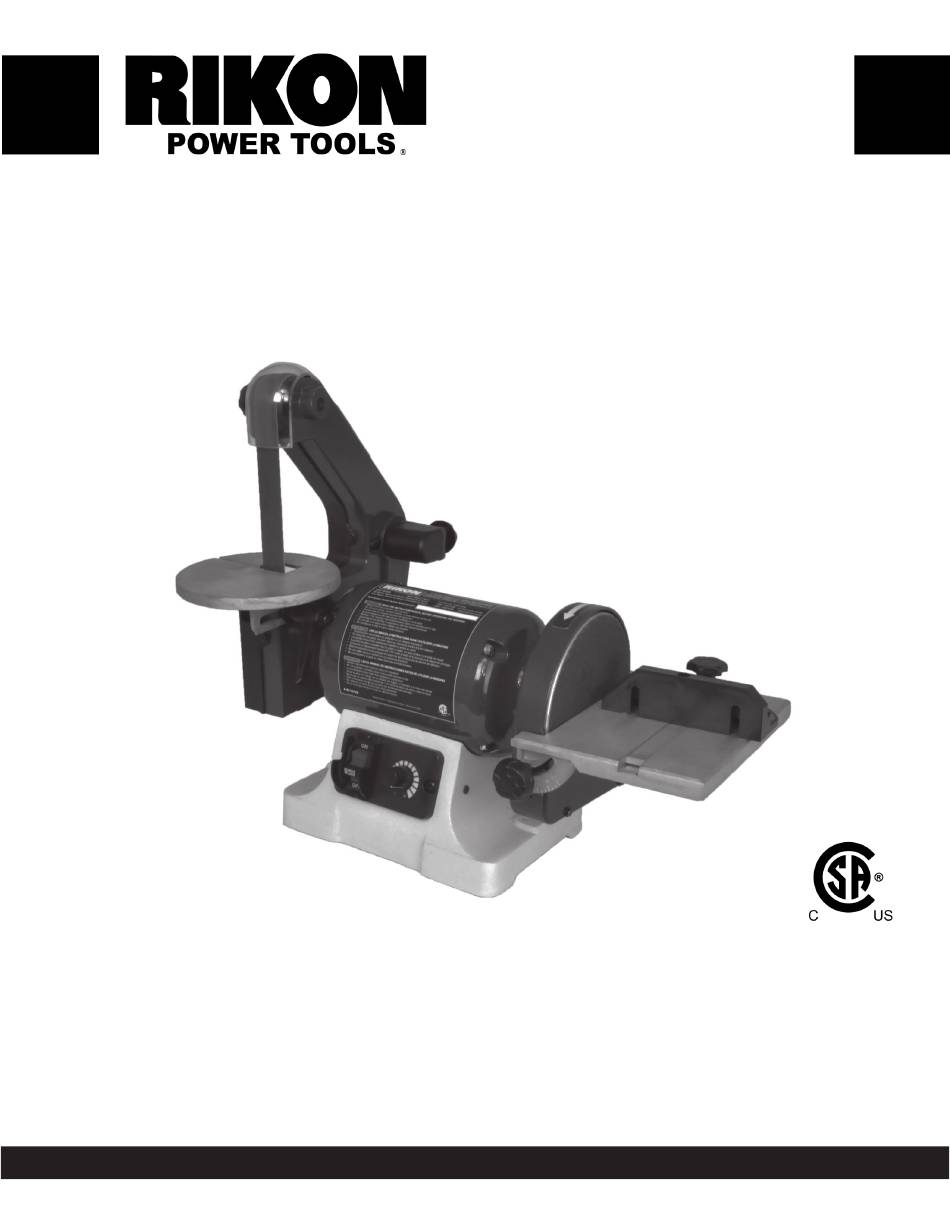

- Page 1 50-161VS 1” x 30” Belt / 6” Disc Variable Speed Sander Operator’s Manual Record the serial number and date of purchase in your manual for future reference. Serial Number: _________________________ Date of purchase: _________________________ For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877) 884-5167 www.rikontools.com...
-
Page 2: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of RIKON Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and... - Page 3 SAFETY SYMBOLS IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. There are certain applications for which this tool was designed.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS 12. KEEP PROTECTIVE GUARDS IN PLACE AND IN 25. ALWAYS WEAR A DUST MASK TO PREVENT WORKING ORDER. INHALING DANGEROUS DUST OR AIRBORNE PARTICLES, including wood dust, crystalline silica dust 13. AVOID ACCIDENTAL STARTING. Make sure that and asbestos dust. Direct particles away from face and the power switch is in the “OFF”... - Page 5 SAFETY INSTRUCTIONS EXTENSION CORDS ELECTRICAL SAFETY THE USE OF AN EXTENSION CORD THIS TOOL MUST BE GROUNDED WITH THIS MACHINE IS NOT RECOMMENDED. For WHILE IN USE TO PROTECT THE OPERATOR FROM best power and safety, plug the machine directly into a ELECTRIC SHOCK.
- Page 6 SAFETY INSTRUCTIONS SPECIFIC SAFETY INSTRUCTIONS FOR SANDERS This machine is intended for the surfacing of natural, solid woods and composite materials. Any other use not as specified, including modification of the machine or use of parts not tested and approved by the equipment manufacturer can cause unforeseen damage, and invalidate the warranty.
-
Page 7: Contents Of Package
CONTENTS OF PACKAGE UNPACKING AND CLEAN-UP 1. Carefully remove all contents from the shipping carton. Compare the contents with the list of contents to make sure that all of the items are accounted for, before discarding any packing material. Place parts on a protected surface for easy identification and assembly. -
Page 8: Getting To Know Your Sander
GETTING TO KNOW YOUR SANDER 50-161VS 1” x 30” Belt / 6” Disc Variable Speed Sander Sanding Belt 1” x 30” Sanding Disc 6” (PSA) Sanding Belt Tracking Knob Sanding Belt Safety Cover Sanding Belt Table Platen for Sanding Belt... -
Page 9: Assembly
ASSEMBLY THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL FULL ASSEMBLY AND ALL ADJUSTMENTS ARE COMPLETE. Lag Bolt Machine Bolt MOUNTING THE SANDER TO A WORKBENCH Washer CAUTION: If during operation there is any tendency for the sander to tip over, slide or walk on the Machine Base supporting surface, the sander should be properly... - Page 10 ASSEMBLY & ADJUSTMENTS ASSEMBLING THE SANDING DISC TABLE THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE 1. Attach the disc-sanding table (#38) to the sanding IN THE OFF POSITION UNTIL FULL ASSEMBLY AND disc guard (#16) by tipping the table up, and slide ALL ADJUSTMENTS ARE COMPLETE.
-
Page 11: Adjustments
ADJUSTMENTS DISC TABLE ADJUSTMENTS - continued 2. Loosen the 2 disc-table adjustment handles (#39), and adjust table angle to 90º. 3. Re-tighten the 2 disc-table adjustment handles. 4. To adjust the disc-table to another angle, loosen the 2 disc-table adjustment handles. 5. - Page 12 ADJUSTMENTS INSTALLING & CHANGING SANDING BELTS THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN SANDING BELT REMOVAL: THE OFF POSITION UNTIL FULL ASSEMBLY AND ALL 1. Remove the top lock-knob (#52), clear plastic belt ADJUSTMENTS ARE COMPLETE.
-
Page 13: General Use
GENERAL USAGE ON/OFF & VARIABLE SPEED SWITCHES 1. To start the sander, the Power Switch must be in the “OFF” position and the Variable Speed Switch must be turned to its slowest setting by turning it all the way to the left until solid resistance is felt. FIG. L. 2. -
Page 14: Troubleshooting
TROUBLESHOOTING Service on these tools should only be performed by an authorized, qualified technician. SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Motor will not start. 1. Low voltage 1. Check power source for proper voltage. 2. Open circuit in motor or loose 2. -
Page 15: Maintenance
TROUBLESHOOTING SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Burn marks on workpiece. 1. Using a sanding grit that is too 1. Use a coarser-grit sandpaper. fine. 2. Reduce work piece pressure on 2. Using too much pressure. the sandpaper while sanding. 3. Work held still for too long 3. -
Page 16: Wiring Diagram
® RIKON Power Tools Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. -
Page 17: Parts Diagram
PARTS DIAGRAM... -
Page 18: Parts List
PARTS LIST DESCRIPTION QTY. PART NO. Phillips screw+flat washer M5x16 P50-161VS-1 Rubber foot P50-161VS-2 Bottom plate P50-161VS-3 P50-161VS-4 Phillips screw ST2.9x5 P50-161VS-5 PCB plate P50-161VS-6 Hex bolt+spring washer M8x22 P50-161VS-7 Hex screw M5 P50-161VS-8 Hex screw M5 P50-161VS-9 Phillips screw M4x8 P50-161VS-10 Cord fixing plate P50-161VS-11... -
Page 19: Accessories
PARTS LIST DESCRIPTION QTY. PART NO. P50-161VS-56 Phillips screw+lock washer M5x16 left P50-161VS-57 Drive wheel P50-161VS-58 Hex nut M8 P50-161VS-59 Belt support P50-161VS-60 Hex nut M6 P50-161VS-61 Hex screw M6x20 P50-161VS-62 Belt work table Locking knob P50-161VS-63 P50-161VS-64 Big flat washer φ8 P50-161VS-65 Dust port adapter Hex screw M6x8... - Page 20 50-161VS For more information: 25 Commerce Way North Andover, MA 01845 877-884-5167 / 978-528-5380 techsupport@rikontools.com www.rikontools.com 50-161VSM2...
