- Page 1 User Manual PCE-RT 1200 / PCE-RT 2000 Roughness Tester User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 5 July 2018 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Contents Safety notes ................... 1 Specifications ..................2 Technical specifications of the PCE-RT 1200 ..............2 Technical specifications of the PCE-RT 2000 ..............3 Optional accessories ......................4 System description ................4 Device ..........................5 Interfaces ......................... 5 Display ..........................6 Function keys .................. -
Page 3: Safety Notes
Safety notes Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
Specifications Technical specifications of the PCE-RT 1200 2.1.1 Sensor Testing principle Inductance Type 200 μm Measurement Range 5 μm Stylus tip radius Stylus tip material Diamond Maximum recommended static measuring 4 mN (0.4 gf) force Conical stylus with spherical tip angle 90 °... -
Page 5: Technical Specifications Of The Pce-Rt 2000
Technical specifications of the PCE-RT 2000 2.2.1 Sensor Testing principle Inductance Type 200 μm Measurement Range 5 μm Stylus tip radius Stylus tip material Diamond Maximum recommended static measuring 4 mN (0.4 gf) force Conical stylus with spherical tip angle 90 °... -
Page 6: Optional Accessories
Optional accessories 2.3.1 Measurement platform Use the measurement platform to easily adjust the position between the instrument and the workpiece to be measured. This ensures a more flexible and stable operation and creates a bigger use scope and measures the roughness on the surface of complex shape parts. When the platform is used the needle position can be adjusted more precisely and it measures more smoothly. -
Page 7: Device

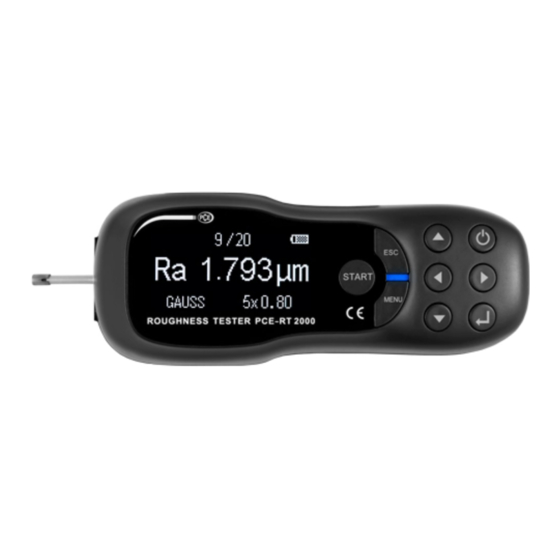

Device Screen Start key Esc key Up key Left key Power key Right key Enter key Down key 10. Menu key Guide Stylus tip Main body Cover Plug Interfaces Battery switch USB interface © PCE Instruments... -
Page 8: Display
Display Record number Result Parameter GAUSS Filter Battery condition Unit Evaluation length Sampling length Function keys Name Function “Start” key Measurement will start “Esc” key The menu will return to the upper level “Up” key Cursor moves up “Left” key Cursor moves to the left “Power”... -
Page 9: Getting Started
Getting started Power supply 5.1.1 Power on When the device is in standby mode, hit the “Power”-key to start the instrument and enter the main menu. NOTE: The battery switch has to be set to “ON”. 5.1.2 Power off When the device is switched on, hit the “Power”-key to put the device into standby mode. NOTE: If the instrument is not used for a longer period of time, please set the battery switch to “OFF”. -
Page 10: Operation
Make sure that the instrument correctly placed on the workpiece surface that needs to be tested (figures below) front view side view The sensor movement must be vertical to the tested surface (figure below) If measurements are not performed the correct way, the sensor and the device may suffer damage. -
Page 11: Further Functions
Further functions 6.2.1 Data management When the instrument shows the main screen, hit “Menu”-key to enter main menu. Choose the submenu “Data”. If this is done the display shows the data management. Use the “Up” or “Down” keys to either choose “Test Data” or “Clear Data” and confirm your choice by hitting the “Enter”-key. - Page 12 6.2.4 Stylus Position Go to the main menu and then choose the submenu “Function” and select the point “Stylus Position”. Set the desired position. When this is done hit the “Esc”-key to return to the level above. 6.2.5 Automatic shutdown Enter the main menu, select “Function”...
-
Page 13: Settings
Settings 6.3.1 Measurement settings Enter the main menu and select “Config” Use the “Up” or “Down” key to select the parameters that you want to change. You will be able to set the parameters, the sampling length and the evaluation length. The selected object will be highlighted black. -
Page 14: Calibration
Calibration Result calibration Enter the main menu, choose “Function” and choose “Result Correct”. Use the “Up” or “Down” key to set your desired value. Confirm your setting using the “Enter”-key. Hit “Esc”-key to return to the main menu. Stylus correct Enter the main menu and select “Stylus Correct”. -
Page 15: Warranty
Warranty You can read our warranty terms in our General Business Terms which you can find here: https://www.pce-instruments.com/english/terms. Disposal For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament applies. Due to the contained pollutants, batteries must not be disposed of as household waste. They must be given to collection points designed for that purpose. - Page 16 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 SOULTZ-SOUS-FORETS 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel.
