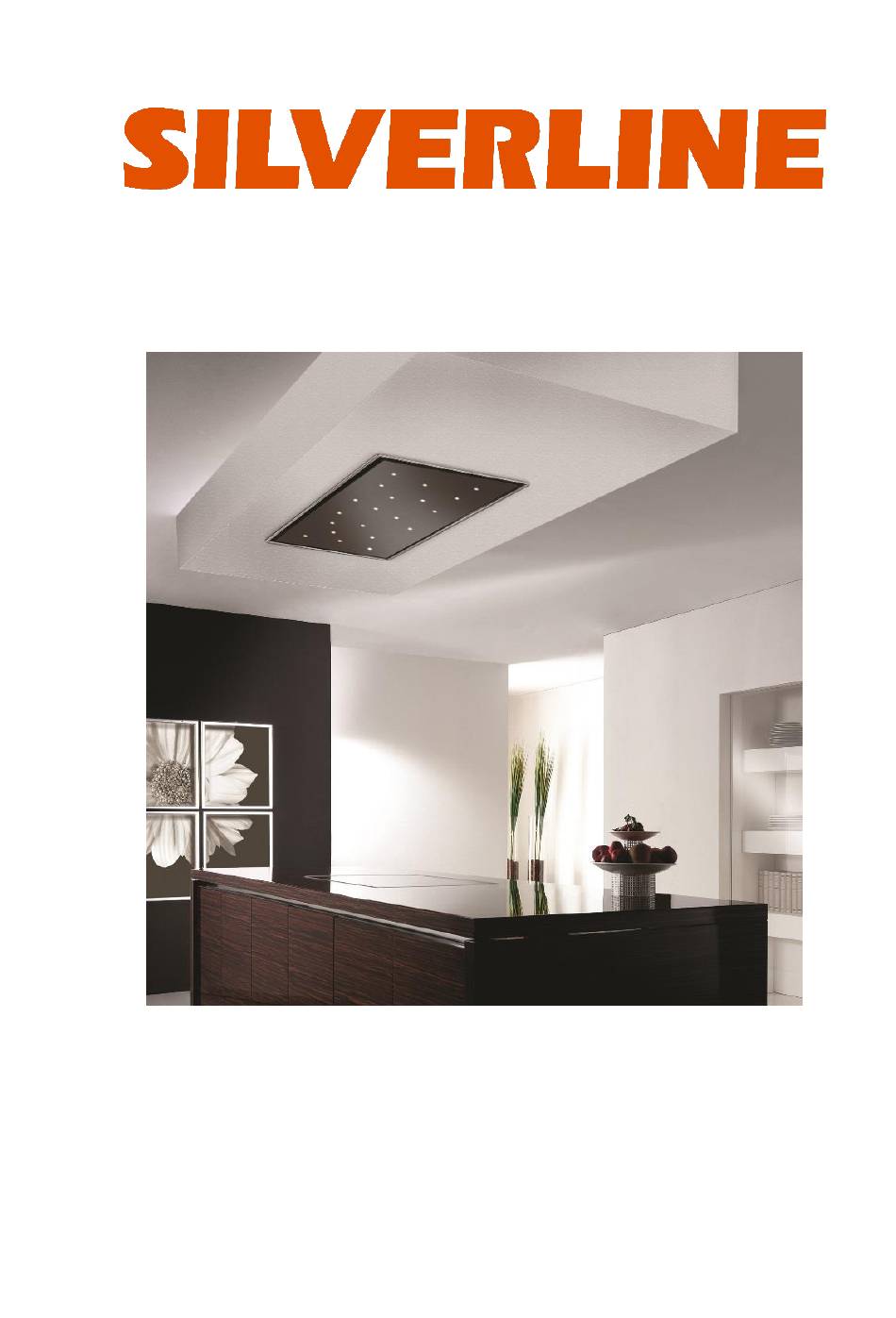

- Page 1 Derwent 90cm Ceiling Hood Installation & User Instructions Please read these instructions carefully before installing and operating this appliance...
-
Page 2: Table Of Contents
3.4 Electrical Wiring 3.4.1 Electrical Wiring Diagram 3.4.2 Controls 4. Use & Maintenance 4.1 Cleaning the Metal Filters 4.2 Cleaning the Hood 5. Technical Data 6. Dimensions 9-11 6.1 Derwent 90cm Ceiling Hood 9-10 6.2 1240 T1 Motor 6.3 1250 T2 Motor... -
Page 3: Introduction
Dear Customer, regulations in force in your local area, region and country. We wish to thank you for choosing this Silverline For the correct use of the appliance and to cooker hood. In order to get the best performance... -
Page 4: Installation
Oil that has been used twice and fats are very dangerous The Derwent has 4 hanger hooks at each corner to and could easily catch fire. Do not prepare secure the hood to the ceiling (Fig 1). -
Page 5: Ducting Options
Fig 5 3.3 Motor Options Put the Derwent up into the ceiling (Fig 6). The Derwent ceiling hood can be fitted with either the 1240 T1 750m /h motor or the 1250 T2 1400m motor. This can be installed anywhere along the ducting but no more than 6m away. -
Page 6: Electrical Wiring
Mount the rigid ducting onto the plastic provide a device that ensures disconnection from the connector of the hood (Fig 10). electrical mains, with an opening distance of the contacts that allows the complete disconnection under the conditions of overvoltage category III, in accordance with the rules of installation. -
Page 7: Electrical Wiring Diagram
3.4.1 Electrical Wiring Diagram Mains Supply Brown White Motor Yellow Grey Black Blue Lights Brown... -
Page 8: Controls
3.4.2 Controls 4.2 Cleaning the Hood The Derwent ceiling hood is controlled by remote The surfaces of the hood should be cleaned control. This allows the user to control the hoods frequently, to avoid the risk of having to remove built on/off functions, lights and the 4 motor speeds. -
Page 9: Dimensions
6. Dimensions 6.1 Derwent 90cm Ceiling Hood... -
Page 10: 1240 T1 Motor
6.2 1240 T1 Motor... -
Page 11: 1250 T2 Motor
6.3 1250 T2 Motor...
