Routing Wire
Perform the following steps to route a jumper wire pair:

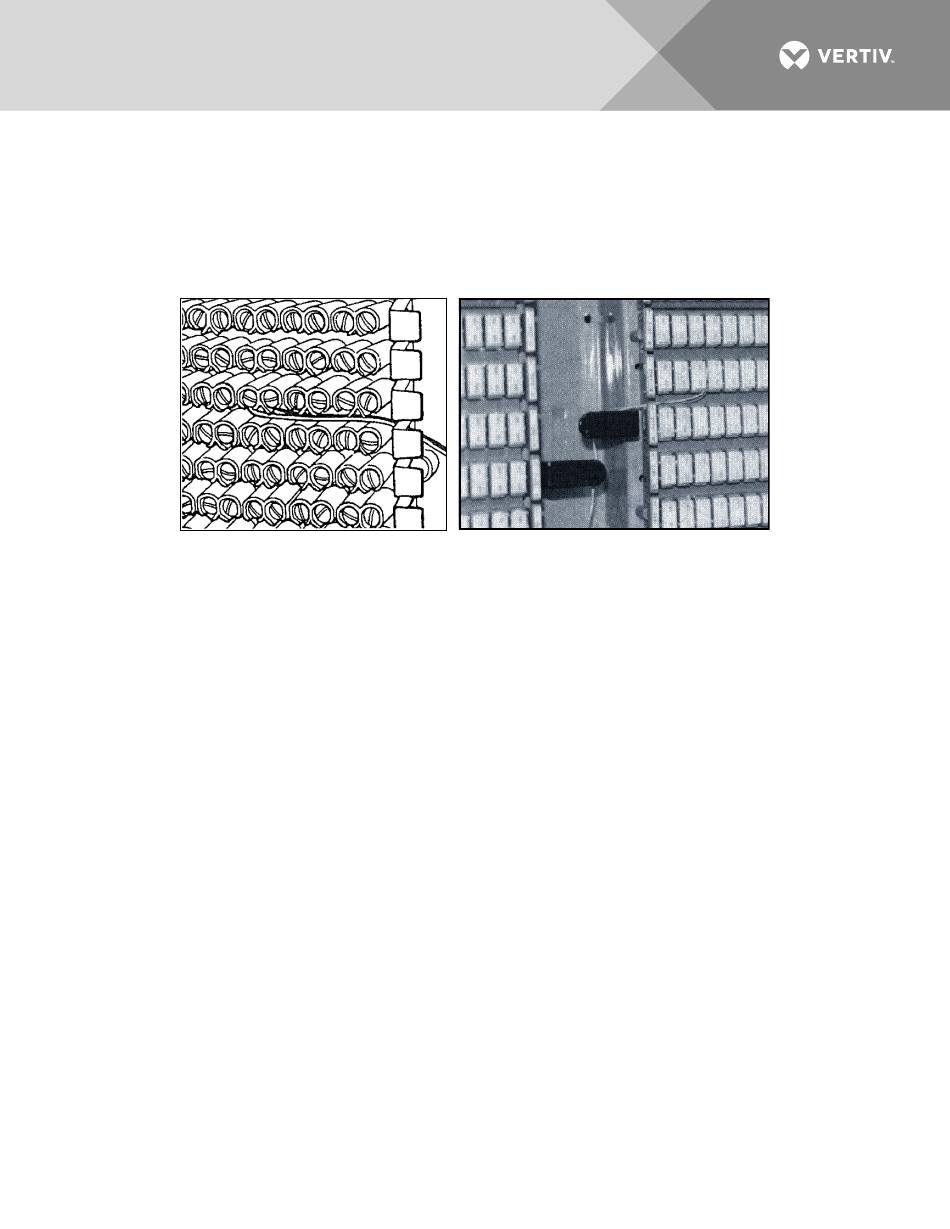

Route the wires horizontally between the activator rows to the wiring trough (see Figure 11).
1.
Figure 11:
Routing Wire
2.
Place the wire behind the wire retainers at the sides or bottom of the terminal field, and make a finger
loop in the wire to provide enough slack to trace the wires when necessary.
3.
Route the cross-connecting jumper wire to the assigned distribution post or activator and cut to
required length.
4.
Terminate the jumper wire pair on the distribution field as you did on the feeder field.
