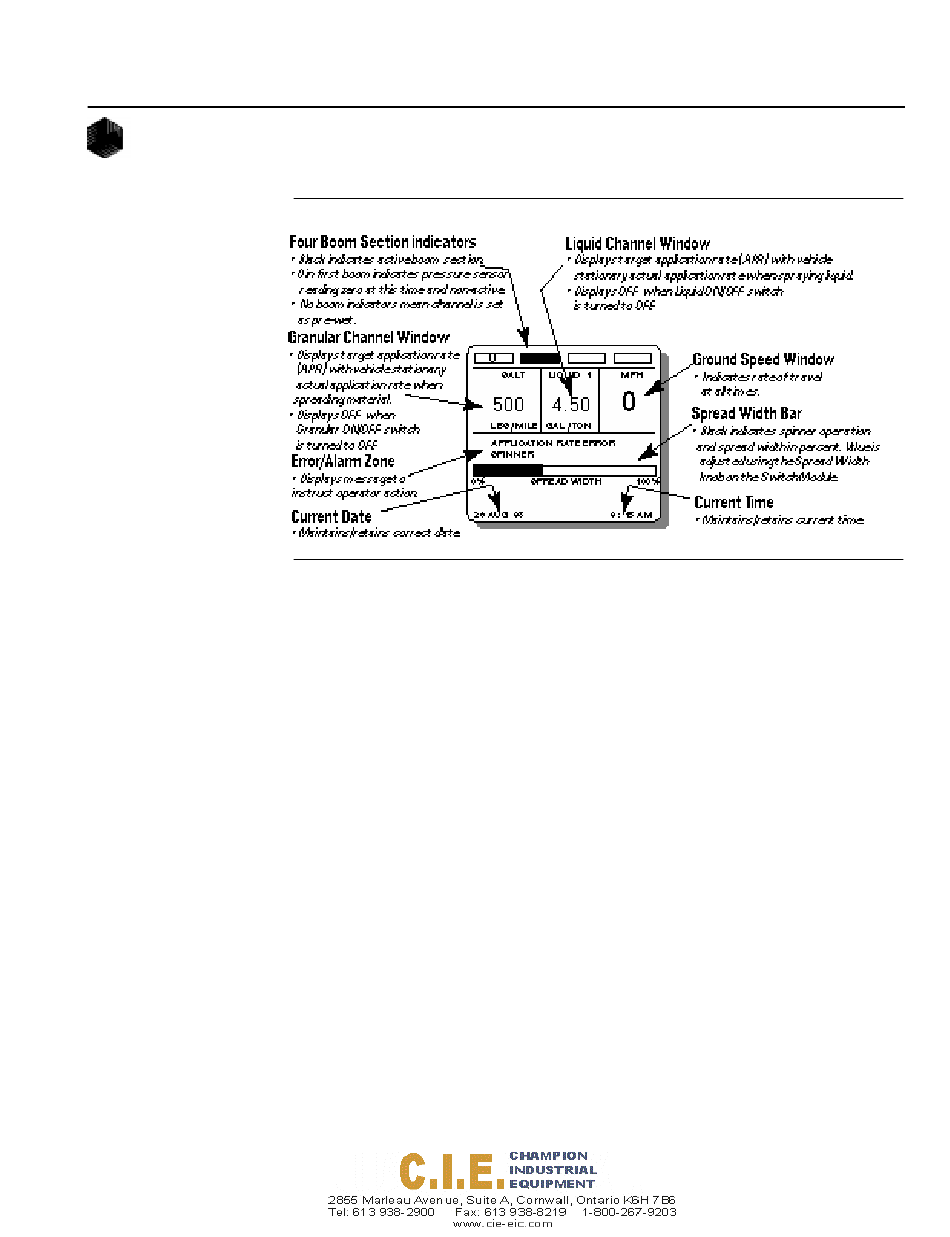

Figure 6. Divisions of the OPERATE Screen
OBSERVING THE OPERATE SCREEN DIVISIONS
1. Study the OPERATE screen layout (See Figure 6).
Three windows across the upper portion display Granular, Liquid,
and true (actual) Ground Speed data. Directly above, status of the
booms graphically display. Below the windows, error messages
appear briefly for system errors along with an audible alarm. In the
lower third, the Spread Width Bar graphically indicates percentage
of spinner activity via a black bar. At the bottom, the current date
and time display.
2. At the Switch Module, turn the Granular and Liquid ON/OFF
switches off, then back on again (See Figure 3).
Notice, the window for each product reads OFF and then returns to
the material and target (APR) values again.
Ground speed is independent of product application and therefore
displays only when the vehicle is moving.
Product application begins with vehicle motion if the Master Switch
is in the AUTO position. The actual APRs display in roughly twice
the size of the target APRs (See Figure 7).
3. Change the target rate of either product channel by pressing
the respective "INC/DEC +/-" switch on the Switch Module.
The value increments/decrements as a beep is heard for each inc/
des step. If the switch is held, the value repeats until reaching a
preset limit. If changed while the vehicle is moving, the new target
APR displays for approximately two seconds, then reverts to the
actual APRs.
OPERATING PROCEDURES/ 9
